Oil Pan: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

4x2/4x4

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Remove the engine oil filter and drain the engine oil. Refer to: Engine Oil Draining and Filling .
  4. Remove the oil level indicator.
    GFD458933Courtesy of FORD MOTOR COMPANY
  5. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD458934Courtesy of FORD MOTOR COMPANY
  6. NOTE: If equipped.

    Remove the fasteners and the underbody shield.

    GFD458935Courtesy of FORD MOTOR COMPANY
  7. NOTE: If equipped.

    Remove the fasteners and the underbody shield.

    GFD458868Courtesy of FORD MOTOR COMPANY
  8. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD458869Courtesy of FORD MOTOR COMPANY
  9. Remove and discard the stabilizer bar bracket nuts.

    • Allow the stabilizer bar to swing downward.

    GFD458904Courtesy of FORD MOTOR COMPANY
  10. Remove the nuts, bolts and the crossmember.
    GFD458936Courtesy of FORD MOTOR COMPANY

    4x4

  11. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    GFD458871Courtesy of FORD MOTOR COMPANY
  12. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD458872Courtesy of FORD MOTOR COMPANY
  13. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.
    NOTE: Front drive shaft removed from graphic for clarity.

    Remove and discard the LH engine mount through bolt.

    GFD458882Courtesy of FORD MOTOR COMPANY
  14. NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

    Remove and discard the RH engine mount nuts.

    • Remove the studs.

    GFD458881Courtesy of FORD MOTOR COMPANY
  15. Using an adjustable stand, raise the engine 50 mm (2 in). Use the General Equipment: Vehicle/Axle Stands
    GFD458883Courtesy of FORD MOTOR COMPANY
  16. Install a 38 mm (1.5 in) X 38 mm (1.5 in) X 76 mm (3 in) wood block between the RH engine mount and the frame perch.
    GFD458937Courtesy of FORD MOTOR COMPANY
    1. Using the adjustable stand, lower the engine onto the wood block. Use the General Equipment: Vehicle/Axle Stands
    2. Remove the stand.
    GFD458890Courtesy of FORD MOTOR COMPANY
  18. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD458607Courtesy of FORD MOTOR COMPANY
    1. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Remove and discard the steering column shaft bolt.

    2. Separate the steering column shaft U-joint from the steering gear.
    GFD458873Courtesy of FORD MOTOR COMPANY
  20. Remove the steering gear boot.
    GFD458874Courtesy of FORD MOTOR COMPANY
  21. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands
    GFD458875Courtesy of FORD MOTOR COMPANY

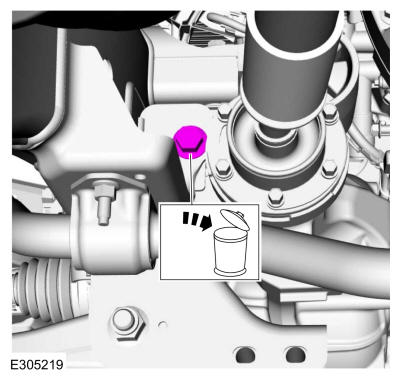

  22. Remove and discard the lower front axle carrier mounting bushing bolt.
    GFD458938Courtesy of FORD MOTOR COMPANY
  23. Remove and discard the axle shaft housing carrier mounting bushing nut and the bolt.
    GFD458877Courtesy of FORD MOTOR COMPANY
  24. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    GFD458878Courtesy of FORD MOTOR COMPANY
  25. NOTE: The axle can rest on the frame and the stand can be removed if necessary.

    Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands

    GFD458879Courtesy of FORD MOTOR COMPANY

    4x2/4x4

    1. Remove the pin-type retainer.
    2. Remove the bolt and ground wire.
    GFD458939Courtesy of FORD MOTOR COMPANY
    1. Remove the wiring harness retainer nut.
    2. Remove the pin-type retainer.
    GFD458940Courtesy of FORD MOTOR COMPANY
  28. Remove the transmission fluid cooler tube bracket nut.
    GFD458941Courtesy of FORD MOTOR COMPANY
  29. Detach the retainer from the oil pan and position the coolant tubes aside.
    GFD458942Courtesy of FORD MOTOR COMPANY
  30. Remove the oil pan bolts.
    GFD458943Courtesy of FORD MOTOR COMPANY
    1. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine.
    2. NOTE: Do not reuse the oil pans sealed by Motorcraft® High Performance Engine RTV Silicone. Oil pans sealed by Motorcraft® High Performance Engine RTV Silicone are to be removed and discarded. The replacement oil pan will have a press-in-place gasket.

      Remove and discard the oil pan if it is sealed with Motorcraft® High Performance Engine RTV Silicone.

    GFD458944Courtesy of FORD MOTOR COMPANY
  32. If equipped, remove and discard the oil pan press-in-place gasket.
    GFD458945Courtesy of FORD MOTOR COMPANY
  33. Remove and discard the oil pump seal.
    GFD458946Courtesy of FORD MOTOR COMPANY
  34. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD458947Courtesy of FORD MOTOR COMPANY
