Oil Pan: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

  1. Install a new oil pump seal.
    GFD458948Courtesy of FORD MOTOR COMPANY
  2. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 minutes of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

    1. Install a new oil pan press-in-place gasket.
    2. Apply a 18 mm (0.708 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder block joint areas on the oil pan.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD458949Courtesy of FORD MOTOR COMPANY
  3. Install the oil pan and the bolts.

    Torque: Stage 1: 31 lb.in (3.5 Nm) | Stage 2: 89 lb.in (10 Nm)

    Fig 1: Oil Pan Tightening Sequence
    GFD458950Courtesy of FORD MOTOR COMPANY

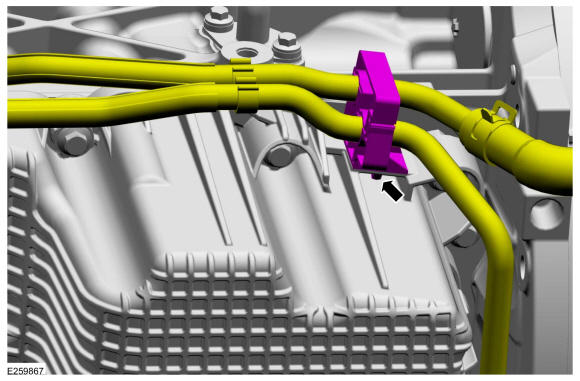

  4. Attach the coolant tube retainer to the oil pan.
    GFD458942Courtesy of FORD MOTOR COMPANY

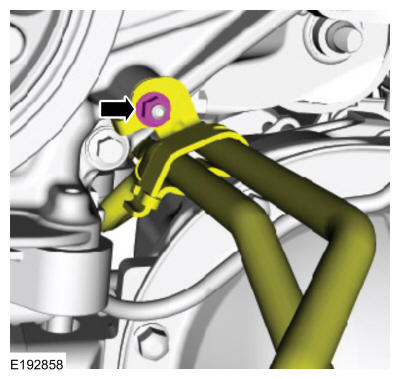

  5. Install the transmission fluid cooler tube bracket nut.

    Torque: 106 lb.in (12 Nm)

    GFD458941Courtesy of FORD MOTOR COMPANY

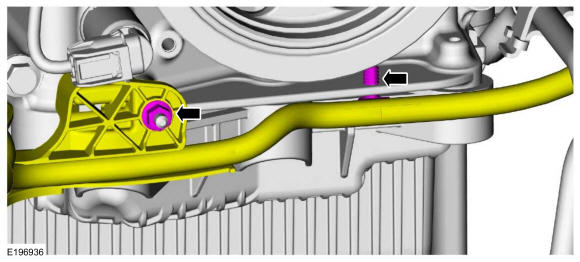

    1. Install the wiring harness retainer nut.

      Torque: 106 lb.in (12 Nm)

    2. Install the pin-type retainer.
    GFD458940Courtesy of FORD MOTOR COMPANY

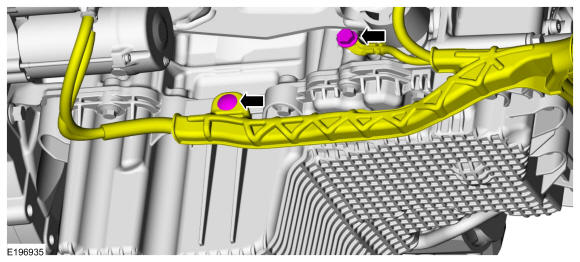

    1. Install the pin-type retainer.
    2. Install the ground wire and bolt.

      Torque: 18 lb.ft (25 Nm)

    GFD458939Courtesy of FORD MOTOR COMPANY

    4x4

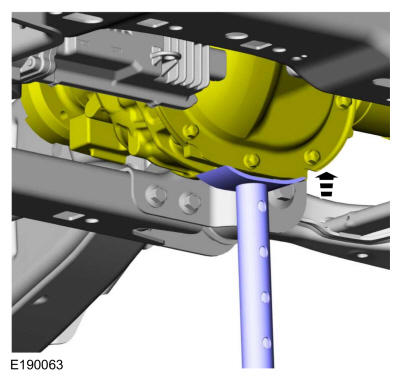

  6. Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands
    GFD458896Courtesy of FORD MOTOR COMPANY

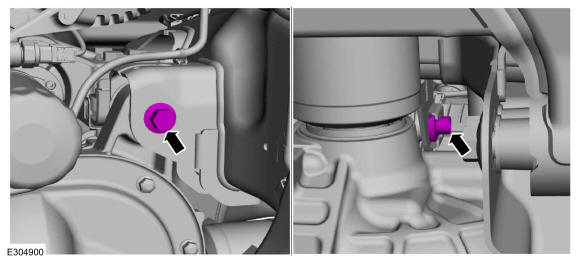

  7. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    GFD458951Courtesy of FORD MOTOR COMPANY

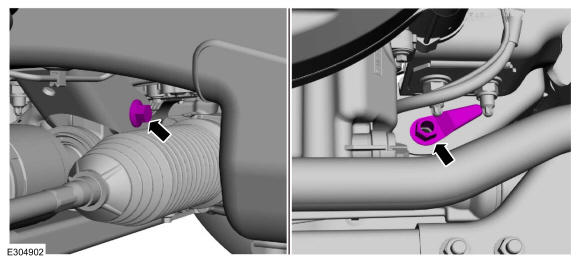

  8. Install the new axle shaft housing carrier mounting bushing nut and the bolt finger tight.
    GFD458898Courtesy of FORD MOTOR COMPANY

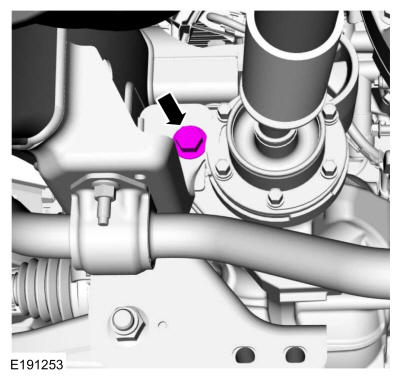

  9. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458952Courtesy of FORD MOTOR COMPANY

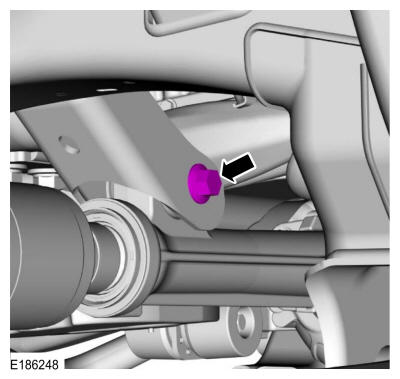

  10. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458953Courtesy of FORD MOTOR COMPANY

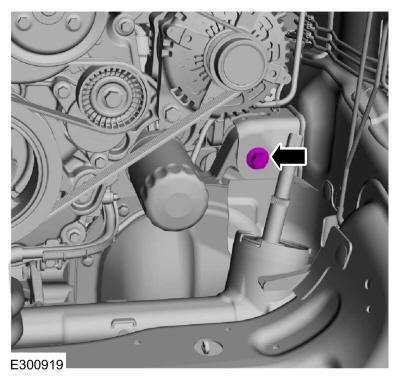

  11. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458901Courtesy of FORD MOTOR COMPANY
  12. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD458875Courtesy of FORD MOTOR COMPANY
  13. Install the steering gear boot.
    GFD458874Courtesy of FORD MOTOR COMPANY

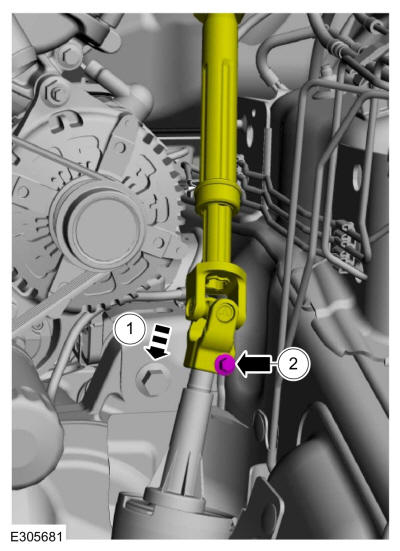

    1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Install a new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD458902Courtesy of FORD MOTOR COMPANY
  14. Remove the holding device from the steering wheel.
    GFD458607Courtesy of FORD MOTOR COMPANY

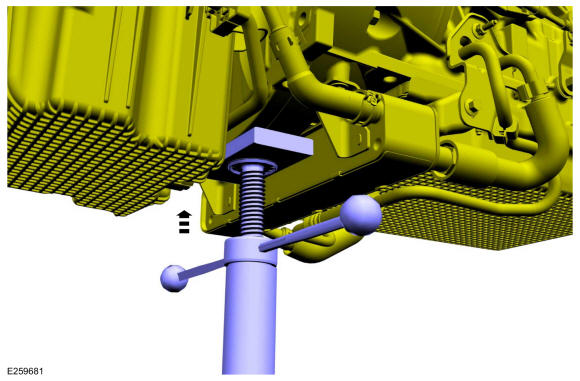

  15. Using an adjustable stand, raise the engine 50 mm (2 in). Use the General Equipment: Vehicle/Axle Stands
    GFD458883Courtesy of FORD MOTOR COMPANY

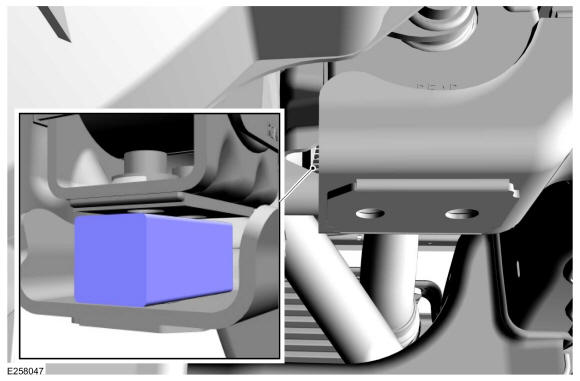

  16. Remove the wood block.
    GFD458937Courtesy of FORD MOTOR COMPANY
    1. Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
    2. Remove the stand.
    GFD458890Courtesy of FORD MOTOR COMPANY
  17. NOTE: Front drive shaft removed from graphic for clarity.

    Install the new LH engine mount through bolt.

    • Do not tighten at this time.

    GFD458891Courtesy of FORD MOTOR COMPANY
  18. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    GFD458892Courtesy of FORD MOTOR COMPANY
  19. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    GFD458893Courtesy of FORD MOTOR COMPANY
  20. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.
    NOTE: Front drive shaft removed from graphic for clarity.

    Tighten the LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD458891Courtesy of FORD MOTOR COMPANY
  21. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD458872Courtesy of FORD MOTOR COMPANY
    • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.

    • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 46 lb.ft (63 Nm)

    • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 46 lb.ft (63 Nm)

    GFD458871Courtesy of FORD MOTOR COMPANY

    4x2/4x4

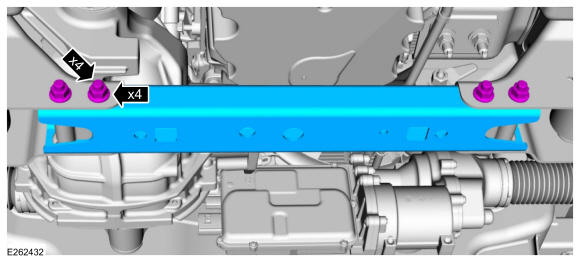

  22. Install the crossmember, bolts and the nuts.

    Torque: 66 lb.ft (90 Nm)

    GFD458936Courtesy of FORD MOTOR COMPANY

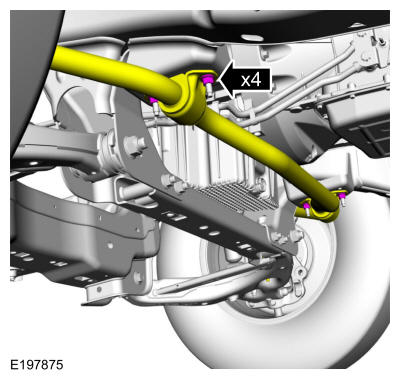

  23. Position the stabilizer bar and install the new nuts.

    Torque: 41 lb.ft (55 Nm)

    GFD458895Courtesy of FORD MOTOR COMPANY
  24. NOTE: If equipped.

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD458869Courtesy of FORD MOTOR COMPANY
  25. NOTE: If equipped.

    Install the underbody shield and fasteners.

    Torque: 71 lb.in (8 Nm)

    GFD458868Courtesy of FORD MOTOR COMPANY
  26. NOTE: If equipped.

    If equipped, Install the underbody shield and fasteners.

    Torque: 30 lb.ft (40 Nm)

    GFD458935Courtesy of FORD MOTOR COMPANY
  27. NOTE: If equipped.

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD458934Courtesy of FORD MOTOR COMPANY

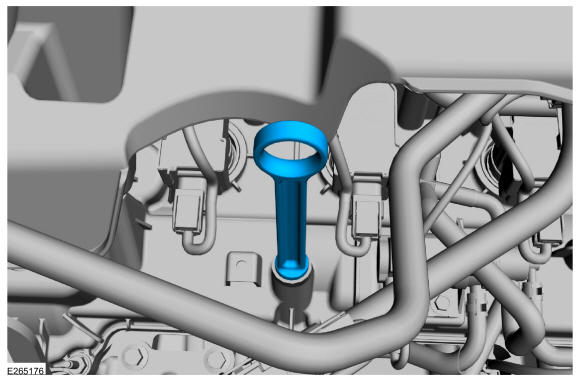

  28. Install the oil level indicator.
    GFD458933Courtesy of FORD MOTOR COMPANY
  29. Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
  30. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

    4x4

  31. Start the engine and check the exhaust system for leaks.
