Intake Manifold: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

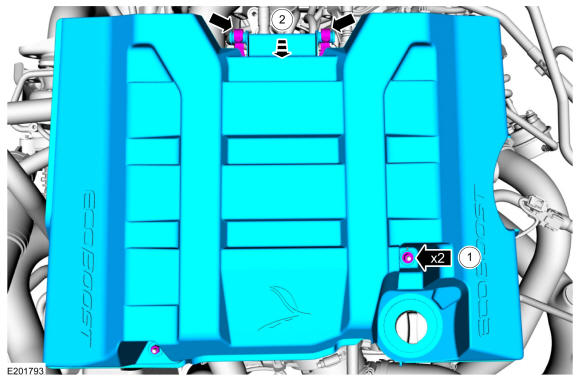

1. Remove the nuts.
  Torque: 44 lb.in (5 Nm)
2. Slide the engine appearance cover out of the retaining bracket.
- If the engine appearance cover stud bolts are loosened or removed, they must be installed/tightened into the intake manifold.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Refer to: Air Cleaner Outlet Pipe RH .
2. Refer to: Air Cleaner Outlet Pipe LH .
3. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

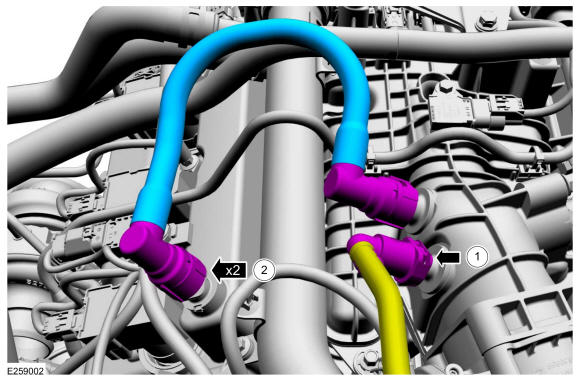

1. Disconnect the vacuum tube quick release coupling. Refer to: QUICK RELEASE COUPLING . .
2. Disconnect the crankcase vent tube quick release coupling. Refer to: QUICK RELEASE COUPLING . .
Courtesy of FORD MOTOR COMPANY

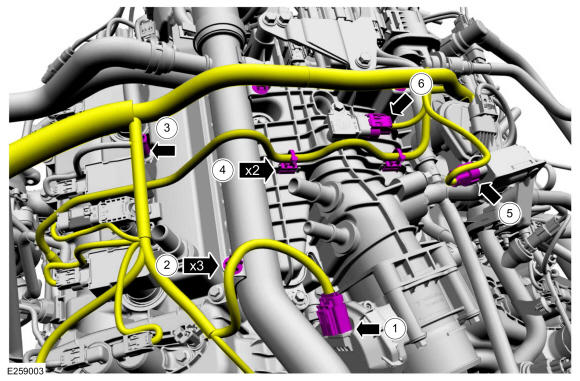

1. Disconnect the throttle body electrical connector.
2. Detach the wiring harness retainers.
3. Detach the wiring harness retainer.
4. Detach the vacuum harness retainers.
5. Disconnect the differential pressure feedback EGR sensor electrical connector.
6. Disconnect the MAP sensor electrical connector.
Courtesy of FORD MOTOR COMPANY

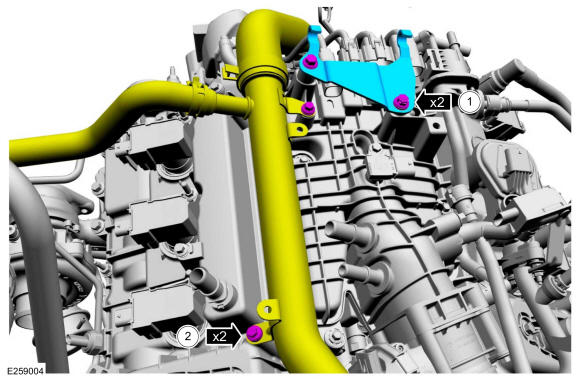

1. Remove the bolts and the engine appearance cover bracket.
  Torque: 97 lb.in (11 Nm)
2. Remove the bolts and position the coolant pipe aside.
Courtesy of FORD MOTOR COMPANY
Detach the wiring harness connector retainers.

Courtesy of FORD MOTOR COMPANY

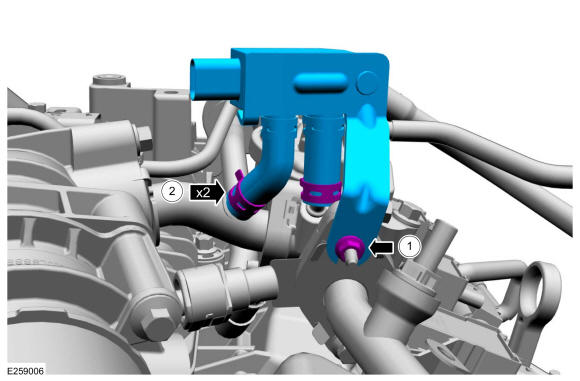

1. Remove the nut.
  Torque: 53 lb.in (6 Nm)
2. Release the clamps and remove the differential pressure feedback EGR sensor.
Courtesy of FORD MOTOR COMPANY

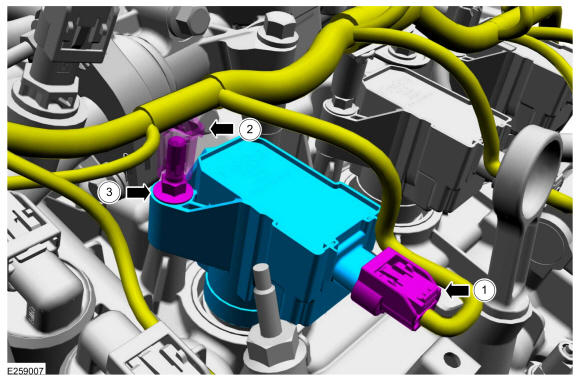

1. Disconnect the ignition coil-on-plug electrical connector.
2. Detach the wiring harness retainer.
3. Remove the stud bolt and the ignition coil-on-plug.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

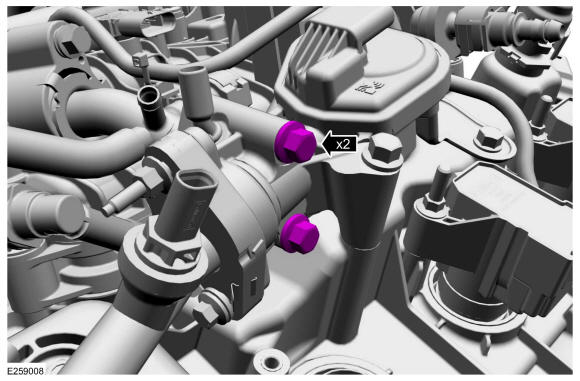

Remove the EGR tube bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

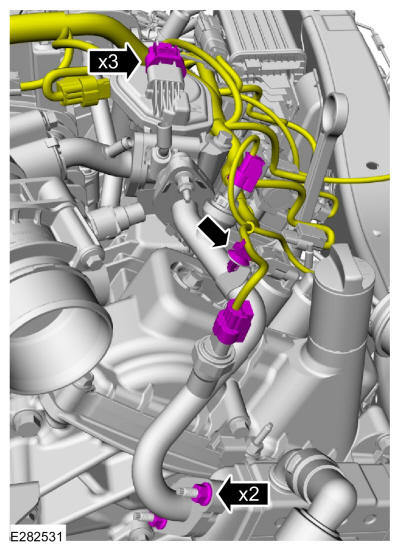

1. Remove the EGR tube nuts.
2. Disconnect the engine wiring harness electrical connectors.
3. Detach the engine wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

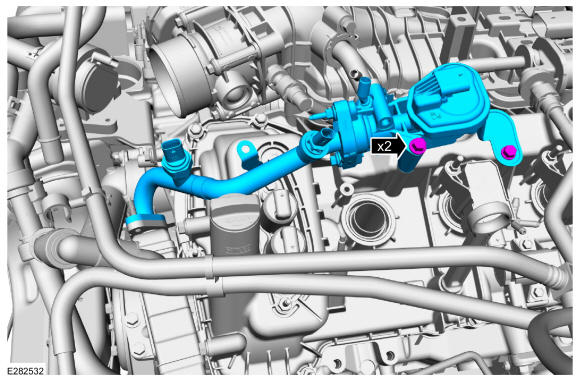

Remove the bolts and the EGR valve assembly.

Courtesy of FORD MOTOR COMPANY
- Remove and discard the gasket.
- Clean and inspect all sealing surfaces.
Courtesy of FORD MOTOR COMPANY

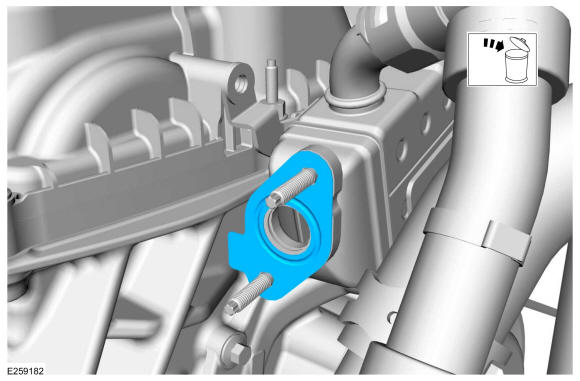

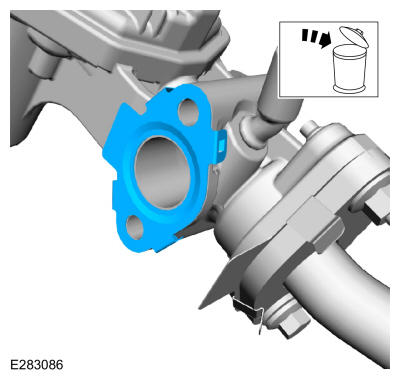

Remove and discard the EGR tube gasket.

Courtesy of FORD MOTOR COMPANY

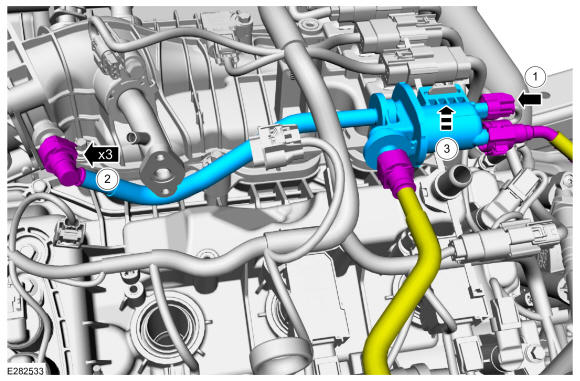

1. Disconnect the EVAP canister purge valve electrical connector.
2. Disconnect the EVAP canister purge valve quick release couplings. Refer to: QUICK RELEASE COUPLING . .
3. Lift the EVAP canister purge valve up and remove the EVAP canister purge valve.
Courtesy of FORD MOTOR COMPANY

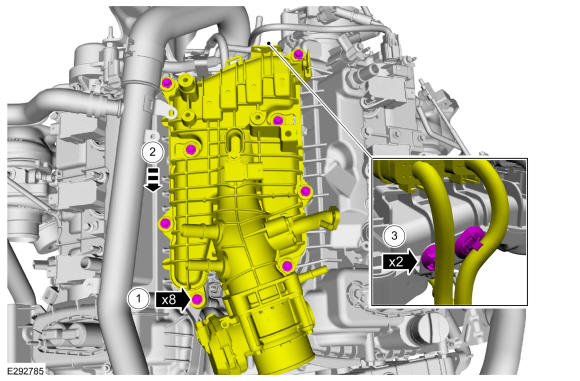

1. Loosen the intake manifold bolts.
2. Position the intake manifold toward the front of the engine.
3. Detach the wiring harness retainers from the rear of the intake manifold.
Courtesy of FORD MOTOR COMPANY

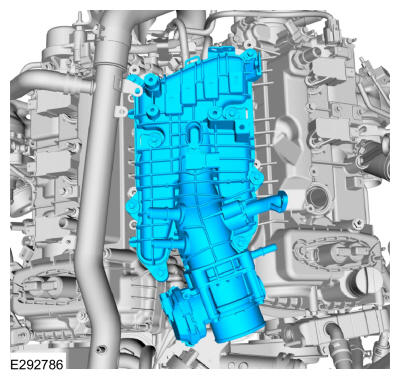

Remove the intake manifold.

Courtesy of FORD MOTOR COMPANY

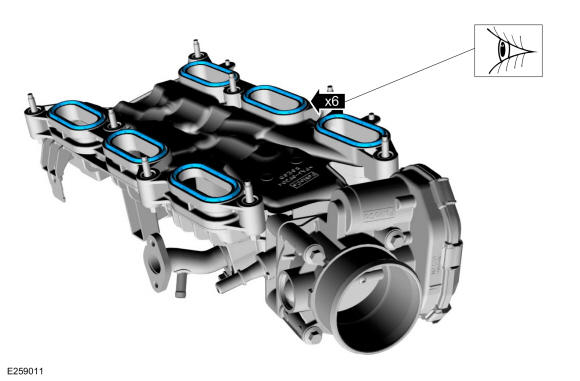

- Remove and inspect the gaskets, replace as necessary.
- Clean and inspect all sealing surfaces.

Courtesy of FORD MOTOR COMPANY
