Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1. Position the flexplate on the crankshaft.
2. Install the bolts then rundown the bolts one turn at a time in sequence shown below until the flexplate is snug against the rear face of the crankshaft.
3. Final tighten the bolts in sequence shown.
  Torque: 59 lb.ft (80 Nm)

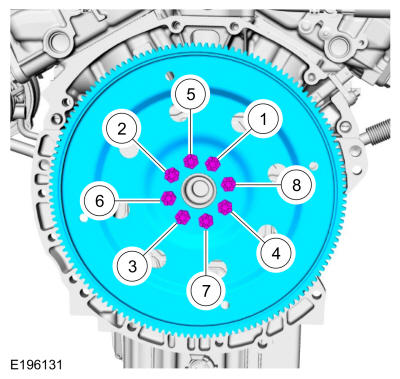

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: TRANSMISSION - 2.7L ECOBOOST (238KW/324PS) .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
