Engine Mount LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

  1. Install the engine mount-to-cylinder block bracket and the bolts.

    Torque: 57 lb.ft (77 Nm)

    GFD458887Courtesy of FORD MOTOR COMPANY
  2. NOTE: If removed.

    Install a new engine mount-to-frame nut plate.

    GFD458888Courtesy of FORD MOTOR COMPANY

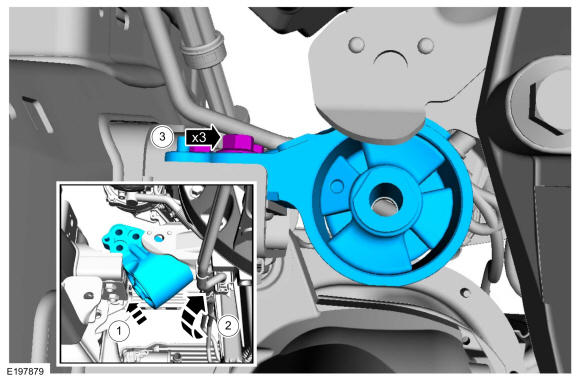

    1. Position the LH engine mount into the bracket opening.
    2. Using a twisting motion install the mount.
    3. Hand start the new engine mount-to-frame bolts. Do not tighten at this time.
    GFD458889Courtesy of FORD MOTOR COMPANY
    1. Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
    2. Remove the stand.
    GFD458890Courtesy of FORD MOTOR COMPANY
  3. Install the new LH engine mount through bolt.

    • Do not tighten at this time.

    GFD458891Courtesy of FORD MOTOR COMPANY
  4. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    GFD458892Courtesy of FORD MOTOR COMPANY
  5. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    GFD458893Courtesy of FORD MOTOR COMPANY

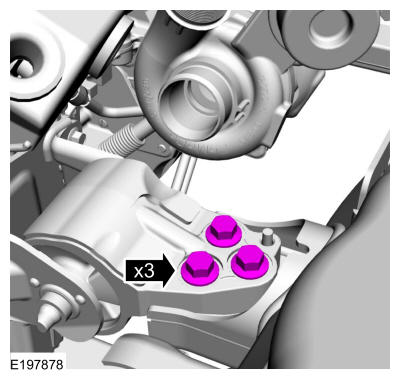

  6. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

    Tighten the LH engine mount bolts.

    Torque: 129 lb.ft (175 Nm)

    GFD458894Courtesy of FORD MOTOR COMPANY
  7. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Tighten the LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD458891Courtesy of FORD MOTOR COMPANY

    4x2

  8. Position the stabilizer bar and install the new nuts.

    Torque: 41 lb.ft (55 Nm)

    GFD458895Courtesy of FORD MOTOR COMPANY

    4x4

  9. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    GFD458896Courtesy of FORD MOTOR COMPANY

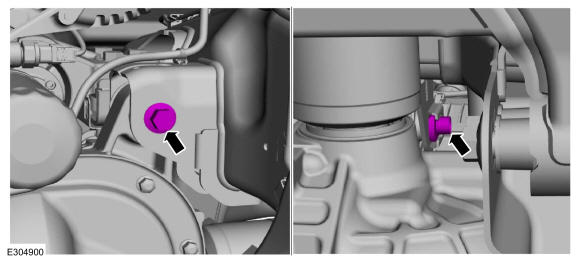

  10. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    GFD458897Courtesy of FORD MOTOR COMPANY
  11. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.
    GFD458898Courtesy of FORD MOTOR COMPANY
  12. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458899Courtesy of FORD MOTOR COMPANY

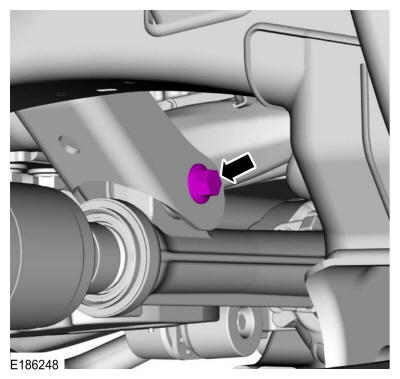

  13. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458900Courtesy of FORD MOTOR COMPANY
  14. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458901Courtesy of FORD MOTOR COMPANY
  15. Remove the stand. Use the General Equipment: Vehicle/Axle Stands
    GFD458875Courtesy of FORD MOTOR COMPANY
  16. Install the steering gear boot.
    GFD458874Courtesy of FORD MOTOR COMPANY
    1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Install a new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD458902Courtesy of FORD MOTOR COMPANY
  17. Remove the holding device from the steering wheel.
    GFD458607Courtesy of FORD MOTOR COMPANY
  18. Install the front drive shaft. Refer to: Front Driveshaft .

    4x2/4x4

  19. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD458872Courtesy of FORD MOTOR COMPANY
    1. Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
    2. Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 46 lb.ft (63 Nm)

    3. Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 46 lb.ft (63 Nm)

    GFD458871Courtesy of FORD MOTOR COMPANY
  20. NOTE: If equipped.

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD458869Courtesy of FORD MOTOR COMPANY
  21. NOTE: If equipped.

    Install the underbody shield and fasteners.

    Torque: 71 lb.in (8 Nm)

    GFD458868Courtesy of FORD MOTOR COMPANY
  22. NOTE: If equipped.

    Install the underbody shield and fasteners.

    Torque: 30 lb.ft (40 Nm)

    GFD458870Courtesy of FORD MOTOR COMPANY
  23. Install the following items:

    1. CAC (charge air cooler) outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    2. LH CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    3. LH (left hand) air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .
    4. Air cleaner. Refer to: Air Cleaner .

  24. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  25. Check the exhaust system for leaks.
