Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
- Install the cylinder head.
- Install new cylinder head bolts.
  Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: Loosen: 2 turn(s) | Stage 3: 37 lb.ft (50 Nm) | Stage 4: 180°
Fig 1: RH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
- Final tighten the flare nuts.
  Torque: Stage 1: 62 lb.in (7 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: 25°
Courtesy of FORD MOTOR COMPANY
1. Install the cylinder head to coolant outlet connector hose assembly and the bolt.
  Torque: 89 lb.in (10 Nm)
2. Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

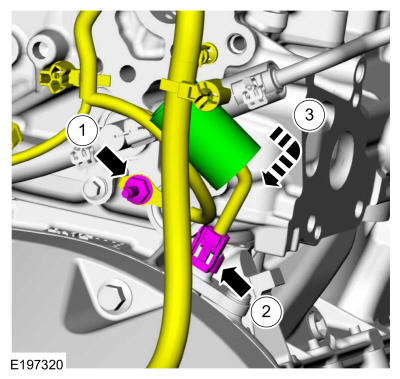

1. Install the wiring harness ground and the stud bolt.
  Torque: 89 lb.in (10 Nm)
2. Connect the CKP sensor electrical connector.
3. Install the CKP sensor electrical connector insulator.
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Turbocharger RH .
2. Refer to: Camshaft RH .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
