Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
- Install the cylinder head.
- Install new cylinder head bolts.
  Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: Loosen: 2 turn(s) | Stage 3: 37 lb.ft (50 Nm) | Stage 4: 180°
Fig 1: LH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY

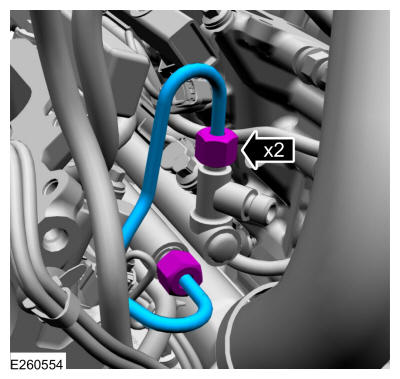

Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
- Final tighten the flare nuts.
  Torque: Stage 1: 62 lb.in (7 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: 25°
Courtesy of FORD MOTOR COMPANY
1. Install the cylinder head to coolant outlet connector hose assembly and the bolt.
  Torque: 89 lb.in (10 Nm)
2. Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

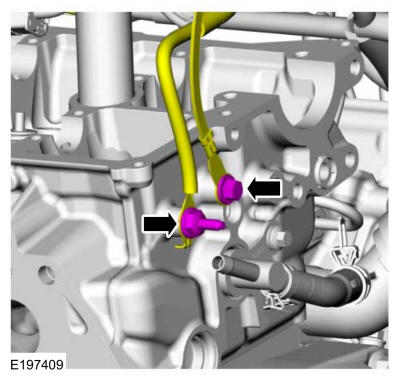

Install the wiring harness grounds, the bolt and the stud bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Turbocharger LH .
2. Refer to: Camshaft LH .

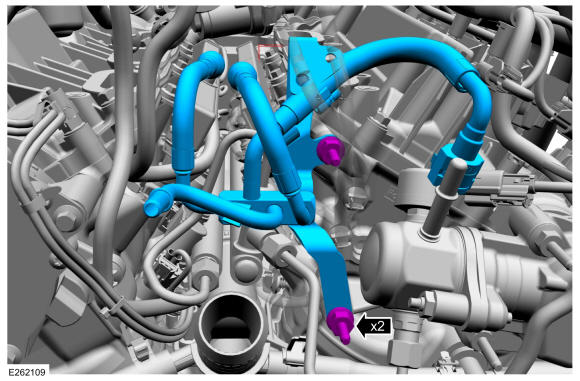

Install the fuel supply manifold, then install and tighten the retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

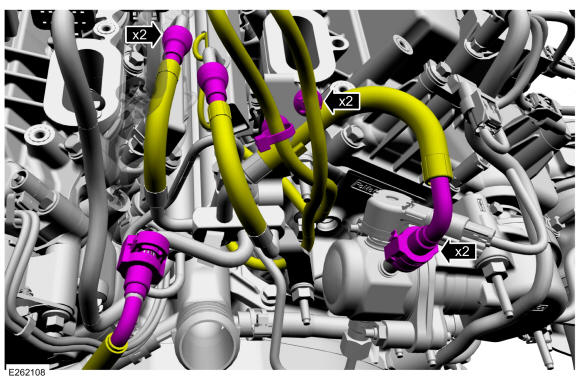

Connect the fuel supply spring lock coupling. Connect the fuel supply quick connect couplings. Attach the wire harness retainer. Refer to: Spring Lock Couplings . Refer to: QUICK RELEASE COUPLING . .

Courtesy of FORD MOTOR COMPANY

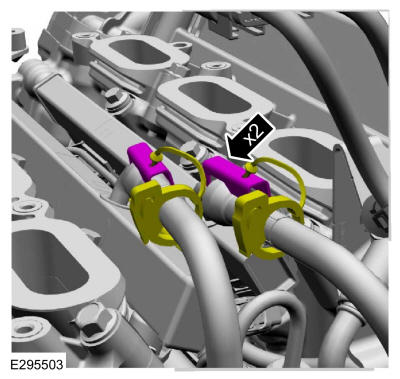

Attach the spring lock coupling retaining clips.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

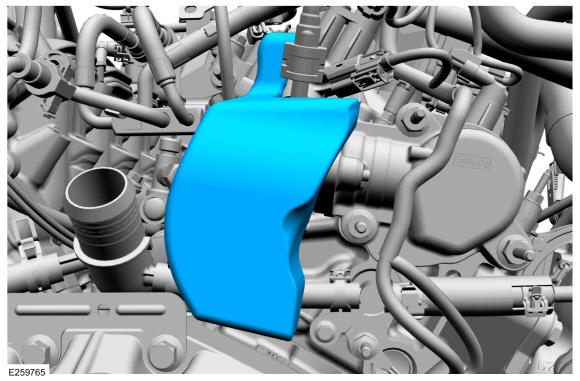

Install the fuel injection pump noise insulator.

Courtesy of FORD MOTOR COMPANY

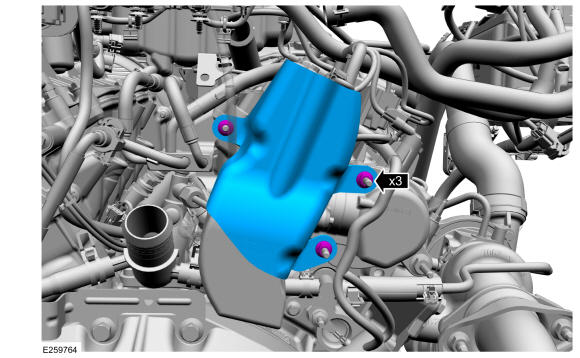

Install the high-pressure fuel pump shield, then install and tighten the retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

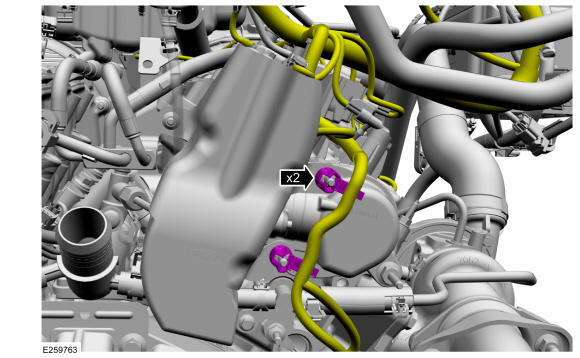

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

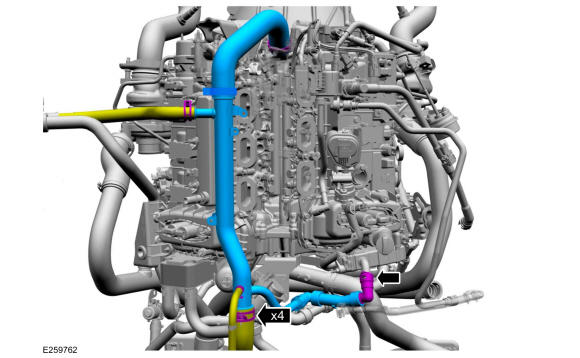

Install the coolant tube, then connect the coolant hoses and the coolant hose clamps. Connect the quick release coupling. Refer to: QUICK RELEASE COUPLING . . Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Install the intake manifold. Refer to: Intake Manifold .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
