Engine - Body Off

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW
Floor Crane
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

Materials

1. 1. Inspect the engine mount-to-frame nut plate for thread damage.
   2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.
   • Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

   Courtesy of FORD MOTOR COMPANY

2. Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

3. 1. Inspect the torque converter stud and flexplate for paint marks.
   2. Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

4. With the aid of an assistant, use the floor crane to position the engine assembly in the chassis. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

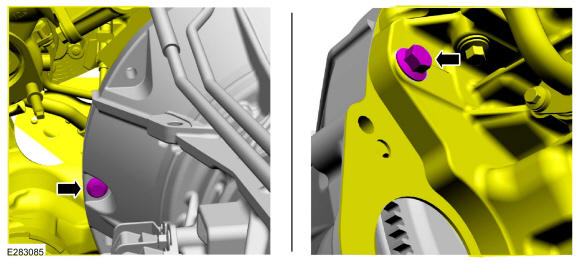

5. • Align the engine to the transmission and install the bolts.
   • Draw the engine and transmission together evenly using the bolts.

     Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

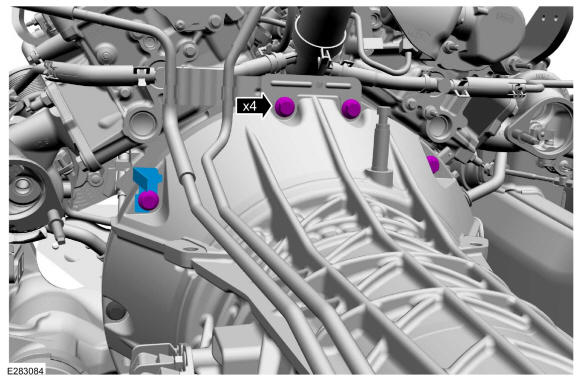

6. Install the selector lever cable bracket and the bellhousing bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. If equipped, attach the vent hose retainer.

   Courtesy of FORD MOTOR COMPANY

8. Remove the floor jack and the block of wood. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

   Courtesy of FORD MOTOR COMPANY

9. Install the LH engine mount and the new engine mount-to-frame bolts.

   Torque: 129 lb.ft (175 Nm)

   Courtesy of FORD MOTOR COMPANY

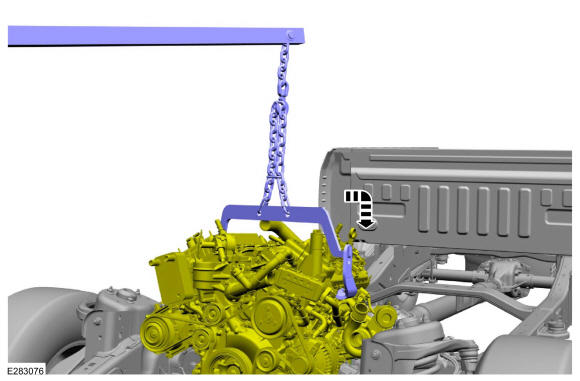

10. Using the floor crane, lower the engine assembly into the installed position.
    • Remove the floor crane and chain. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

11. Remove Special Service Tool: 303-1634 Lift Eyes (2), 303-1246 Engine Spreader Bar.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: QUICK RELEASE COUPLING . .

    Courtesy of FORD MOTOR COMPANY

14. Attach the engine wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

15. Install the coolant pipe assembly and the clamp. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

16. Install the bracket, the bolt and the nut.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

    NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
17. Install the gaskets.

    Courtesy of FORD MOTOR COMPANY

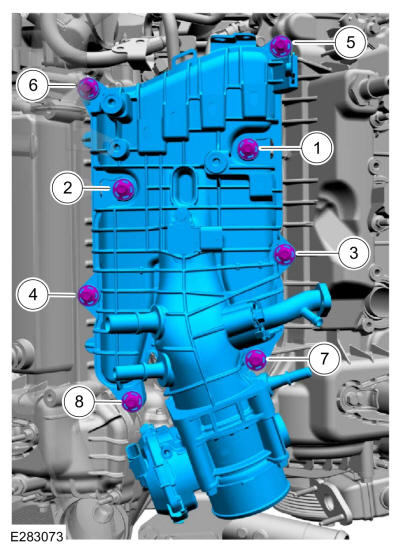

18. Tighten the bolts in 2 stages.

    Torque: Stage 1: Bolts 1 through 8 in sequence: 44 lb.in (5 Nm) | Stage 2: Bolts 8 through 1 in reverse sequence: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Attach the wiring harness retainers to the rear of the intake manifold.

    Courtesy of FORD MOTOR COMPANY

20. 1. Position the EVAP tube assembly and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING . .
    2. Attach the ground harness retainer.
    3. Attach the vacuum harness retainer.

    Courtesy of FORD MOTOR COMPANY

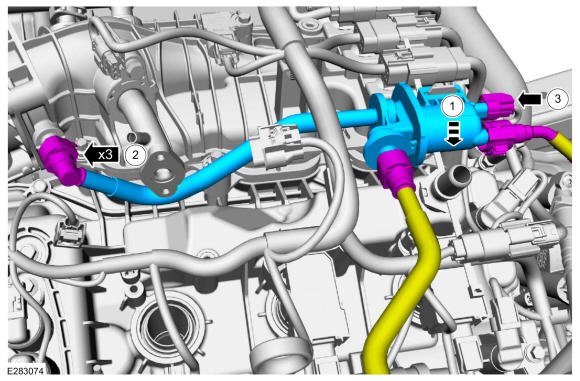

21. 1. Install the EVAP canister purge valve up onto the tab.
    2. Connect the EVAP canister purge valve quick release couplings. Refer to: QUICK RELEASE COUPLING . .
    3. Connect the EVAP canister purge valve electrical connector.

    Courtesy of FORD MOTOR COMPANY

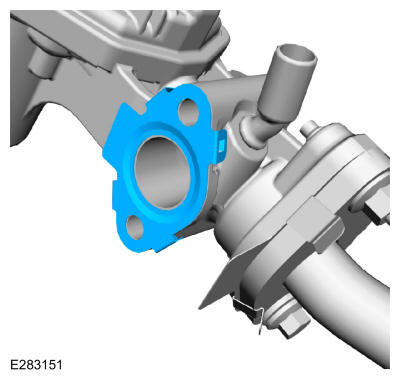

22. Install a new EGR tube gasket.

    Courtesy of FORD MOTOR COMPANY

23. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

24. Install the EGR valve assembly and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

25. 1. Install the EGR tube nuts.

       Torque: 89 lb.in (10 Nm)

    2. Connect the engine wiring harness electrical connectors.
    3. Attach the engine wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

26. Install the EGR tube bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

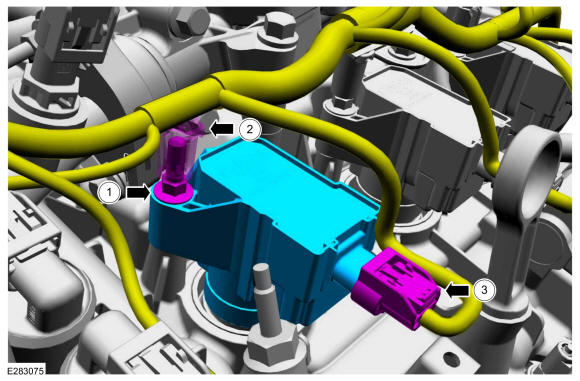

27. 1. Install the ignition coil-on-plug and the stud bolt.

       Torque: 53 lb.in (6 Nm)

    2. Attach the wiring harness retainer.
    3. Connect the ignition coil-on-plug electrical connector.

    Courtesy of FORD MOTOR COMPANY

28. 1. Install the differential pressure feedback EGR sensor and the clamps.
    2. Install the nut.

       Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

29. Attach the wiring harness connector retainers.

    Courtesy of FORD MOTOR COMPANY

30. 1. Install the engine appearance cover bracket.

       Torque: 97 lb.in (11 Nm)

    2. Position the coolant pipe and install the bolts

       Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

31. Connect the coolant hose quick release coupling.

    Courtesy of FORD MOTOR COMPANY

32. 1. Connect the throttle body electrical connector.
    2. Attach the wiring harness retainers.
    3. Attach the wiring harness retainer.
    4. Attach the vacuum harness retainers.
    5. Connect the differential pressure feedback EGR sensor electrical connector.
    6. Connect the MAP sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

33. 1. Connect the vacuum tube quick release coupling. Refer to: QUICK RELEASE COUPLING . .
    2. Connect the crankcase vent tube quick release couplings. Refer to: QUICK RELEASE COUPLING . .

    Courtesy of FORD MOTOR COMPANY

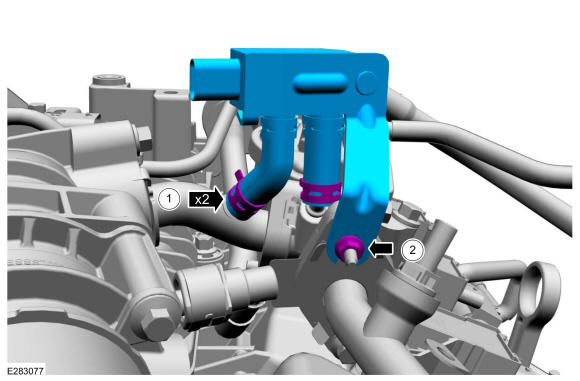

34. 1. Install the PCV tube and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING . .
    2. Connect the crankcase pressure sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

35. • Slide the engine appearance cover into the retaining bracket.

      Torque: 44 lb.in (5 Nm)

    • Install the nuts.

    Courtesy of FORD MOTOR COMPANY

36. Install new exhaust gaskets.
    • Position the catalytic converters forward into the installed position.

    Courtesy of FORD MOTOR COMPANY

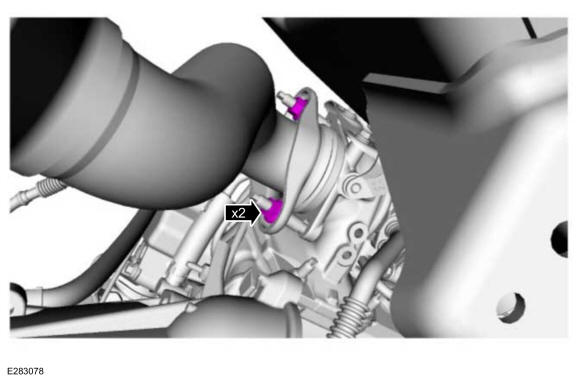

37. Position the flange onto the studs and loosely install new RH catalytic converter nuts.

    Courtesy of FORD MOTOR COMPANY

38. Position the flange onto the studs and loosely install new LH catalytic converter nuts.

    Courtesy of FORD MOTOR COMPANY

39. Evenly tighten the nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

40. Evenly tighten the nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

41. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

42. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

43. Attach the wiring harness retainer located below the generator to the cylinder block.

    Courtesy of FORD MOTOR COMPANY

44. • Install the wiring terminal and nut.

      Torque: 150 lb.in (17 Nm)

    • Position the protective cover.
    • Connect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

45. • Connect the A/C compressor electrical connectors.
    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

46. 1. Install the pin-type retainer.
    2. Install the ground wire and bolt.

       Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

47. 1. Install the wiring harness retainer nut.

       Torque: 106 lb.in (12 Nm)

    2. Install the pin-type retainer.

    Courtesy of FORD MOTOR COMPANY

48. 1. Install the coolant tube assembly and the nut.

       Torque: 106 lb.in (12 Nm)

    2. Position the EGR coolant hose and connect the quick release coupling.

    Courtesy of FORD MOTOR COMPANY

49. • Install the radiator hoses. Use the General Equipment: Hose Clamp Remover/Installer
    • Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

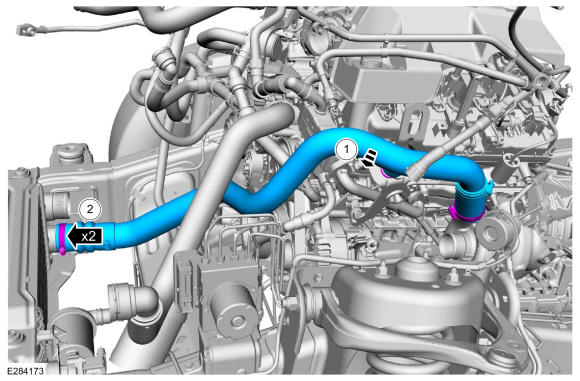

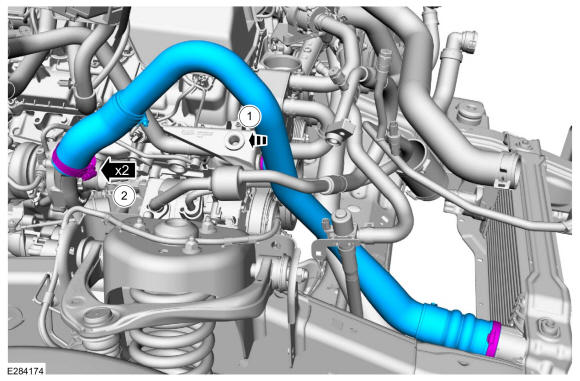

50. 1. Position the CAC inlet pipe and attach the pipe to the grommet.
    2. Tighten the CAC inlet pipe clamps.

       Torque: 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

51. 1. Position the CAC inlet pipe and attach the pipe to the grommet.
    2. Tighten the CAC inlet pipe clamps.

       Torque: 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

52. 1. Install the CAC outlet pipe.
    2. Attach the hose retainer and tighten the CAC outlet pipe clamps.

       Torque: 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

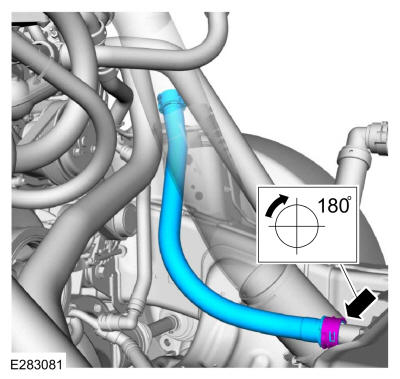

53. Install the TC bypass tube and rotate the retaining ring clockwise 180 degrees.

    Courtesy of FORD MOTOR COMPANY

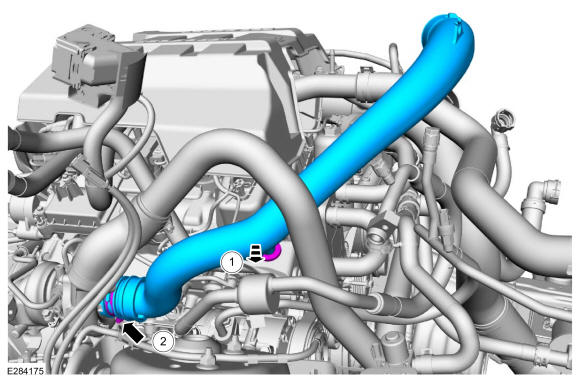

54. 1. Attach the LH air cleaner outlet pipe to the grommet.
    2. Tighten the clamp at the turbocharger inlet.

       Torque: 48 lb.in (5.4 Nm)

    3. Connect the ventilation tubes, the air bypass valve tube and the vacuum line.

    Courtesy of FORD MOTOR COMPANY

55. 1. Position the RH air cleaner outlet pipe and attach the pipe to the grommet.
    2. Tighten the clamp.

       Torque: 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

56. Install the body. Refer to: Body .
57. Install the lower bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

58. Install the lower bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

59. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

60. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

61. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

62. Position the exhaust Y-pipe dual catalytic converter onto the exhaust intermediate pipe and install bolts.
    • Evenly tighten the bolts.

      Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

63. If equipped, install the front driveshaft. Refer to: Front Driveshaft .

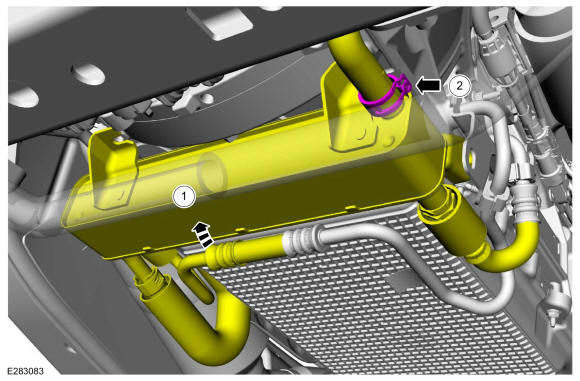

64. 1. Position the transmission fluid cooler.
    2. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

65. Install the transmission fluid cooler bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

66. Position the coolant tubes and attach the retainer to the oil pan.

    Courtesy of FORD MOTOR COMPANY

67. Install the starter. Refer to: Starter Motor .
68. Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
69. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
70. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
71. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
72. Start and check the exhaust system for leaks.
73. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
