Loadspace Trim Panel - SuperCab SuperCrew: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
SuperCrew shown.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the seat latch and fold the RH rear seat backrest down.
- Release the vehicle jack hook-and-loop strap.
- Remove the vehicle jack assembly.
SuperCab
-
NOTE: The striker should be in its lowest position for the latch to engage.
Lower the LH seat backrest.
- Pull the backrest release strap and release the latch from the striker.
- Lower the backrest.
- On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCab .
SuperCrew
-
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.NOTE: The striker should be in its lowest position for the latch to engage.
Lower the LH rear seat backrest.
- Raise the seat cushion.
- Release the backrest latch.
- Lower the backrest down.
- On both sides, remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
All vehicles
- If equipped. Remove the center seatbelt rear guide cover.
- If equipped. Remove the center seatbelt front guide cover.
- Remove the retainer.
Torque
: 42 lb.in (4.8 Nm)
- Position the seatbelt through the slot and remove the cover.
- Remove the retainer.
- If equipped, remove the subwoofer speaker. Refer to: Subwoofer Speaker .
- If equipped, remove the DSP. Refer to: Audio Digital Signal Processing (DSP) Module .

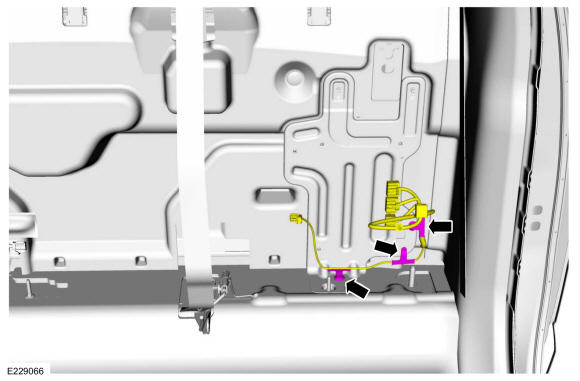

- If equipped. Release the retainers and position aside the wire harness.

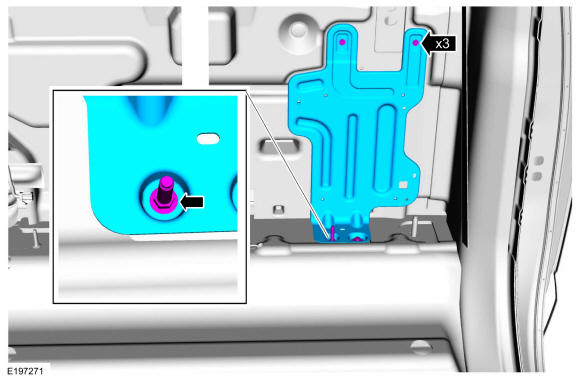

- If equipped. Remove the retainers and the DSP bracket.
- Remove the loadspace trim panel.
- Remove the retainers.
- Position aside the rear safety belt and remove the loadspace trim panel.
