Loadspace Trim Panel - Regular Cab: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .
NOTE: Front outboard seats removed for clarity.

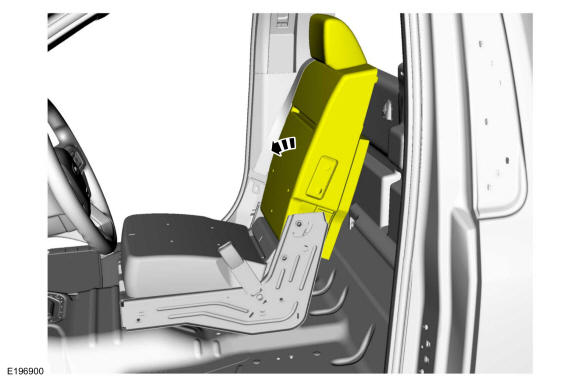

If equipped. Position the center seat backrest forward.

Courtesy of FORD MOTOR COMPANY

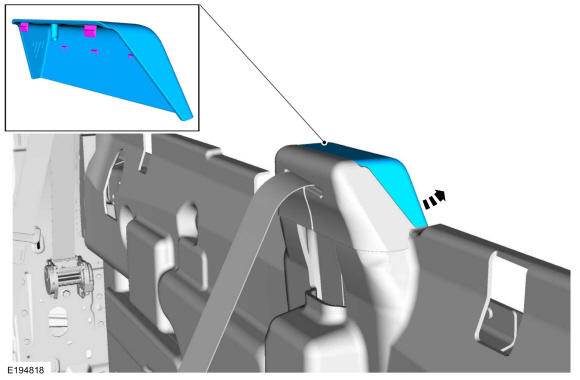

If equipped. Remove the center seatbelt rear guide cover.

Courtesy of FORD MOTOR COMPANY

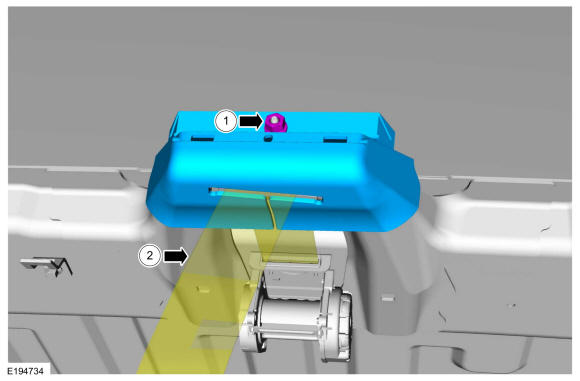

If equipped. Remove the center seatbelt front guide cover.
1. Remove the retainer.
  Torque

  : 42 lb.in (4.8 Nm)
2. Position the seatbelt through the slot and remove the cover.
Courtesy of FORD MOTOR COMPANY

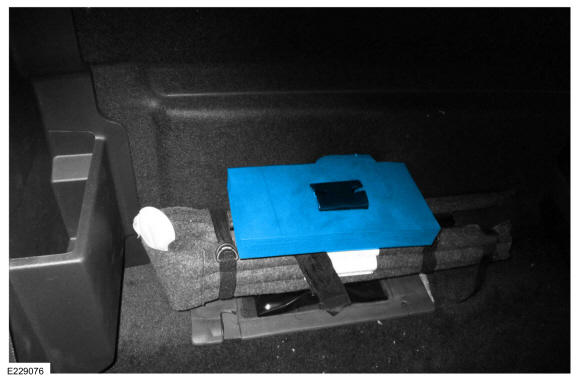

Remove the vehicle jack foam insulator.

Courtesy of FORD MOTOR COMPANY

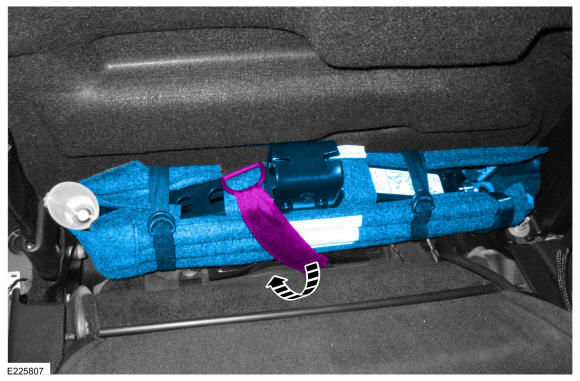

Release the vehicle jack hook-and-loop strap.

Courtesy of FORD MOTOR COMPANY
Remove the vehicle jack assembly.

Courtesy of FORD MOTOR COMPANY

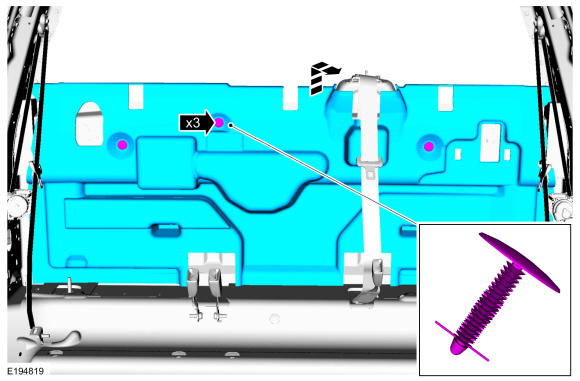

Remove the retainers and the loadspace trim panel.

Courtesy of FORD MOTOR COMPANY
