Headliner - Lowering - SuperCrew
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
- Remove the following items:
- On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
- On both sides, remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel - SuperCrew .
- On both sides, remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .
-
NOTE: LH side shown, RH side similar.
On both sides. Remove the sun visor.
- Remove the retainer cover.
- Remove the retainer.
- Remove the sun visor.
- If equipped. Disconnect the electrical connector.
-
NOTE: LH side shown, RH side similar.
On both sides. Remove the retainers and the sun visor clips.
- If equipped. Release the clips and remove the rain sensor covers.
- If equipped. Disconnect the rear view mirror electrical connector.
- If equipped. Disconnect the rain sensor electrical connector.
- On both sides. Remove the garment hooks.
- Open the garment hook retainer cover.
- Remove the retainer and the garment hook.
- Disconnect the headliner wiring harness connectors and position aside the wiring harness.
-
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.NOTE: The striker should be in its lowest position for the latch to engage.

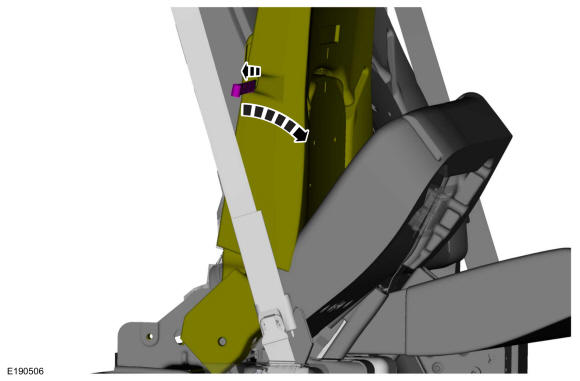

Fold the LH rear seat backrest down.
- Raise the seat cushion.
- Release the backrest latch.
- Fold the backrest down.
- Pull the backrest release strap and fold the RH rear seat backrest forward.
- On both sides. Fully recline the front seat backrest.
- Release the clips and lower the headliner.
