Headliner - Lowering - SuperCab

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Remove the following items:
1. On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
2. On both sides, remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel - SuperCab .
NOTE: LH side shown, RH side similar.

On both sides, release the clips and remove the upper striker covers.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

On both sides. Remove the sun visor.
1. Remove the retainer cover.
2. Remove the retainer.
3. Remove the sun visor.
4. If equipped. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

On both sides. Remove the retainers and the sun visor clips.

Courtesy of FORD MOTOR COMPANY

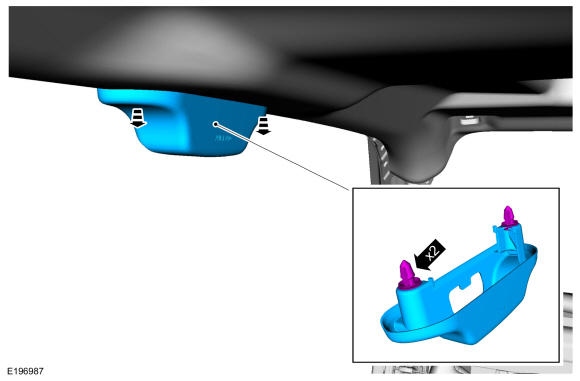

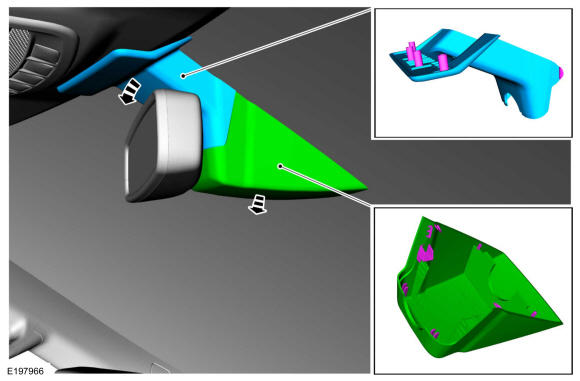

If equipped. Release the clips and remove the rain sensor covers.

Courtesy of FORD MOTOR COMPANY

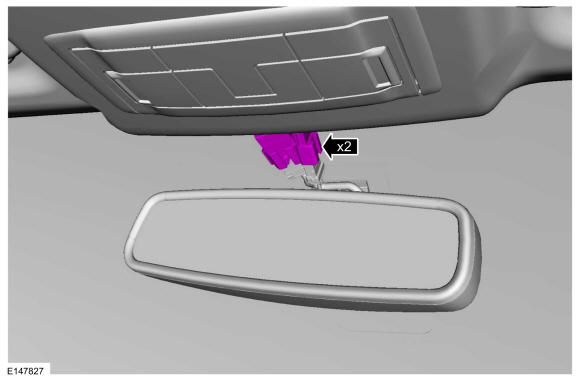

If equipped. Disconnect the rear view mirror electrical connector.

Courtesy of FORD MOTOR COMPANY

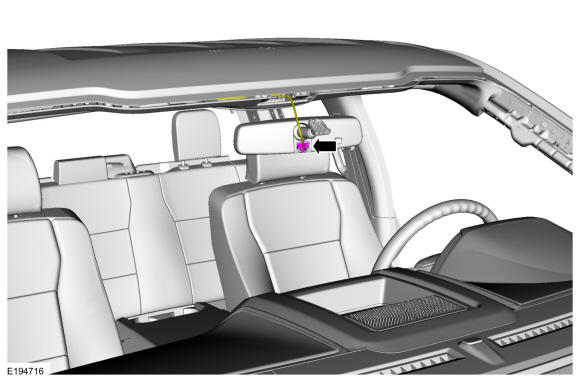

If equipped. Disconnect the rain sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the garment hooks.
1. Open the garment hook retainer cover.
2. Remove the retainer and the garment hook.
Courtesy of FORD MOTOR COMPANY
Disconnect the headliner wiring harness connectors and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

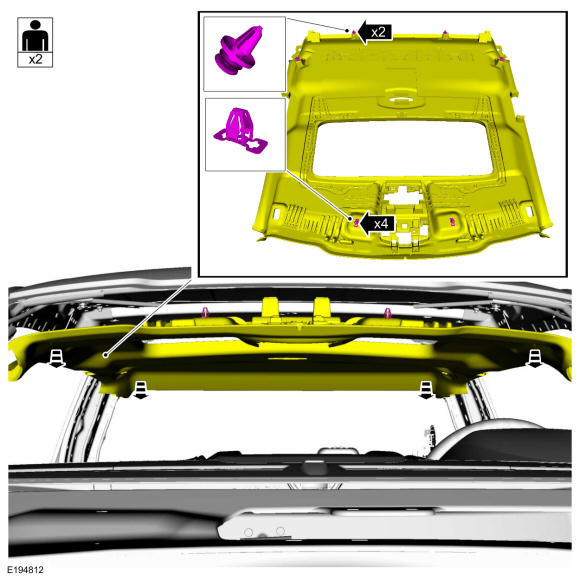

Release the clips and lower the headliner.

Courtesy of FORD MOTOR COMPANY
