C-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The seat is removed for clarity.

NOTE: During installation, make sure to attach the scuff plate trim panels at the lower B-pillar trim panel first.

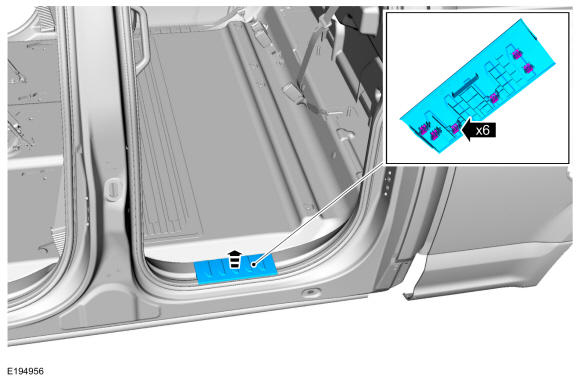

Release the clips and remove the rear door scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY
Position aside the rear door weatherstrip.

Courtesy of FORD MOTOR COMPANY

Vehicles without Inflatable Seatbelts
Remove the bolt and the position aside the seatbelt.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with Inflatable Seatbelts
NOTE: Follow the unique instruction or graphic for this step in installation.

Open the seatbelt tongue cover.

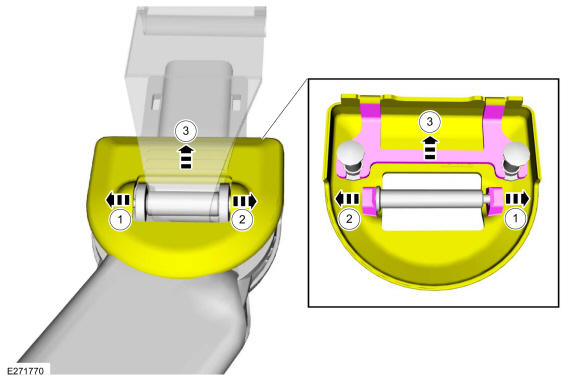

1. Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
2. Push the seatbelt tongue lower cover to one side, lift and disengage that side of the cover.
3. Push the seatbelt tongue lower cover forward to disengage and open the cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instruction or graphic for this step in installation.

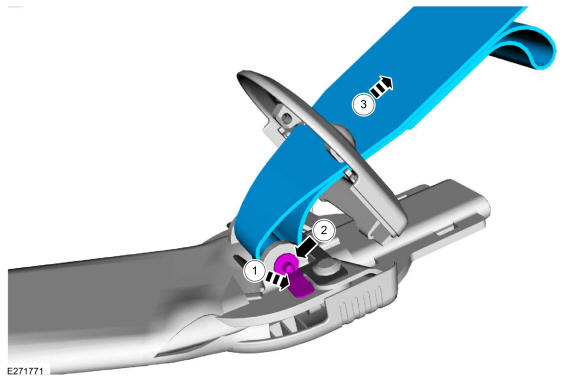

Disassemble the lap belt from the seatbelt tongue.
1. Push down on the lap belt spring clip.
2. Remove the pin.
3. Pull the lap belt through the seatbelt tongue cover.
Courtesy of FORD MOTOR COMPANY

All vehicles

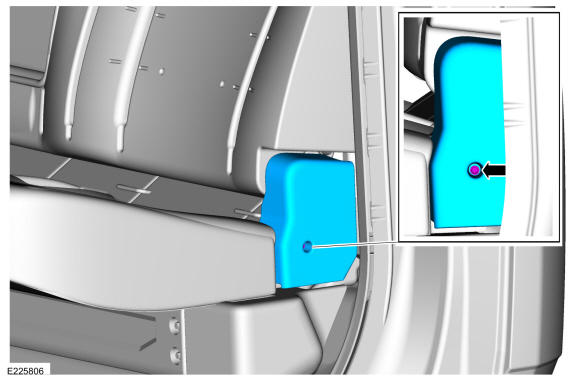

Remove the retainer and the outboard cushion side shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If the tether clip is damaged during removal, a new clip must be installed prior to installation of the panel.

NOTE: During installation make sure to install the clip by the scuff plate trim panel first and work upward on the trim panel to connect the other clips.

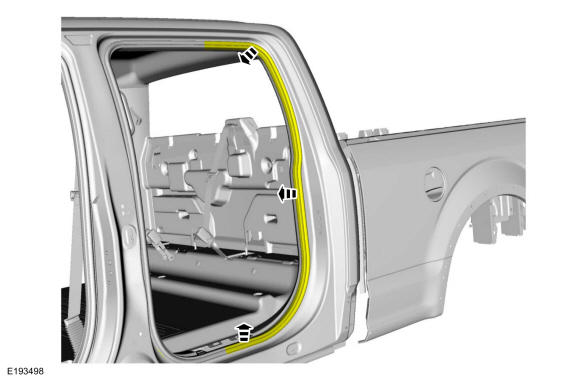

Remove the C-pillar trim panel.
1. Release the clips.
2. Release the tether clip and remove the C-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
