B-Pillar Trim Panel - SuperCrew: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Upper and Lower B-Pillar Trim Panels

Remove the front door scuff plate trim panel.

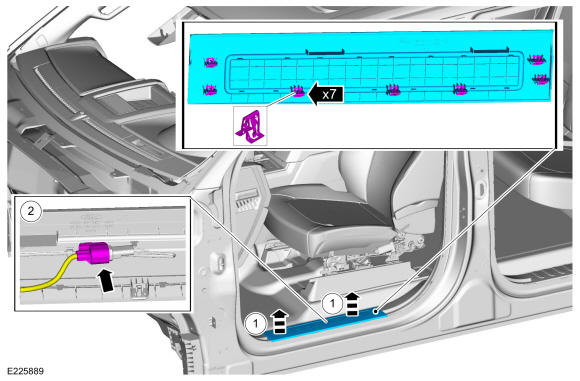

1. Release the clips and remove the front door scuff plate trim panel.
2. If equipped. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

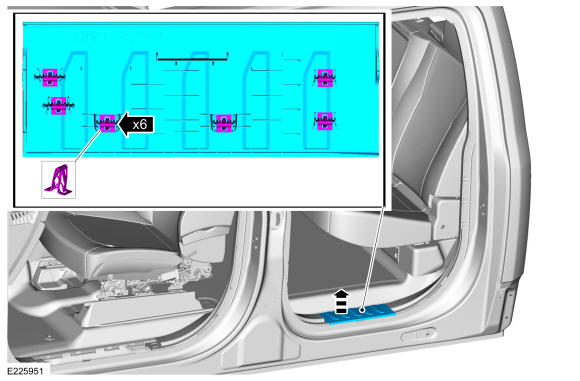

Release the clips and remove the rear door scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY

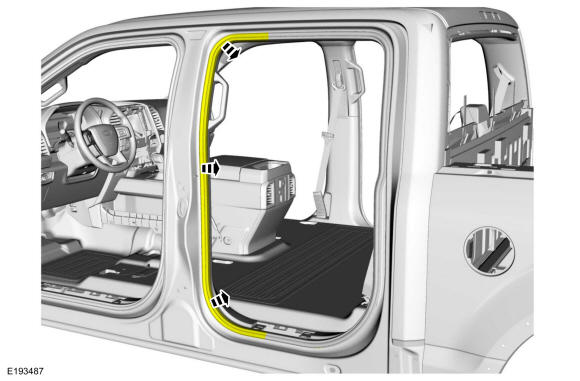

Position aside the front door weatherstrip.

Courtesy of FORD MOTOR COMPANY
Position aside the rear door weatherstrip.

Courtesy of FORD MOTOR COMPANY

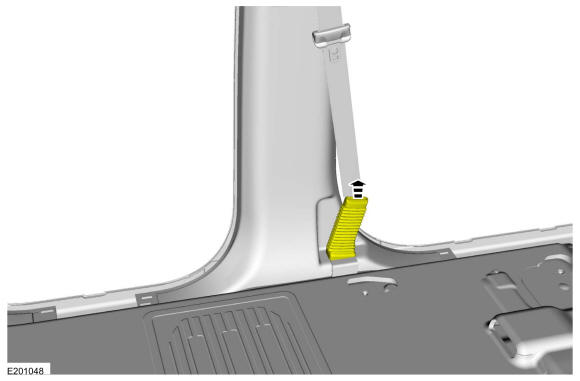

Release the clips and disengage the safety belt pretensioner boot from the pretensioner bezel.

Courtesy of FORD MOTOR COMPANY
Remove the pretensioner bezel.

Courtesy of FORD MOTOR COMPANY

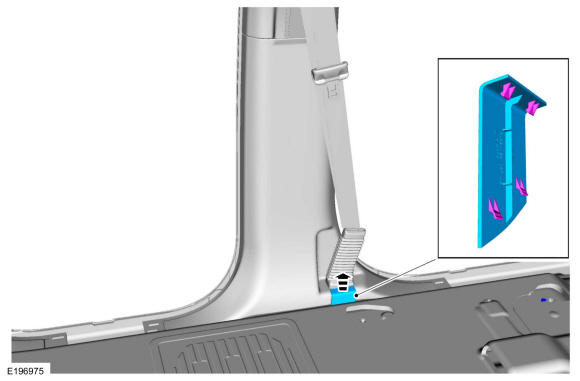

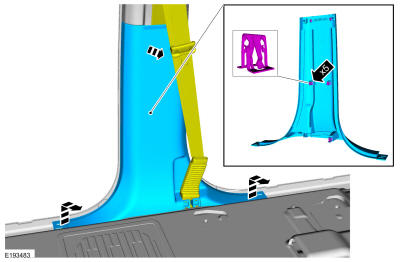

Release the clips and remove the lower B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY

Upper B-Pillar Trim Panel

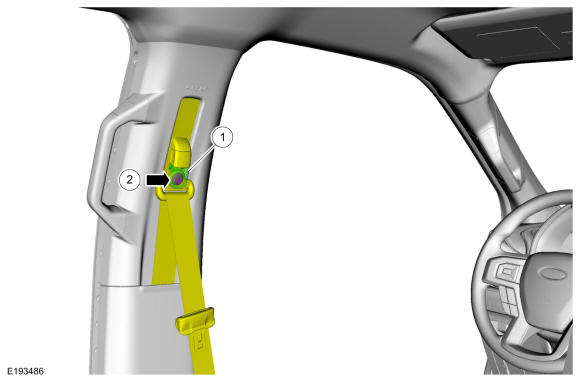

Remove the safety belt D-ring bolt and position aside the front safety belt.
1. Remove the safety belt D-ring trim cover.
2. Remove the safety belt D-ring bolt and position aside the front safety belt.
  Torque

  : 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

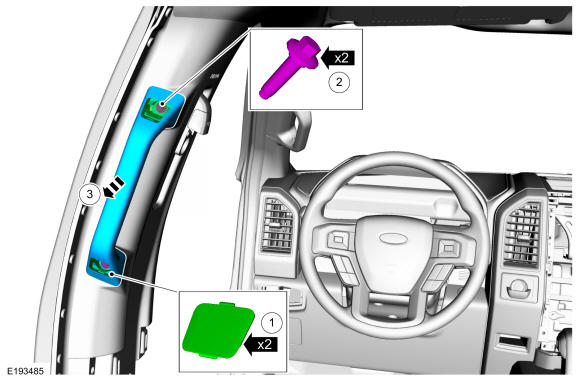

Remove the assist handle.
1. Remove the assist handle bolt covers.
2. Remove the bolts.
  Torque

  : 106 lb.in (12 Nm)
3. Remove the assist handle.
Courtesy of FORD MOTOR COMPANY

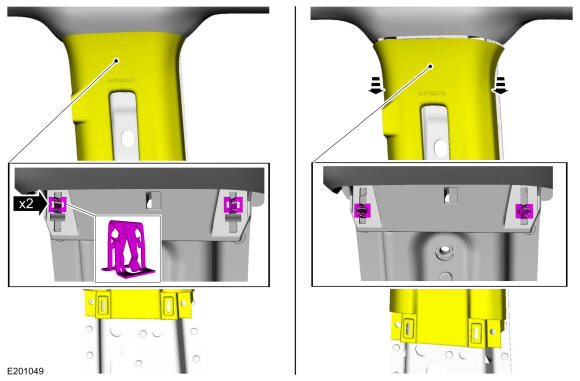

Release the clips.

Courtesy of FORD MOTOR COMPANY
Pull down on the upper B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
NOTE: The trim panel must be positioned downward to allow the upper clips to release correctly. Failure to follow this may cause damage to the trim panel.

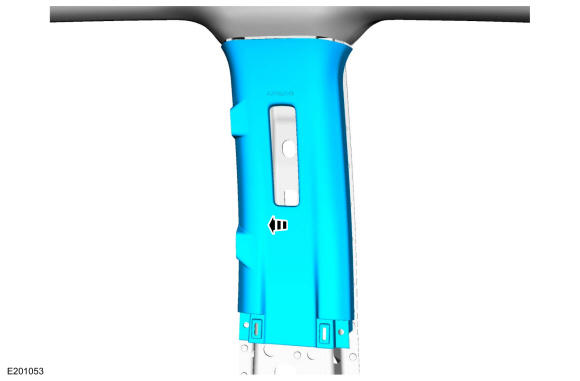

Remove the upper B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
