B-Pillar Trim Panel - Regular Cab: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Upper and Lower B-Pillar Trim Panels

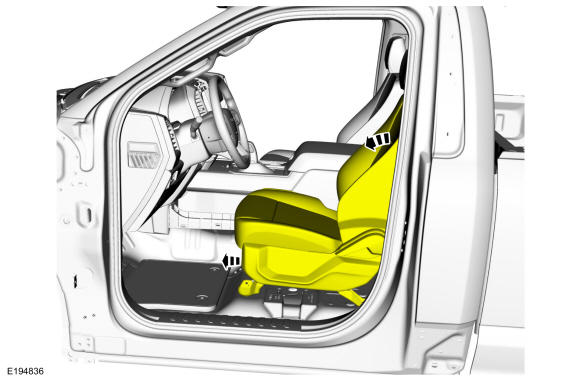

Position the seat and the backrest fully forward.

Courtesy of FORD MOTOR COMPANY
NOTE: The seat is removed for clarity.

NOTE: During installation, make sure to attach the scuffplate trim panel at the lower B-pillar trim panel first.

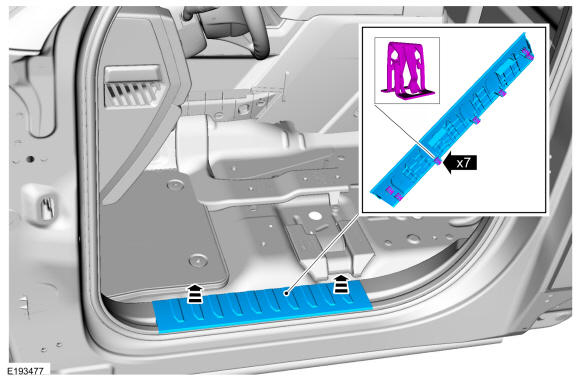

Release the clips and remove the scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY

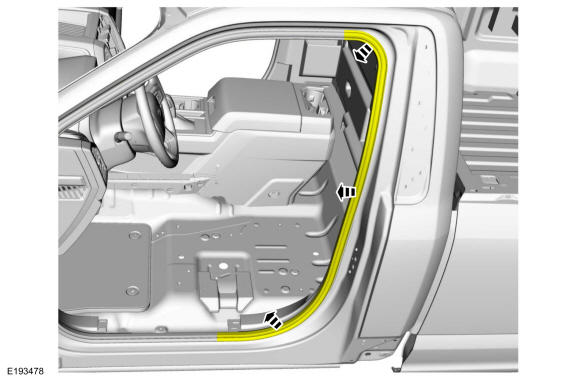

Position the weatherstrips aside.

Courtesy of FORD MOTOR COMPANY

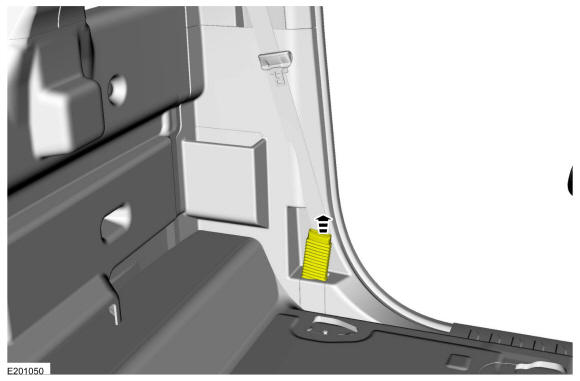

Release the clips and disengage the seatbelt pretensioner boot from the pretensioner bezel.

Courtesy of FORD MOTOR COMPANY

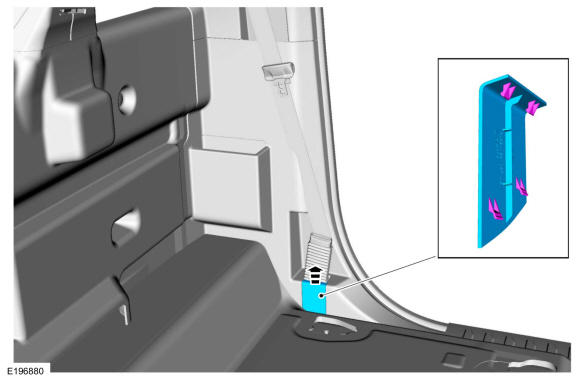

Remove the pretensioner bezel.

Courtesy of FORD MOTOR COMPANY

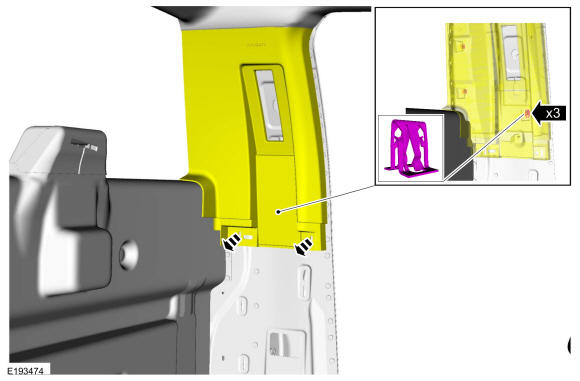

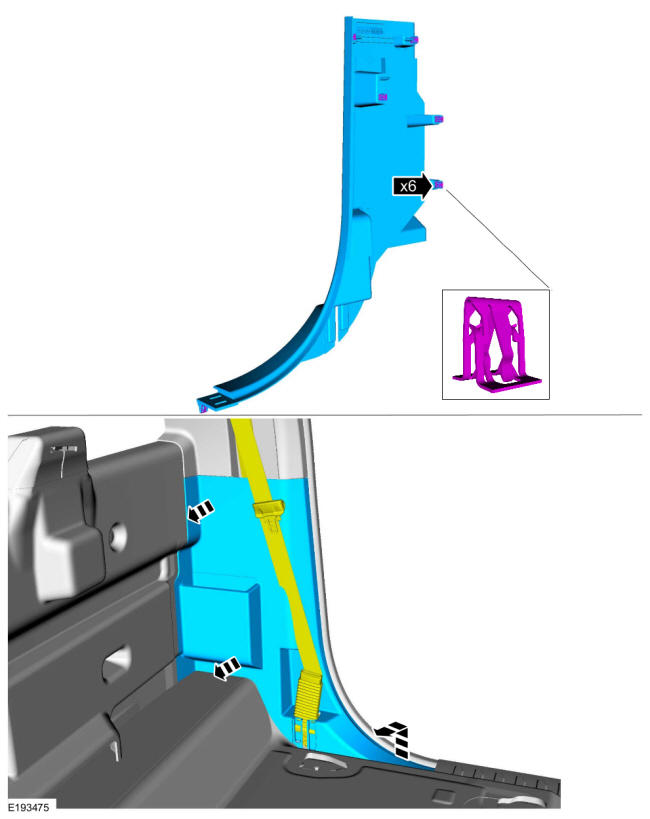

Release the clips and remove the B-pillar lower trim panel.

Courtesy of FORD MOTOR COMPANY

Upper B-Pillar Trim Panel

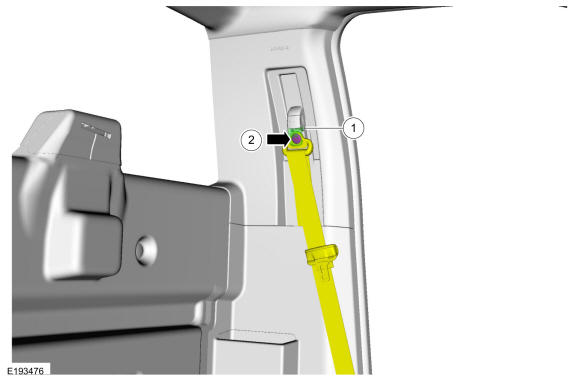

Remove the D-ring bolt and position aside the seatbelt.
1. Remove the D-ring trim cover.
2. Remove the D-ring bolt and position aside the seatbelt.
  Torque

  : 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
Release the clips and remove the upper B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY

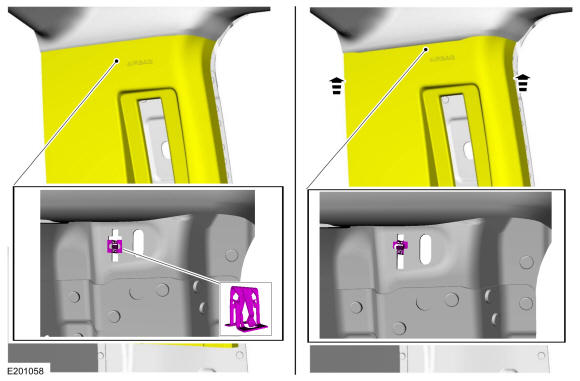

Push up on the upper B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
NOTE: The trim panel must be positioned upward to allow the upper clip to release correctly. Failure to follow this may cause damage to the trim panel.

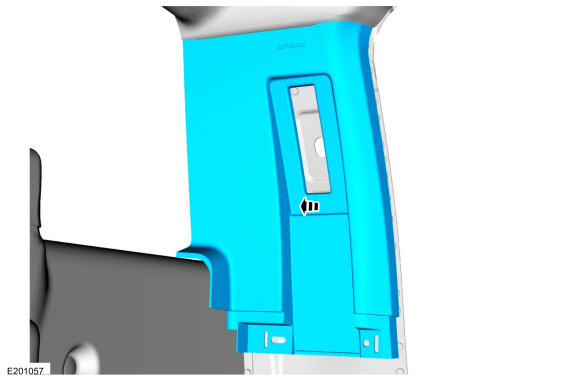

Remove the upper B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
