A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

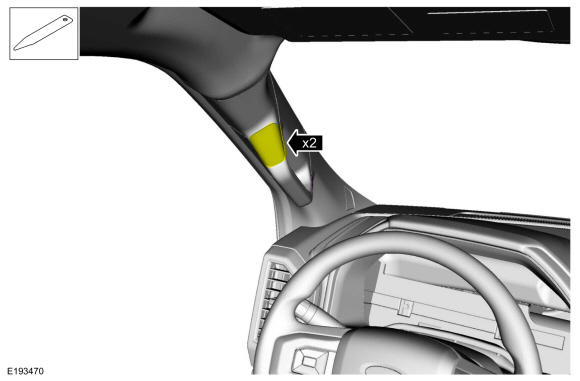

Position the assist handle covers aside. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

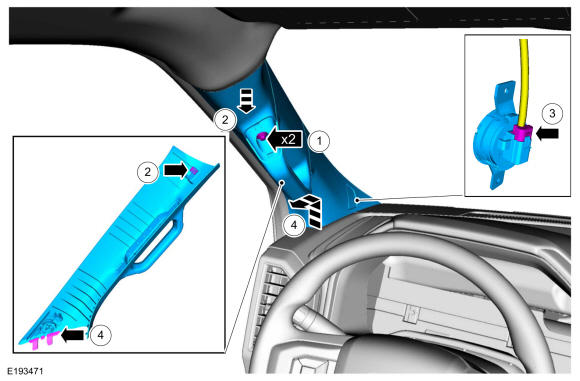

Remove the A-pillar trim panel.
1. Remove the bolts.
  Torque

  : 55 lb.in (6.2 Nm)
2. Release the retainer.
3. If equipped, disconnect the speaker electrical connector.
4. Release the clips and remove the A-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
