Rear Door Ajar Switch - SuperCab: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel - SuperCab .
Remove the water shield.

Courtesy of FORD MOTOR COMPANY

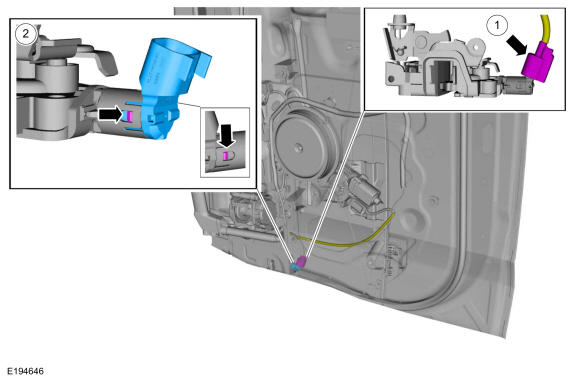

1. Disconnect the electrical connector.
2. Release the tabs and remove the rear door ajar switch.

Courtesy of FORD MOTOR COMPANY
