Passive Anti-Theft System (PATS) Center Antenna - Vehicles With: Floor Shift: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the floor console. Refer to: Floor Console .

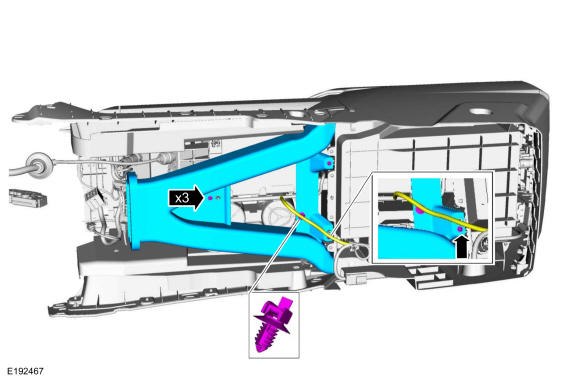

- Remove the screws, detach the wiring harness pin-type retainer, and remove the floor console air duct.
- Remove the PATS center antenna.

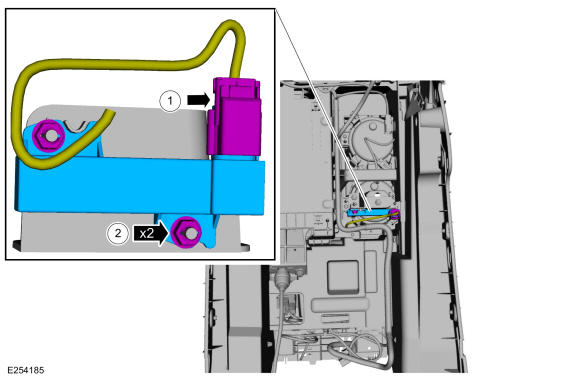

- Disconnect the PATS center antenna electrical connector.
- Remove the nuts.
