Passive Anti-Theft System (PATS) Center Antenna - Vehicles With: Column Shift: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

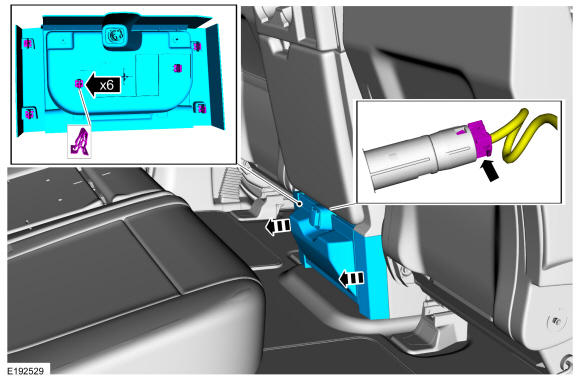

Release the clips, disconnect the auxiliary power outlet electrical connector and remove the rear trim panel.

Courtesy of FORD MOTOR COMPANY

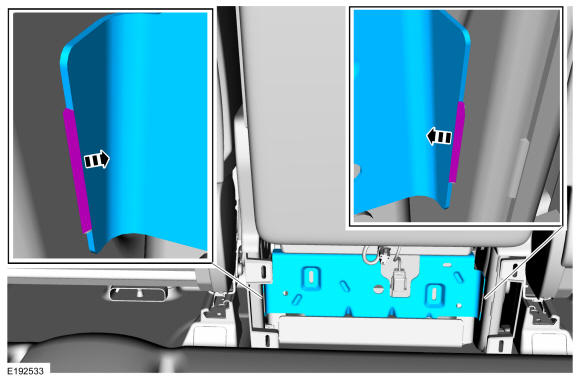

Release the tabs and remove the center seat lower rear trim panel.

Courtesy of FORD MOTOR COMPANY

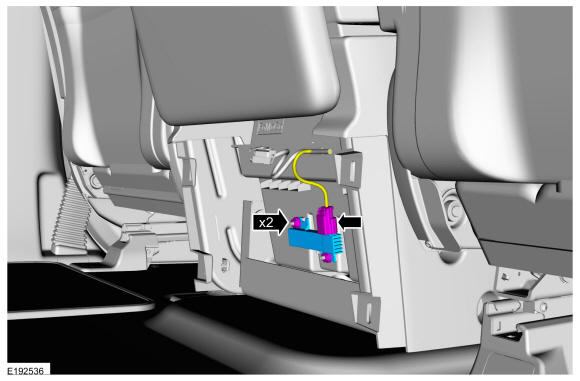

Remove the retainers, disconnect the electrical connector and remove the center PATS antenna.

Courtesy of FORD MOTOR COMPANY
