Passive Anti-Theft System (PATS) Transceiver: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column shrouds. Refer to: Steering Column Shrouds .

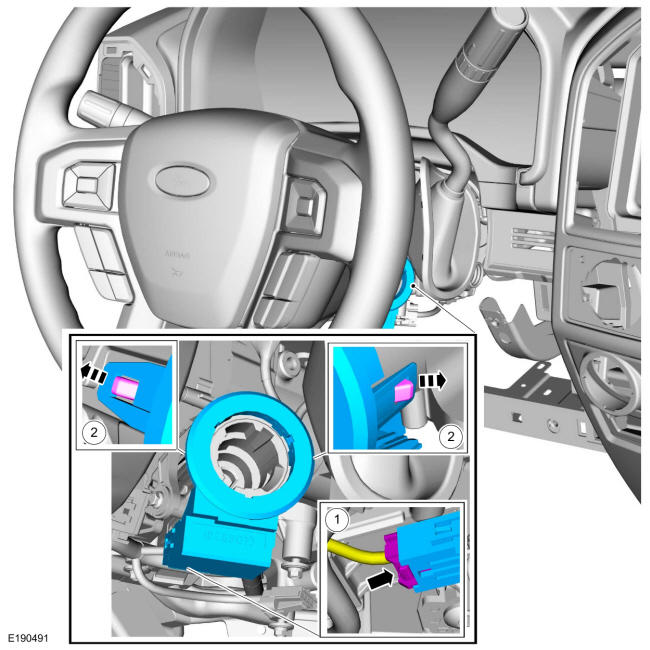

1. Disconnect the electrical connector.
2. Detach the tabs and remove the PATS transceiver.
