Selector Lever Knob: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the selector lever bezel. Refer to: Selector Lever Bezel .

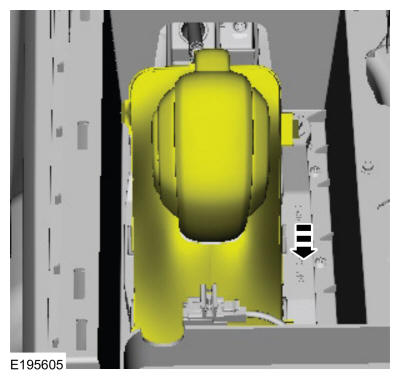

Shift the selector lever into 1.

Courtesy of FORD MOTOR COMPANY

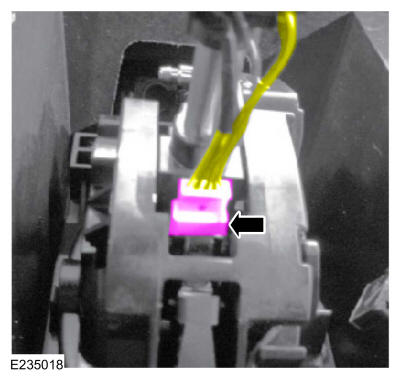

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

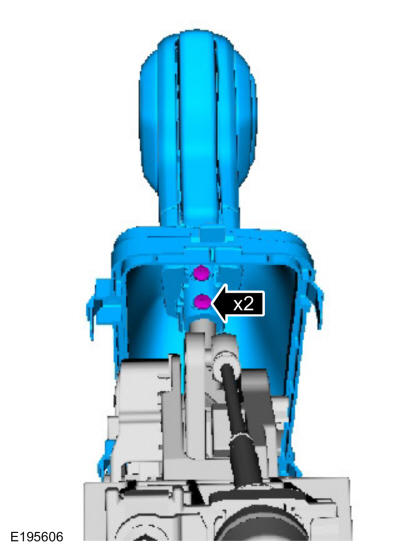

Remove the screws and the selector lever knob and boot.

Courtesy of FORD MOTOR COMPANY

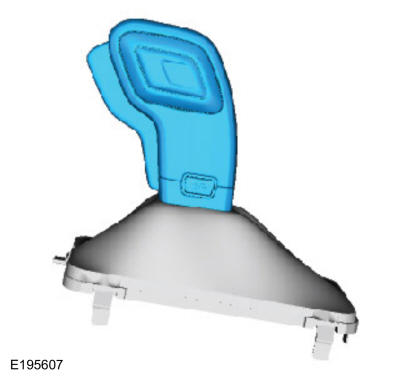

Remove the selector lever knob from the boot.

Courtesy of FORD MOTOR COMPANY
