Selector Lever Bezel: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

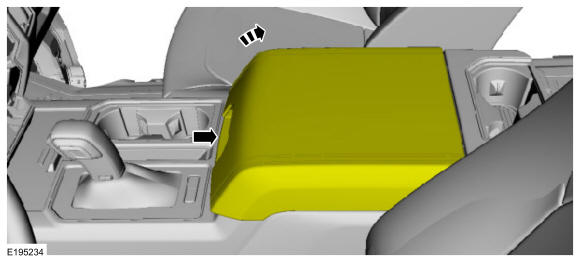

- Open the console.
- Remove the console trim panel.

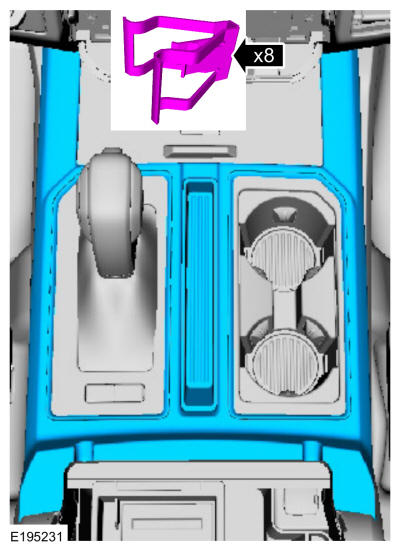

- Remove the selector lever bezel.

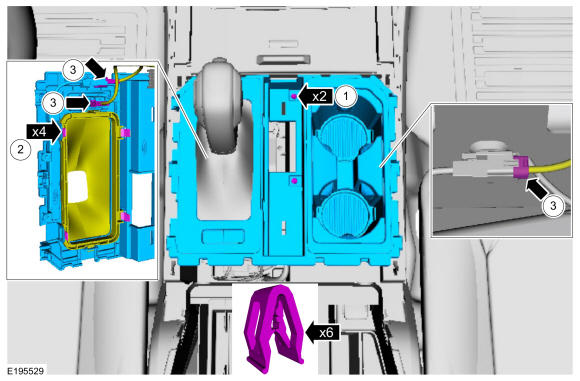

- Remove the screws and lift the bezel to access the selector lever knob boot and the electrical connectors.
- Release the tabs and disconnect the selector lever knob boot.
- Disconnect the electrical connectors.
