Selector Lever Assembly - Vehicles With: Column Shift: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

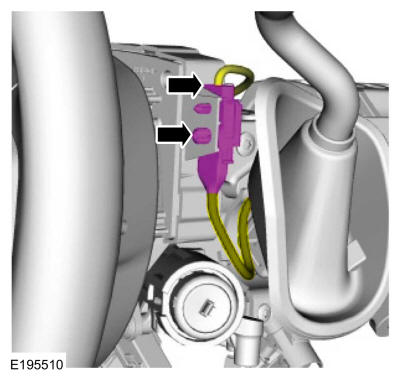

  2. Disconnect the selector lever assembly electrical connector.
    GFD464712Courtesy of FORD MOTOR COMPANY
  3. Remove the bolt and the selector lever assembly.

    Torque: 159 lb.in (18 Nm)

GFD464713Courtesy of FORD MOTOR COMPANY
