Brake Shift Interlock Actuator Manual Override - Vehicles With: Floor Shift

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Activation

NOTE: If it is necessary to use the brake shift interlock actuator override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown and the brake lights are not operational. Before driving the vehicle, verify the brake lights are working.

This vehicle is equipped with a brake shift interlock actuator feature that prevents the selector lever from being moved out of the PARK position when the ignition is in the ON position until the brake pedal is applied. If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is applied:

Fully apply the parking brake.

Courtesy of FORD MOTOR COMPANY

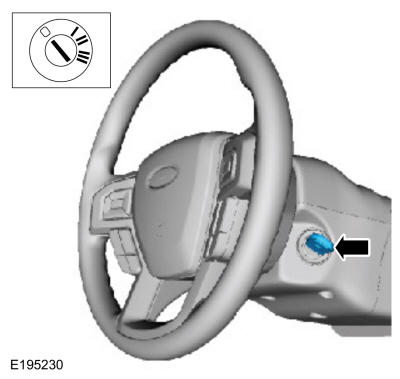

Set the ignition switch to the 0 position (ignition off) and remove the key.

Courtesy of FORD MOTOR COMPANY

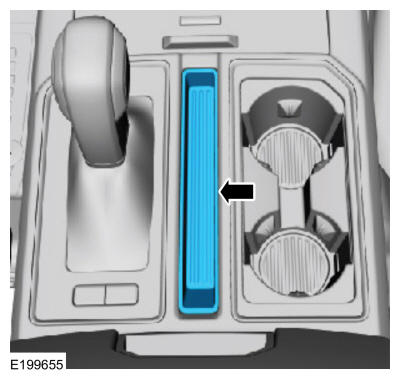

Remove the rubber insert.

Courtesy of FORD MOTOR COMPANY

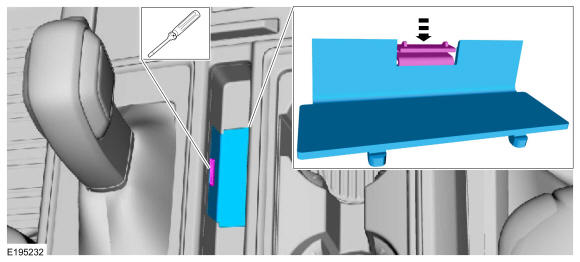

Using a small screwdriver, remove the access cover.

Courtesy of FORD MOTOR COMPANY

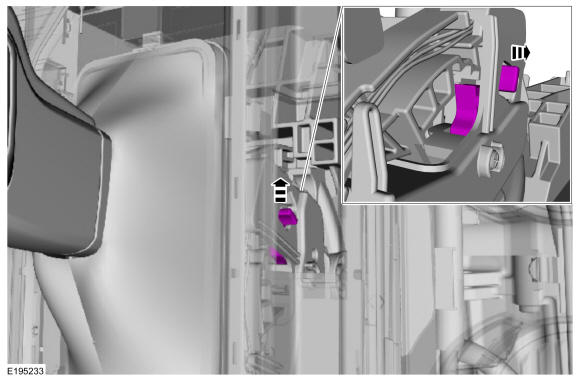

Move the brake shift interlock actuator forward, apply the brake pedal and position the selector lever into NEUTRAL.

Courtesy of FORD MOTOR COMPANY
Install the access cover.

Courtesy of FORD MOTOR COMPANY
Install the rubber insert.

Courtesy of FORD MOTOR COMPANY
Start the vehicle.
