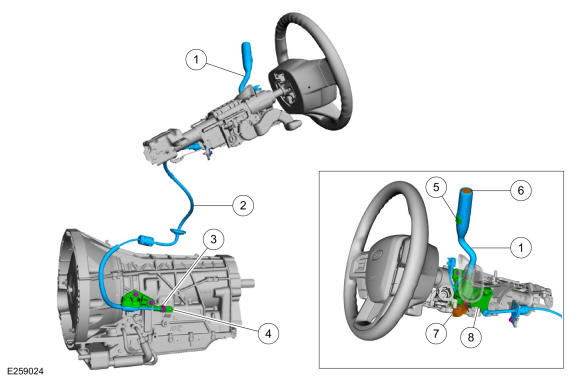

Column Shift - 10R80
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Selector lever |
| 2 |
Selector lever cable |
| 3 |
Selector lever cable adjuster lock |
| 4 |
Selector lever cable adjuster |
| 5 |
SelectShift™ switch |
| 6 |
Transmission control switch |
| 7 |
Brake shift interlock actuator |
| 8 |
Selector lever mechanism |
