Windshield Washer Reservoir: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

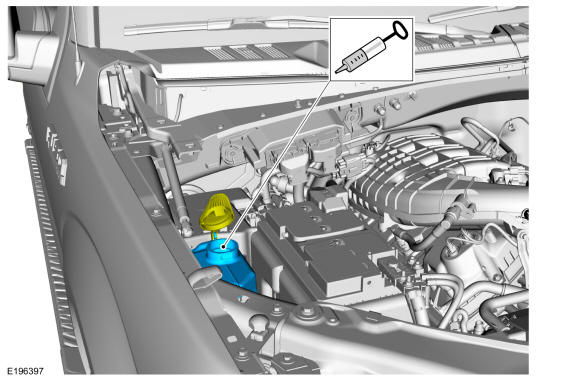

- Siphon the windshield washer fluid. Use the General Equipment: Fluid Suction Gun
- Remove the battery tray. Refer to: Battery Tray .

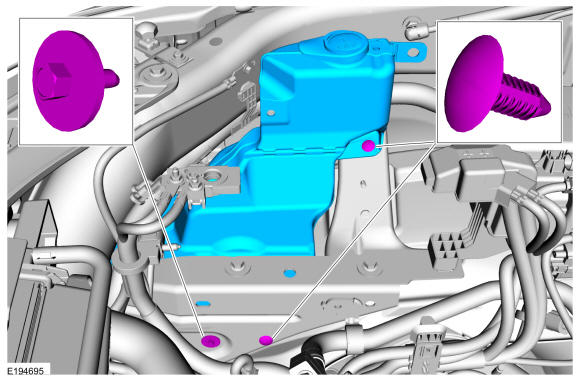

- Remove the pin-type retainers and the bolt.
Torque: 133 lb.in (15 Nm)
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: Be prepared to collect escaping fluid.

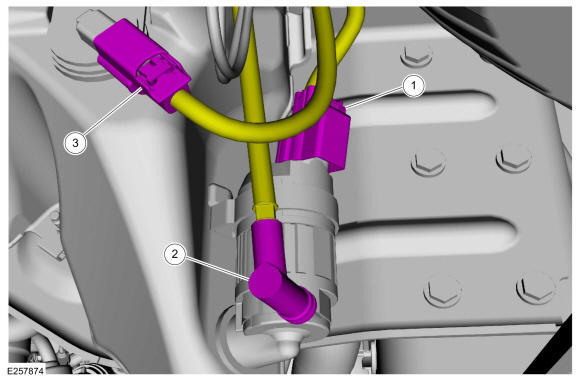

- Disconnect the washer pump electrical connector.
- Disconnect the fluid level sensor electrical connector.
- Disconnect the washer pump hose.

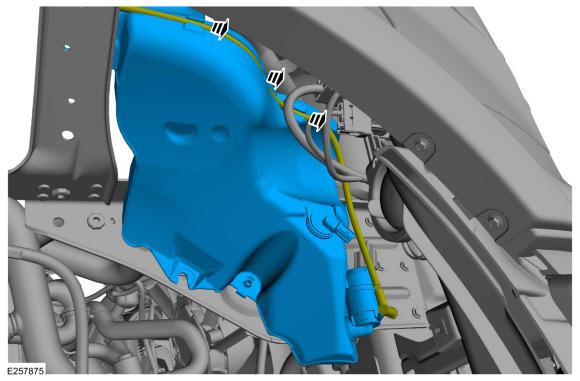

- Detach the washer hose and remove the windshield washer reservoir.
