Rain Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the interior rear view mirror. Refer to: Interior Rear View Mirror .

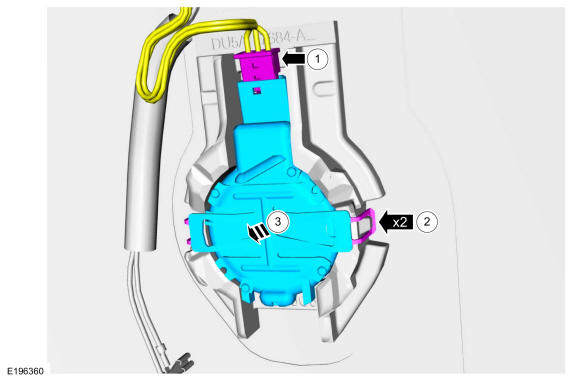

  2. Remove the rain sensor.

    1. Disconnect the electrical connector and position aside.
    2. Release the retainers.
    3. Remove the rain sensor.

GFD466951Courtesy of FORD MOTOR COMPANY
