Steering Column Upper Shaft: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

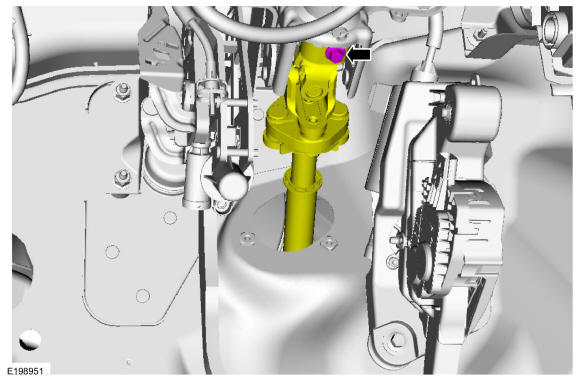

- Connect the upper shaft to the steering column and install the new bolt.
Torque: All models except Raptor: 22 lb.ft (30 Nm) Raptor: 41 lb.ft (55 Nm)

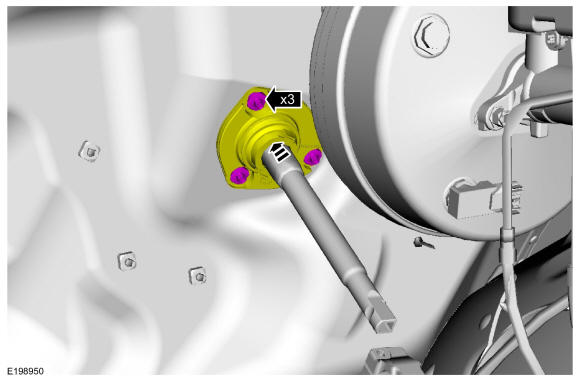

- Seat the dash seal and install the new bolts.
Torque: 106 lb.in (12 Nm)

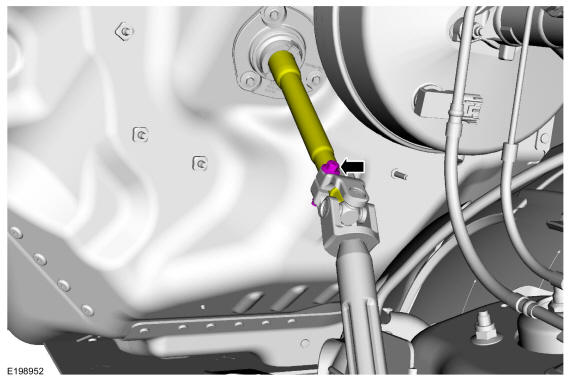

- Connect the upper shaft to the lower shaft and install the new bolt.
Torque: All models except Raptor: 22 lb.ft (30 Nm) | Raptor: 35 lb.ft (48 Nm)
