Steering Column Tilt Motor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the steering column. Refer to: Steering Column .

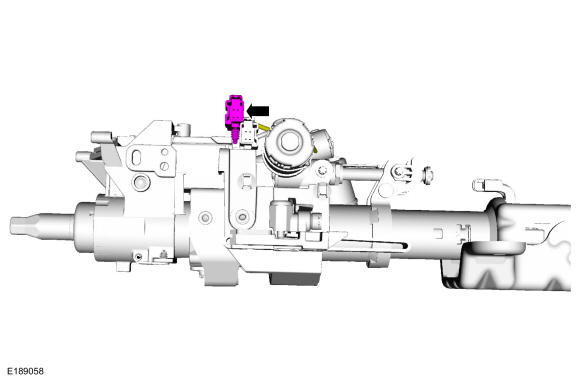

- Detach the tilt motor electrical connector retainer from the steering column.

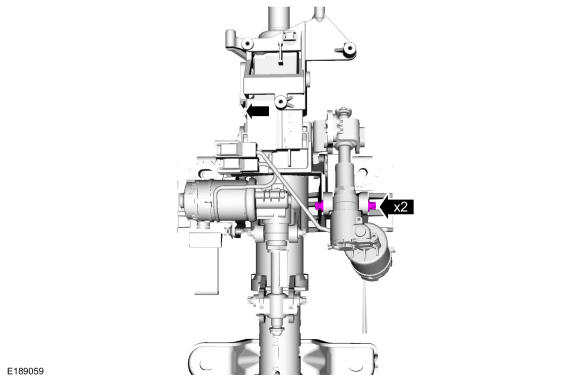

- Remove the tilt motor screws.
Torque: 62 lb.in (7 Nm)

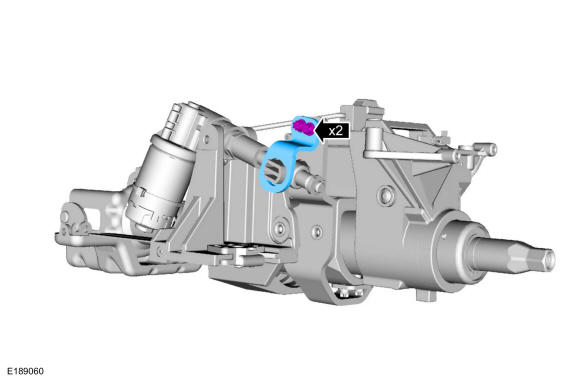

- Remove the screws and the trunnion nut capture bracket.
Torque: 62 lb.in (7 Nm)

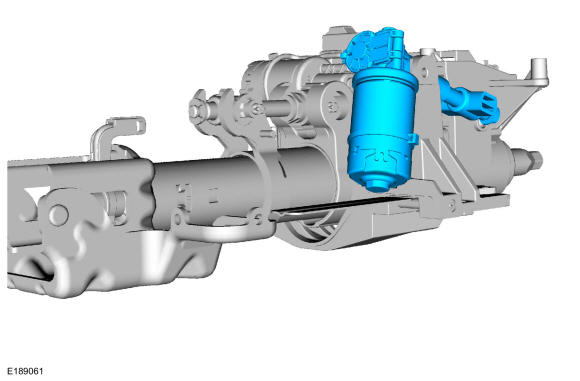

- Remove the tilt motor.
