Engine - Body Off

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD202669Courtesy of FORD MOTOR COMPANY
303-050 (T70P-6000) Lifting Bracket, Engine
GFD202516Courtesy of FORD MOTOR COMPANY
303-1518 Bracket, Engine Removal TKIT-2009C-F TKIT-2009C-ROW
GFD202670Courtesy of FORD MOTOR COMPANY
307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Floor Crane
Oil Drain Equipment
Transmission Jack
NOTE: Change the engine oil any time the turbocharger is removed from the engine. The passages in the block, located underneath the turbocharger, are direct passages to the lubrication system. Debris and/or coolant may enter the lubrication system and engine damage may occur.
NOTE: It is recommended that this component be serviced with the vehicle body removed. Refer to . If the body cannot be removed, refer to Engine - Body On .
NOTE: During the repair or installation of fuel-related components, cap, tape or otherwise appropriately protect all fuel openings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
  1. WARNING: Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.

    Refer to: Fuel System Pressure Release .

  2. Refer to: Body - 6.7L Power Stroke Diesel .
  3. Mark the location of the tires on the floor prior to rolling out the chassis. Roll the chassis out from under the body.

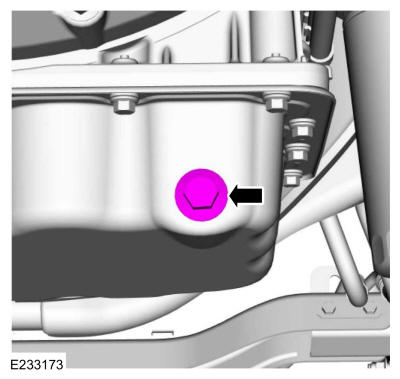

  4. Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    Torque: 19 lb.ft (26 Nm)

    GFD202579Courtesy of FORD MOTOR COMPANY

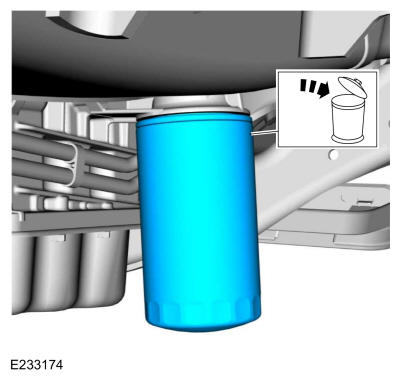

  5. Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment
    GFD202580Courtesy of FORD MOTOR COMPANY

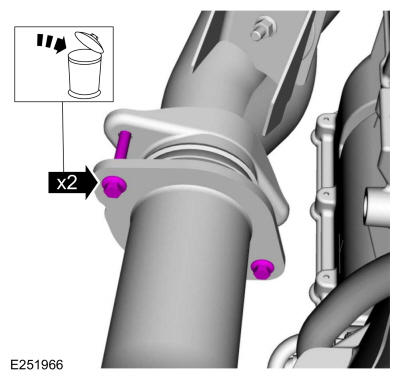

  6. Remove and discard the exhaust downpipe bolts.
    GFD202671Courtesy of FORD MOTOR COMPANY
  7. Loosen the clamp for the exhaust downpipe.
    GFD202672Courtesy of FORD MOTOR COMPANY

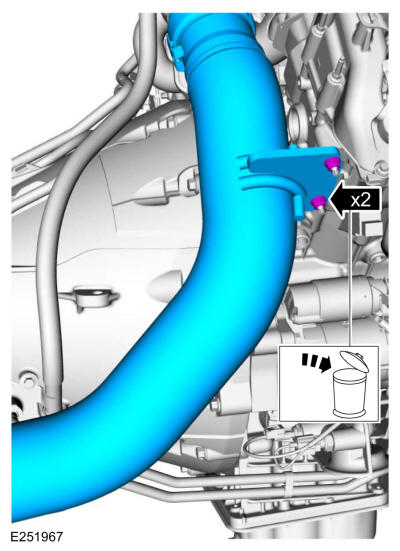

  8. Remove and discard the nuts. Remove the exhaust downpipe.
    GFD202673Courtesy of FORD MOTOR COMPANY
  9. If equipped, disconnect the block heater electrical connector.
    GFD202674Courtesy of FORD MOTOR COMPANY
  10. Remove the starter cable cover.
    GFD202675Courtesy of FORD MOTOR COMPANY
  11. Remove the nuts and position aside the starter cables.
    GFD202676Courtesy of FORD MOTOR COMPANY
  12. Remove the bolts and the starter.
    GFD202677Courtesy of FORD MOTOR COMPANY
  13. Remove the retainers and the access cover.
    GFD202678Courtesy of FORD MOTOR COMPANY

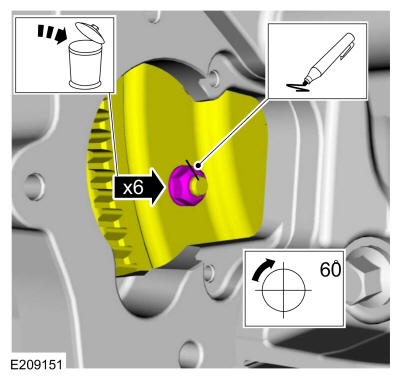

  14. NOTE: Index-mark the end of one torque converter stud and the flexplate for installation.
    NOTE: Using the crankshaft pulley bolts, turn the engine clockwise.

    Remove and discard the torque converter nuts.

    GFD202679Courtesy of FORD MOTOR COMPANY
  15. Remove the engine wire harness bracket bolt and the ground wire bolt. Position the wire harness on the engine.
    GFD202500Courtesy of FORD MOTOR COMPANY
  16. Disconnect the coolant hose retainer from the cooling fan stator.
    GFD202498Courtesy of FORD MOTOR COMPANY
  17. Remove the nuts and the cooling fan stator.
    GFD202499Courtesy of FORD MOTOR COMPANY
  18. Remove the bolt and position out the transmission cooling tubes.
    GFD202680Courtesy of FORD MOTOR COMPANY
  19. Remove the transmission cooler tube bracket nut from the RH side of the engine and position the transmission cooler tubes aside.
    GFD202629Courtesy of FORD MOTOR COMPANY
  20. Disconnect the heater hose from the retainers. Disconnect the heater hose retainer from the frame.
    GFD202681Courtesy of FORD MOTOR COMPANY
  21. Remove the fuel tube bracket bolt from the LH side of the transmission.
    GFD202682Courtesy of FORD MOTOR COMPANY
  22. Remove the fuel tube bracket bolts from the transmission bellhousing.
    GFD202683Courtesy of FORD MOTOR COMPANY

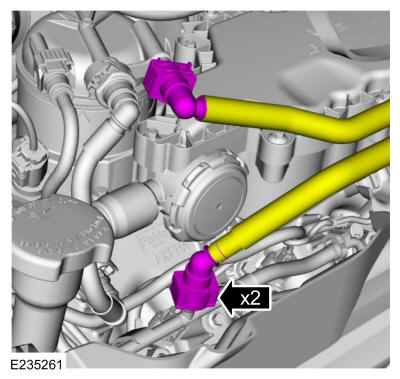

  23. NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components.

    Disconnect the fuel tubes and position aside. Refer to: Quick Release Coupling .

    GFD202684Courtesy of FORD MOTOR COMPANY
  24. Remove the retainer from the power steering line bracket.
    GFD202475Courtesy of FORD MOTOR COMPANY
  25. Remove the bolt and the power steering hose.
    GFD202685Courtesy of FORD MOTOR COMPANY
  26. Remove and discard the power steering tube O-ring seal.
    GFD202686Courtesy of FORD MOTOR COMPANY
  27. Disconnect the coolant hoses from the engine front cover tubes.
    GFD202687Courtesy of FORD MOTOR COMPANY
  28. Disconnect the retainer from the upper intake manifold.
    GFD202623Courtesy of FORD MOTOR COMPANY
    • Disconnect the wiring harness retainers.

    • Disconnect the MAP sensor, EP (exhaust pressure) sensor, EGRT sensor and the turbocharger actuator electrical connectors.

    GFD202688Courtesy of FORD MOTOR COMPANY

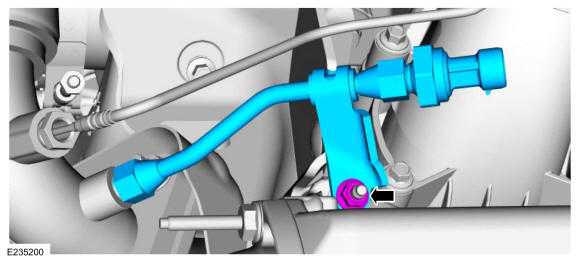

    • Remove the nut for the EP sensor tube.

    • Remove the EP sensor tube assembly.

    GFD202689Courtesy of FORD MOTOR COMPANY
  29. Remove the bolt for the transmission fluid level indicator tube.
    GFD202690Courtesy of FORD MOTOR COMPANY
    • Remove the engine and transmission oil level indicator tube bolts.

    • Remove the nut and position aside the tubes.

    GFD202624Courtesy of FORD MOTOR COMPANY

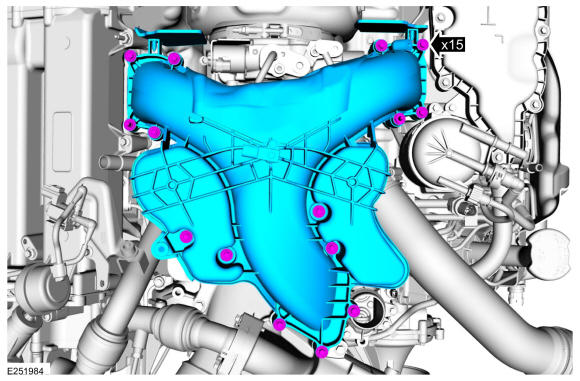

  30. NOTE: Cover or tape openings on the valve covers and lower intake manifold.

    Loosen the retainers and remove the upper intake manifold.

    GFD202691Courtesy of FORD MOTOR COMPANY

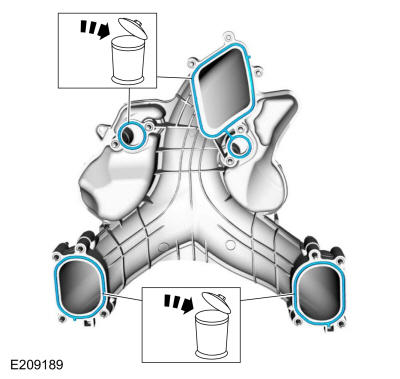

  31. Remove and discard the upper intake manifold gaskets.
    GFD202626Courtesy of FORD MOTOR COMPANY
  32. Release the clip and remove the CAC pipe.
    GFD202692Courtesy of FORD MOTOR COMPANY
  33. Remove the bolts and the turbocharger heat shield.
    GFD202693Courtesy of FORD MOTOR COMPANY
  34. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

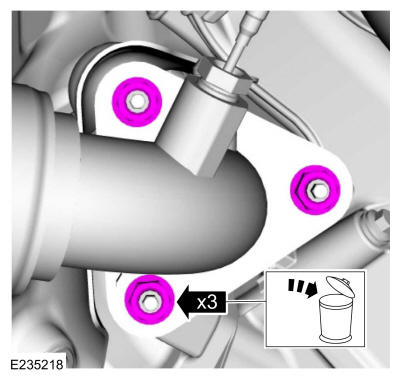

    Remove and discard the RH turbocharger inlet pipe nuts.

    GFD202694Courtesy of FORD MOTOR COMPANY

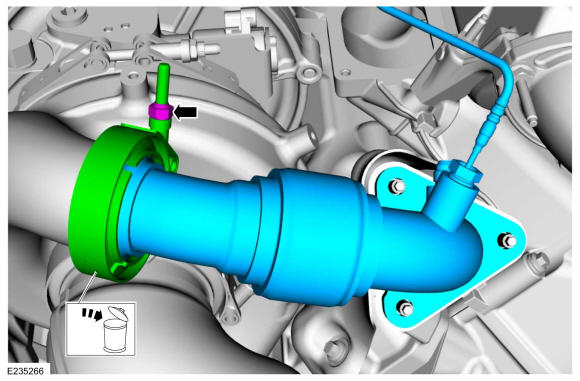

  35. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

    • Loosen the RH turbocharger inlet pipe clamp and remove the RH turbocharger inlet pipe.

    • Remove and discard the clamp.

    GFD202695Courtesy of FORD MOTOR COMPANY

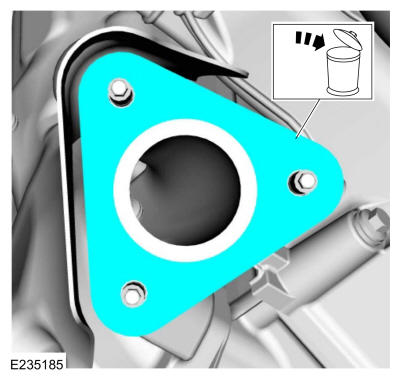

  36. Remove the discard the RH turbocharger inlet pipe gasket.
    GFD202696Courtesy of FORD MOTOR COMPANY
  37. Remove the bolt for the turbocharger outlet pipe.
    GFD202538Courtesy of FORD MOTOR COMPANY

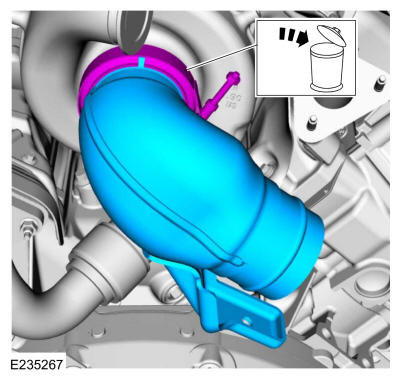

  38. Remove the clamp and the turbocharger outlet pipe. Discard the clamp.
    GFD202697Courtesy of FORD MOTOR COMPANY

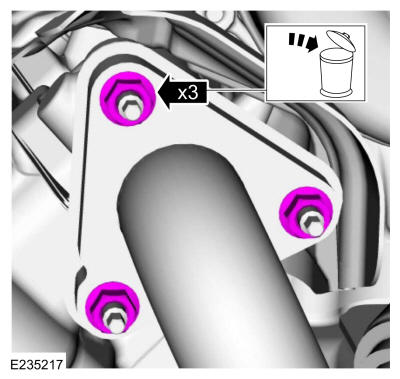

  39. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

    Remove and discard the LH turbocharger inlet pipe nuts.

    GFD202698Courtesy of FORD MOTOR COMPANY

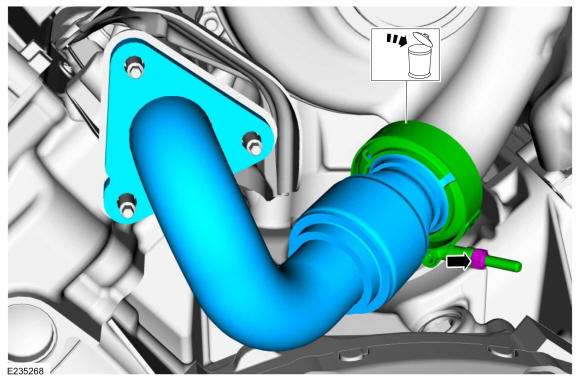

  40. NOTE: Do not bend or twist the turbocharger inlet pipes or damage to the bellows on the turbocharger inlet pipes may occur.

    • Loosen the LH turbocharger inlet pipe clamp and remove the LH turbocharger inlet pipe.

    • Remove and discard the clamp.

    GFD202699Courtesy of FORD MOTOR COMPANY

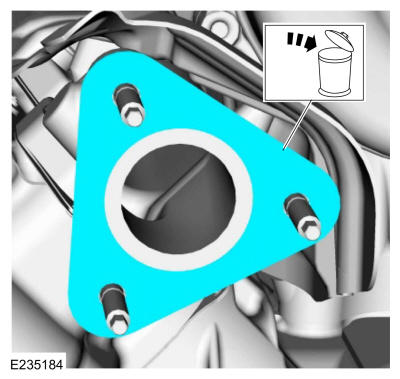

  41. Remove the discard the LH turbocharger inlet pipe gasket.
    GFD202700Courtesy of FORD MOTOR COMPANY

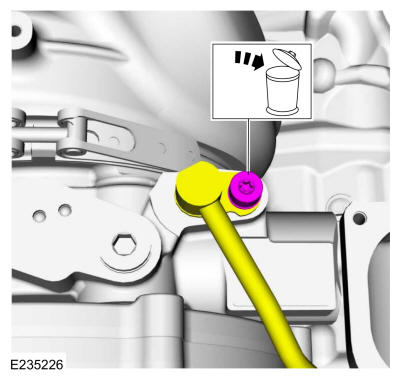

  42. Remove and discard the bolt for the turbocharger coolant outlet tube.
    GFD202701Courtesy of FORD MOTOR COMPANY
  43. Loosen the turbocharger inlet boot clamps.
    GFD202702Courtesy of FORD MOTOR COMPANY

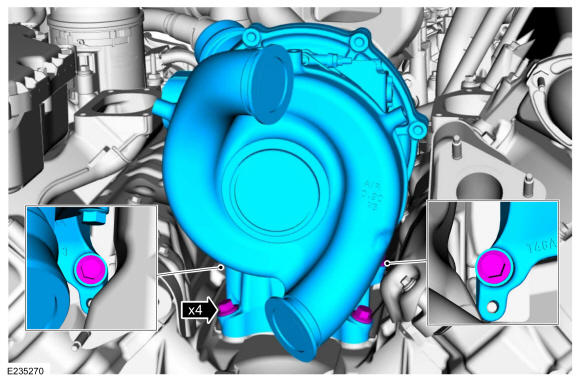

    • NOTE: The turbocharger mounting bolts are torque-to-yield design and cannot be reused.
      NOTE: Lift the turbocharger off of the locating dowels before positioning rearward for removal.

      Remove and discard the turbocharger mounting bolts.

    • Remove the turbocharger.

    GFD202703Courtesy of FORD MOTOR COMPANY

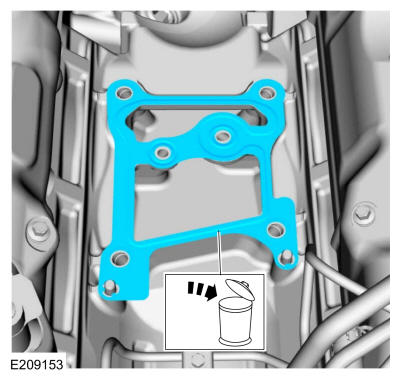

  44. Remove and discard the turbocharger mounting gasket.
    GFD202704Courtesy of FORD MOTOR COMPANY
  45. Remove the turbocharger inlet boot.
    GFD202705Courtesy of FORD MOTOR COMPANY
  46. Install Special Service Tool: 303-1518 Bracket, Engine Removal.

    Torque: 41 lb.ft (55 Nm)

    GFD202517Courtesy of FORD MOTOR COMPANY
  47. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Torque: 18 lb.ft (25 Nm)

    GFD202706Courtesy of FORD MOTOR COMPANY
  48. NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage.

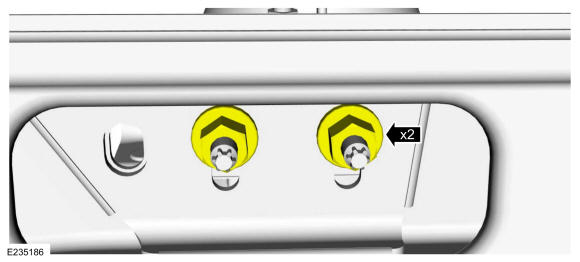

    Loosen the transmission support insulator nuts.

    GFD202519Courtesy of FORD MOTOR COMPANY

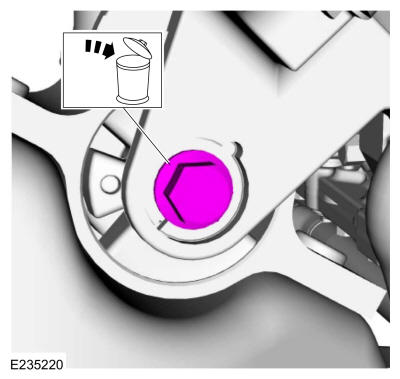

  49. NOTE: Failure to replace the engine mount cross bolts may result in engine mount damage.

    Remove and discard the LH engine mount cross through bolt.

    GFD202521Courtesy of FORD MOTOR COMPANY
  50. NOTE: Failure to replace the engine mount cross bolts may result in engine mount damage.

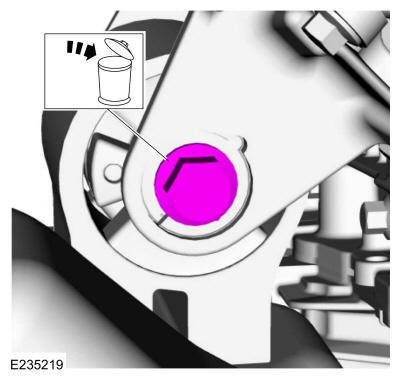

    Remove and discard the RH engine mount cross bolt.

    GFD202520Courtesy of FORD MOTOR COMPANY
  51. Remove the lower bellhousing bolts.
    GFD202707Courtesy of FORD MOTOR COMPANY
  52. NOTE: Do not support the transmission by the fluid pan, failure to follow instruction may result in serious damage to the transmission.

    Position a transmission jack and support the transmission. Use the General Equipment: Transmission Jack

  53. Remove the LH side bellhousing bolts.
    GFD202708Courtesy of FORD MOTOR COMPANY
  54. Remove the RH side bellhousing bolts.
    GFD202709Courtesy of FORD MOTOR COMPANY
  55. NOTE: During removal of the engine, the engine oil cooler will pass very close to the frame crossmember. Remove the engine slowly, continually checking to make sure the engine oil cooler does not hit the frame crossmember, or component damage may occur.
    NOTE: After the engine is removed, position the engine close to the floor in case of lifting crane failure. Failure to lower the engine may result in engine damage.

    • Position a floor crane and connect to the engine removal bracket. Use the General Equipment: Floor Crane

    • Install a suitable ratchet strap from the arm of the floor crane to the engine lifting bracket to adjust the angle of the engine.

    • Raise and remove the engine from the vehicle.

    GFD202710Courtesy of FORD MOTOR COMPANY
  56. Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD202711Courtesy of FORD MOTOR COMPANY
  57. NOTE: Failure to inspect the components for debris may result in repeat failures.
    NOTE: It may be necessary to use a borescope to inspect the components.

    When an engine or turbocharger is replaced due to a failure, inspect the following components for potential metal debris. If evidence of debris is found, clean or replace the components as needed.

    • CAC and the CAC tubes

    • Intake air system

    • Exhaust manifolds

    • EGR cooler and pipes

    • Diesel Oxidation Catalyst (DOC)

    • Turbocharger (on engine failure only)
