Valve Tappets: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

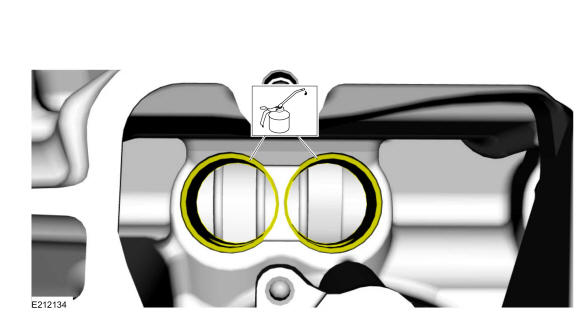

- Apply clean engine oil to the valve tappet bores.
Material: Motorcraft ® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)
-
NOTE: To prevent engine damage, keep the valve tappets in the order in which they were removed. Install all valve tappets back in their original positions or engine damage may occur.NOTE: Always keep the valve tappets in the upright position or the hydraulic lash adjuster may fall out.

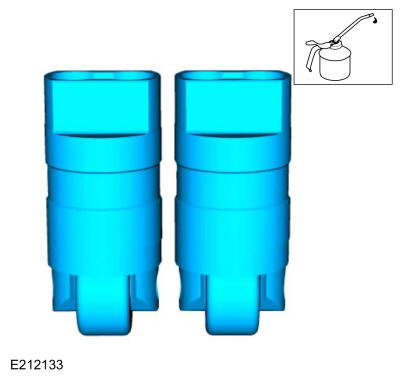

Apply clean engine oil to the valve tappets.
Material: Motorcraft ® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)
-
NOTE: To prevent engine damage, keep the valve tappets in the order in which they were removed. Install all valve tappets back in their original positions or engine damage may occur.NOTE: Always keep the valve tappets in the upright position or the hydraulic lash adjuster may fall out.

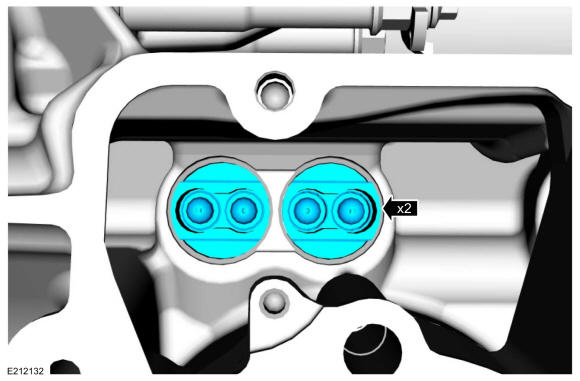

Install the valve tappets.

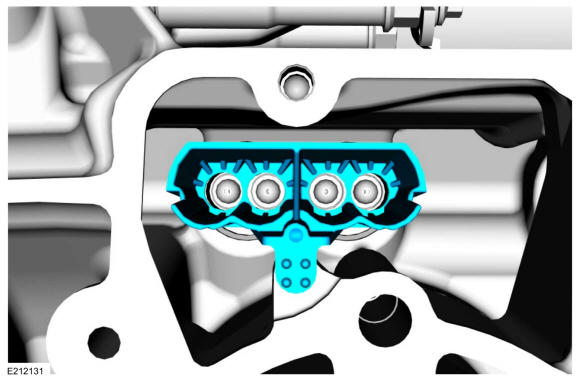

- Install the valve tappet guide(s). Verify that the retainer is fully seated.
- Install the RH cylinder head or LH cylinder head. Refer to: Cylinder Head RH . Refer to: Cylinder Head LH .
