Valve Cover RH: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For EXPORT ONLY vehicles (outside US/Canada) an Export Supplement is provided and should be referenced to identify differences that can impact service procedures. Vehicles can be identified by referring to the underhood Vehicle Emission Control Information (VECI) label which states, "Not certified for US EPA or CARB Regulations".
- Remove the following items:
- Refer to: Exhaust Gas Recirculation (EGR) Cooler .
- Remove the RH fuel injectors. Refer to: Fuel Injectors .
- Remove the RH fuel rail. Refer to: Fuel Rail .
- Remove the RH glow plugs. Refer to: GLOW PLUGS .
-
- Remove the bolt and disconnect the engine wire harness retainers.
- Pull forward to disconnect the engine wire harness retainer and then pull up to disconnect the other retainer. Position aside the engine wire harness.
- Disconnect the retainer from the stud bolt and the fuel return hose from the retainer.
-
NOTE: Mark the location of the fasteners prior to removing the valve cover.
Remove the retainers and the RH valve cover.

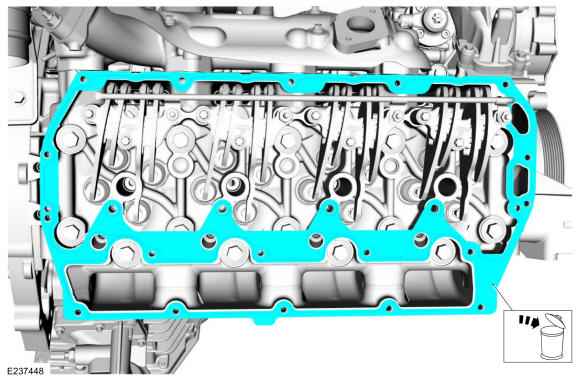

- Remove and discard the valve cover gasket.
-
NOTE: Use the notch in the valve cover to aid in removing the fuel injector-to-valve cover seal.

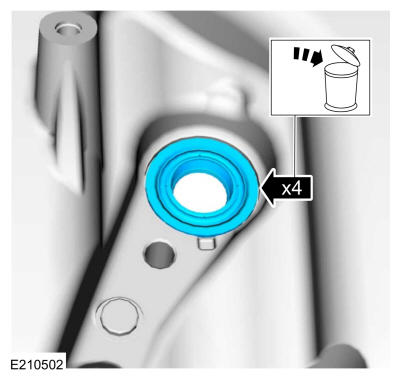

Remove and discard the fuel injector-to-valve cover seals.
