Valve Cover RH: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Verify that the fuel injector-to-valve cover seal is squarely seated in the valve cover.

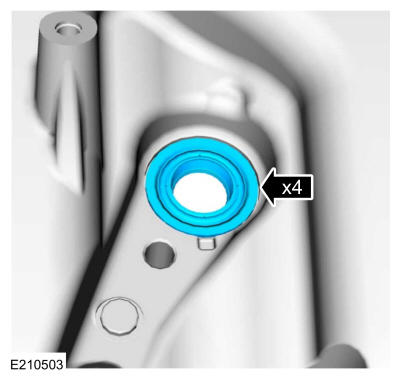

Using a 22 mm (0.866 in) socket or equivalent, install the new fuel injector-to-valve cover seals.

Courtesy of FORD MOTOR COMPANY

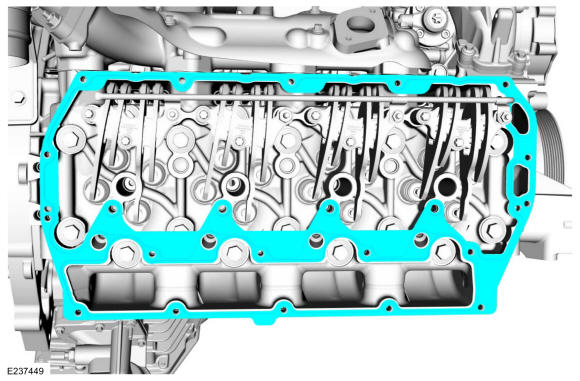

Install the new valve cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to install the fuel injectors during the valve cover installation may result in engine failure.

NOTE: The valve cover will have to be tightened a second time after the fuel injectors are installed.

Install the RH valve cover and the retainers.

Torque: 106 lb.in (12 Nm)

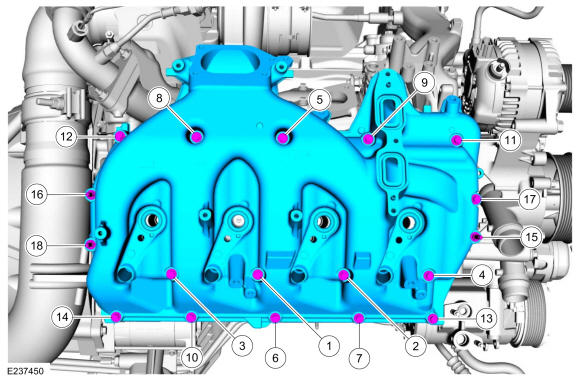

Fig 1: RH Valve Cover Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Only one fuel injector shown.

Remove and discard the O-rings and the copper combustion gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not apply engine oil to the fuel injectors.

NOTE: If the fuel injector is being reused, make sure to install it in the original location.

Install a new copper combustion gasket, O-ring seal and fuel injector return fuel O-ring on the fuel injectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to tighten the fuel injector correctly can lead to engine failure.

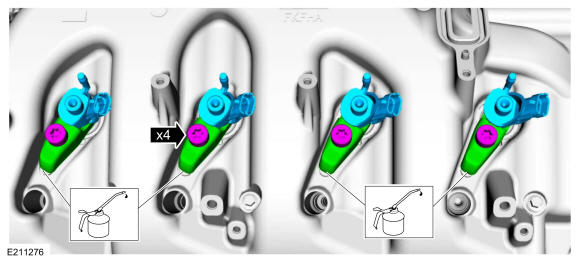

NOTE: Apply clean engine oil to the concave surface of the fuel injector hold-down clamp.

Install the fuel injectors, hold-down clamps and the new fuel injector bolts.

Material: Motorcraft ® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Torque:

Stage 1: 22 lb.ft (30 Nm)

Stage 2: 90 °

Courtesy of FORD MOTOR COMPANY

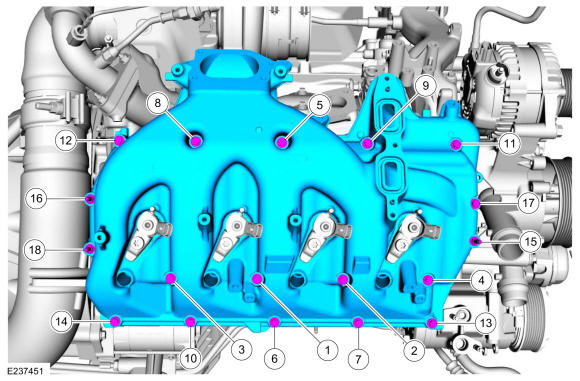

Final tighten the valve cover bolts in the sequence shown.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

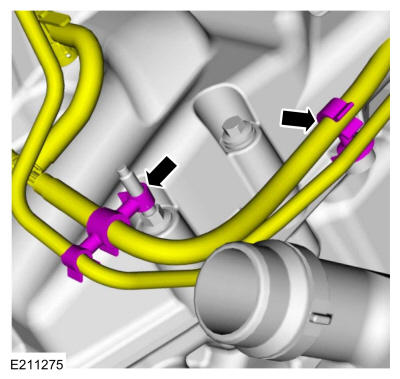

Connect the fuel return hose to the retainer and the retainer to the stud bolt.

Courtesy of FORD MOTOR COMPANY

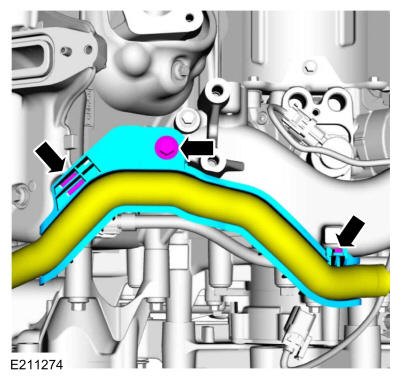

Position the engine wire harness and connect the harness retainers. Install the bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the RH glow plugs. Refer to: GLOW PLUGS .
2. Install the RH fuel rail. Refer to: Fuel Rail .
3. Install the RH fuel injectors. Refer to: Fuel Injectors .
4. Refer to: Exhaust Gas Recirculation (EGR) Cooler .
