Upper Oil Pan: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper oil pan stud bolts.

Courtesy of FORD MOTOR COMPANY

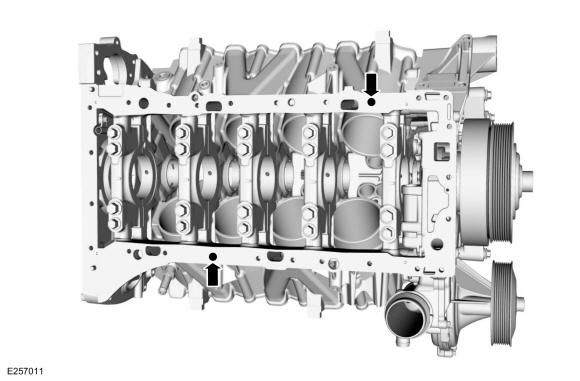

Position 2 guide studs in the cylinder block at the location shown.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

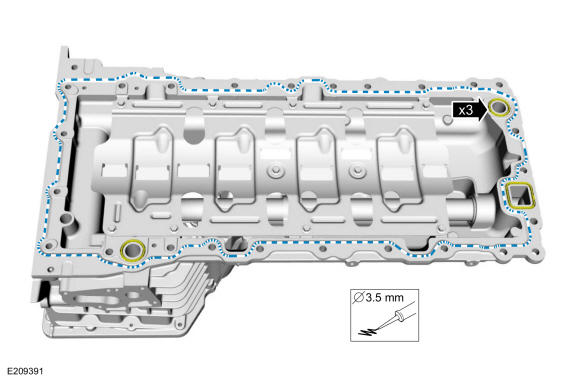

Position the press-in-place gaskets in the upper oil pan. Apply a 3.5 mm (0.137 in) bead of Motorcraft ® High Performance Engine RTV Silicone Sealant 1.0 mm (0.039 in) outward of the chamfer on the oil pan sealing face.

Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The bead of Motorcraft ® High Performance Engine RTV Silicone Sealant should cover the openings of the front and rear engine cover gaskets.

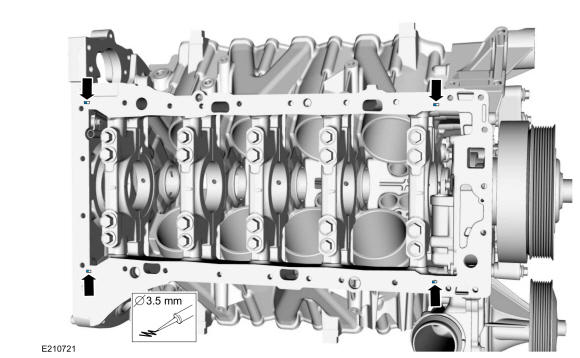

Apply a 3.5 mm (0.137 in) bead of Motorcraft ® High Performance Engine RTV Silicone Sealant 10 mm (0.393 in) long at the T-joint areas.

Material: Motorcraft ® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Final torque must be reached within 60 minutes of sealant application.

With the help of an assistant, install the upper oil pan and the bolts.

Torque:

Stage 1: 18 lb.in (2 Nm)

Stage 2: Tighten bolts 1 through 8, 10 through 14 and 19 through 25 to 18 Nm (159 lb-in) plus : 25 °

Stage 3: Tighten bolts 9 and 15 through 18 to 18 Nm (159 lb-in) plus : 90 °

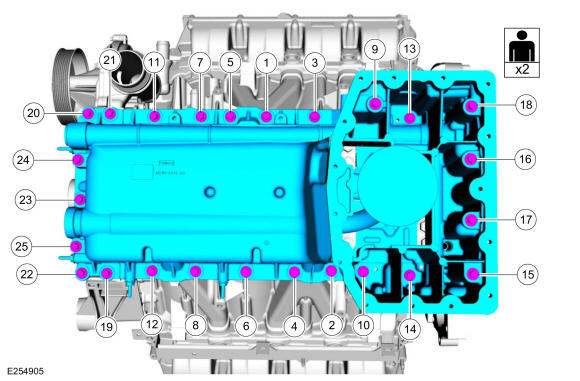

Fig 1: Upper Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY

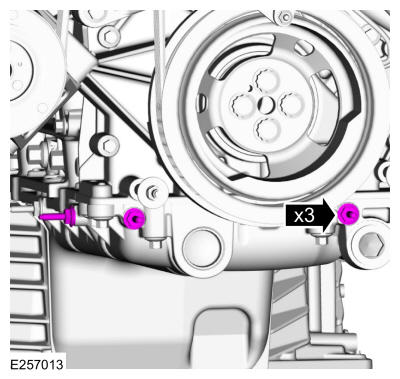

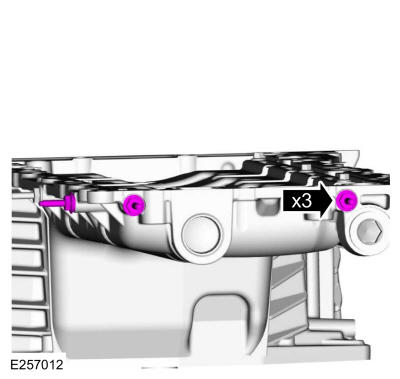

Install the upper oil pan stud bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

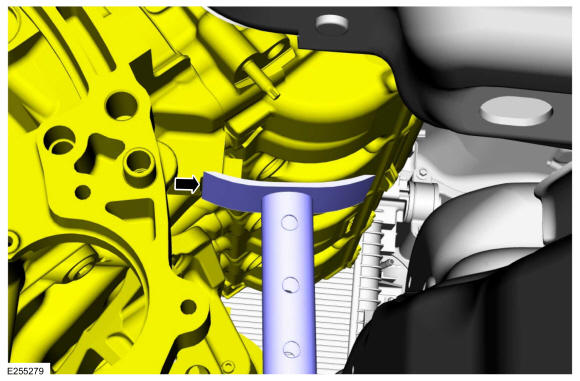

Using an adjustable stand, raise the engine. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

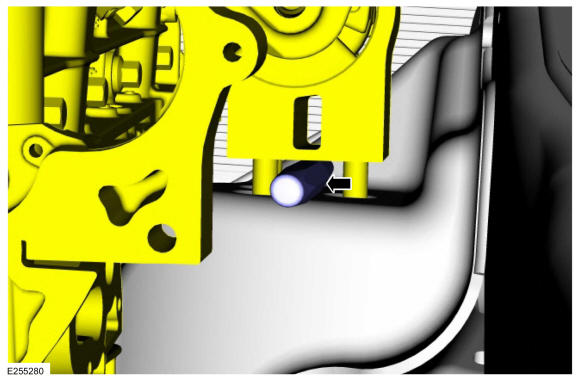

Remove the suitable tool from between the engine mount and the frame.

Courtesy of FORD MOTOR COMPANY
Lower the engine and remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Position the front wire harness and install the nuts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the nut for the battery wire harness.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

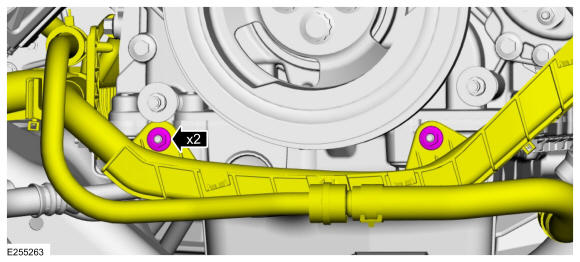

Position the transmission cooler tubes and install the nut.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Lower Oil Pan .
Refer to: Oil Cooler .
Refer to: Flexplate .

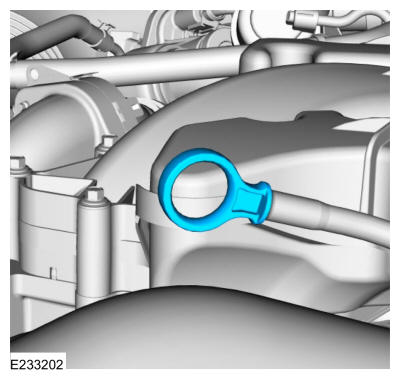

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
