Upper Intake Manifold: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install the new upper intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not slide the upper intake manifold across the lower intake manifold during installation. Failure to follow this may result in damage to the upper intake manifold gaskets.
- Remove the cover or tape from the valve covers and lower intake manifold prior to installing the upper intake manifold.
- Install the upper intake manifold and tighten the retainers.
  Torque:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 98 °

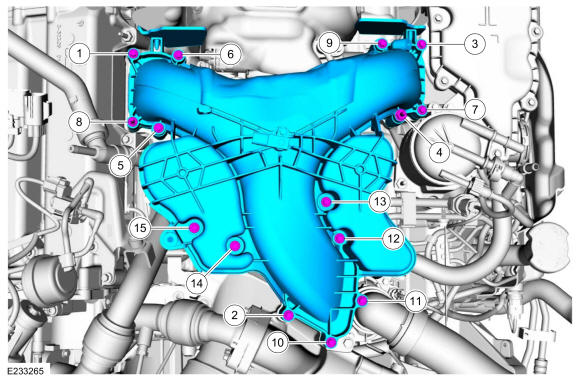

Fig 1: Upper Intake Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the engine oil level indicator tube bolt, nut and the transmission fluid level indicator tube bolt.
Torque:

Engine oil level indicator tube nut: 89 lb.in (10 Nm)

Engine oil level indicator tube bolt: 89 lb.in (10 Nm)

Transmission fluid indicator tube bolt: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the coolant hose retainer to the upper intake manifold.

Courtesy of FORD MOTOR COMPANY
- Connect the MAP sensor, EP sensor, EGRT sensor and the turbocharger actuator electrical connectors.
- Connect the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Charge Air Cooler (CAC) Intake Pipe .
2. Refer to: Cowl Panel .
