Oil Pump Screen and Pickup Tube: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Upper Oil Pan .

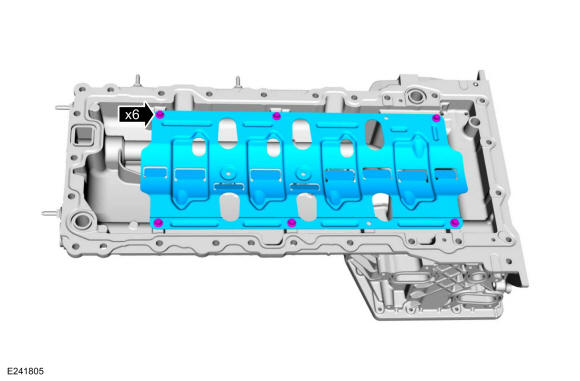

  2. Remove the bolts and the oil pan baffle.
    GFD202601Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the oil pump screen and pickup tube.
    GFD202602Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the O-ring seal.
GFD202603Courtesy of FORD MOTOR COMPANY
