Oil Pump Screen and Pickup Tube: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Apply clean engine oil to the O-ring seals prior to installing the oil pump screen and pickup tube.
Install new O-ring seal.
Material: Motorcraft ® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)

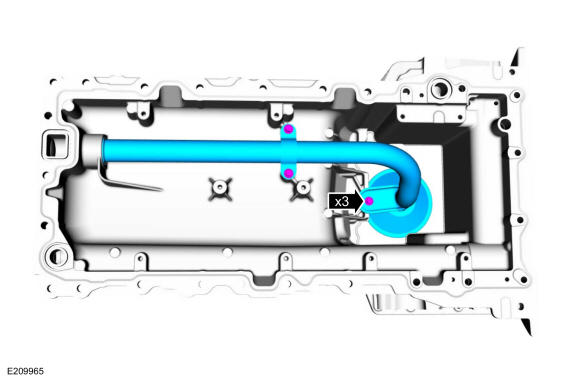

- Install the oil pump screen and pickup tube and bolts.
Torque: 89 lb.in (10 Nm)

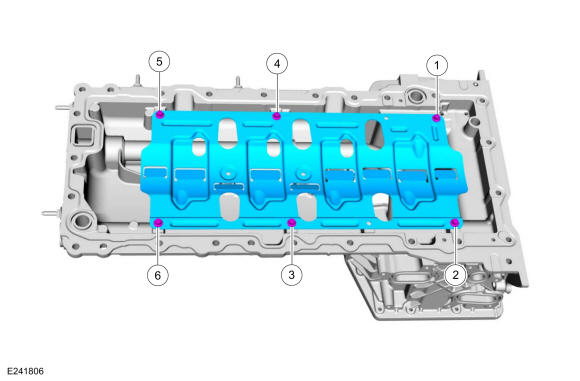

- Install the oil pan baffle and bolts.
Torque: 89 lb.in (10 Nm)
- Refer to: Upper Oil Pan .
