Oil Level Indicator and Tube: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Upper oil level indicator tube

Refer to: Jacking and Lifting - Overview .

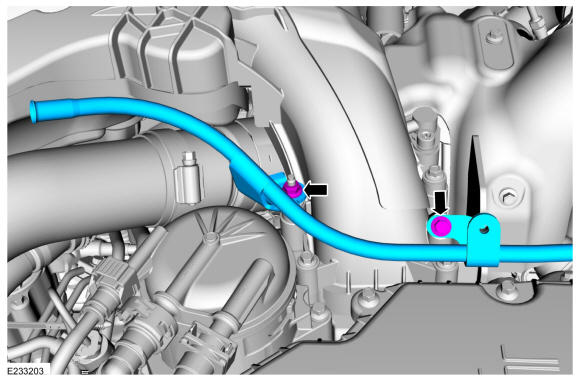

Remove the bolt and position aside the transmission oil level indicator tube.

Courtesy of FORD MOTOR COMPANY

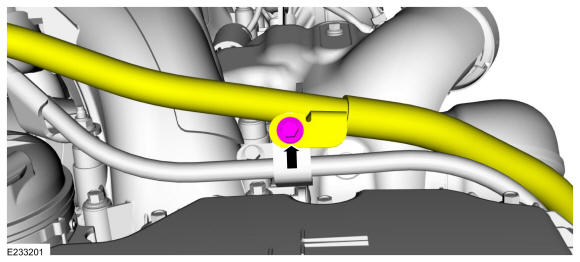

Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
- Remove the nut and bolt for the oil level indicator.
- From below, remove the oil level indicator tube from the engine rear cover.
Courtesy of FORD MOTOR COMPANY
Remove and discard the O-ring seals.

Courtesy of FORD MOTOR COMPANY

Lower oil level indicator tube
Refer to: Engine Rear Cover .

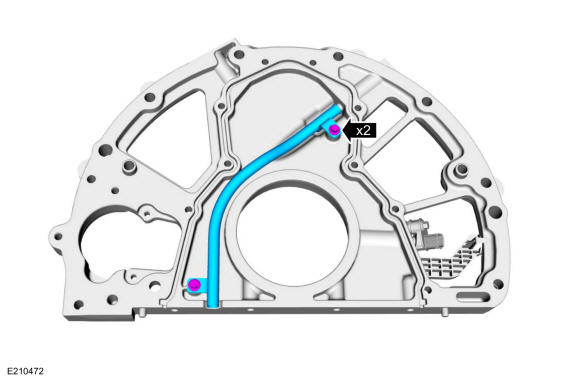

Remove the bolts and the lower oil level indicator tube.

Courtesy of FORD MOTOR COMPANY
