Oil Cooler: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
  2. Remove the oil cooler inlet hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD202585Courtesy of FORD MOTOR COMPANY
  3. Remove the clip and disconnect the heater hose.
    GFD202586Courtesy of FORD MOTOR COMPANY
  4. Remove the clip and disconnect the oil cooler outlet hose. Disconnect the coolant hose retainers from the upper oil pan.
    GFD202587Courtesy of FORD MOTOR COMPANY
  5. NOTE: In the event of catastrophic engine failure, always install a new oil cooler assembly. Foreign material cannot be removed from the oil cooler and engine damage may occur.

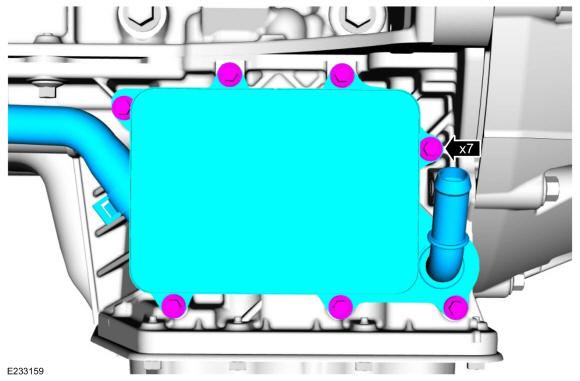

    Remove the bolts and the oil cooler.

    GFD202588Courtesy of FORD MOTOR COMPANY

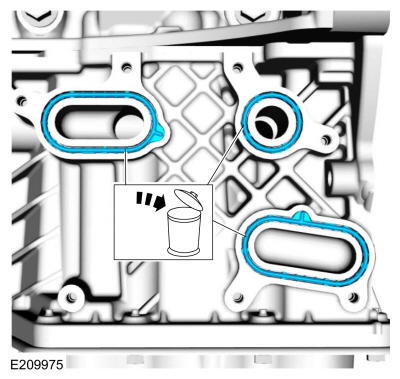

  6. Remove and discard the oil cooler gaskets.
    GFD202589Courtesy of FORD MOTOR COMPANY
  7. If necessary, remove the oil cooler outlet hose from the oil cooler. Use the General Equipment: Hose Clamp Remover/Installer
GFD202590Courtesy of FORD MOTOR COMPANY
