Oil Cooler: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- If necessary, install the oil cooler outlet hose onto the oil cooler. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: Make sure that the mating surfaces are clean and free of foreign materials.

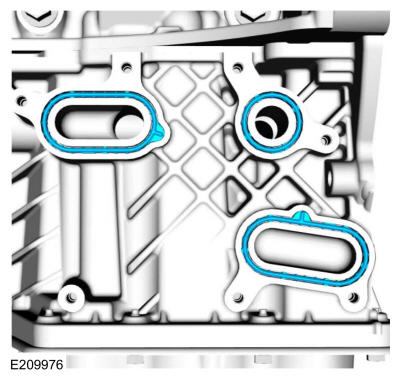

Install the new oil cooler gaskets.
-
NOTE: In the event of catastrophic engine failure, always install a new oil cooler assembly. Foreign material cannot be removed from the oil cooler and engine damage may occur.

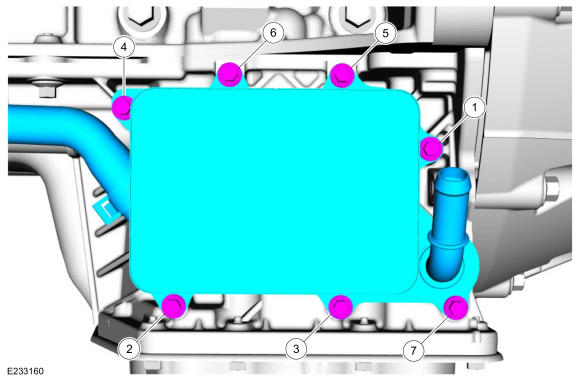

- Stage 1: Install the oil cooler and hand start number 2, 4 and 7 bolts.
- Stage 2: Hand start number 1, 3, 5 and 6 bolts.
- Stage 3: Tighten to 2 Nm (18 lb-in) in a counter clockwise sequence starting with the number 1 bolt.
- Stage 4: Tighten to 10 Nm (89 lb-in) in a counter clockwise sequence starting with the number 1 bolt.

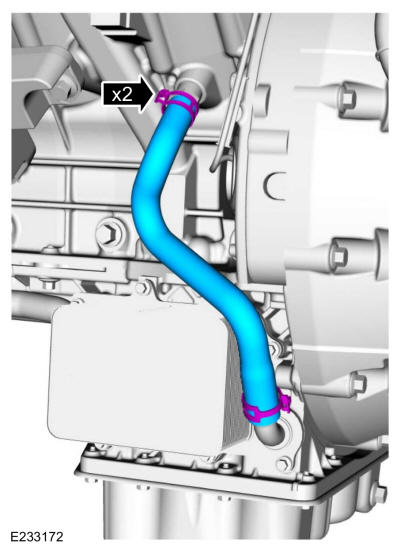

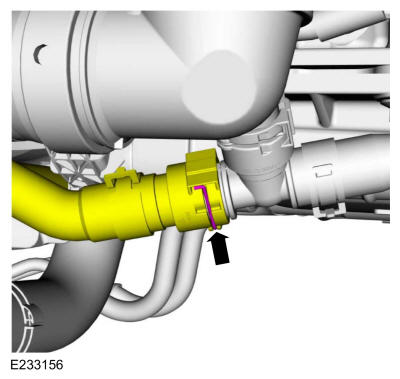

- Connect the oil cooler outlet hose and install the clip. Connect the coolant hose retainers to the upper oil pan.

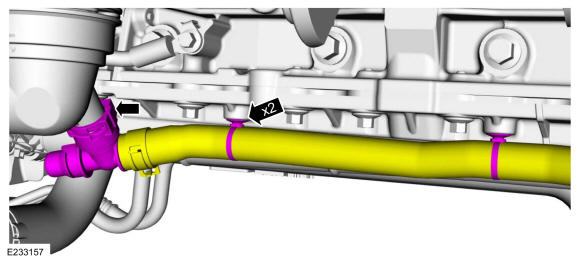

- Connect the heater hose and install the clip.
- Install the oil cooler inlet hose. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: Evaluate the cooling system condition before filling the engine cooling system. Failure to follow these instructions can result in damage to the engine.
Refer to: Cooling System Condition Evaluation .
- Check and top off the engine oil with the correct engine oil for the climate. Refer to: Specifications .
