Lower Oil Pan: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Refer to: Jacking and Lifting - Overview .
- Drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 19 lb.ft (26 Nm)
- Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment

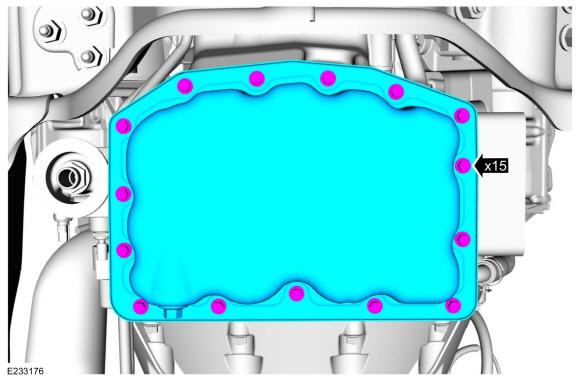

- Remove the bolts and the lower oil pan.
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.
Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A
Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
