Lower Intake Manifold: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

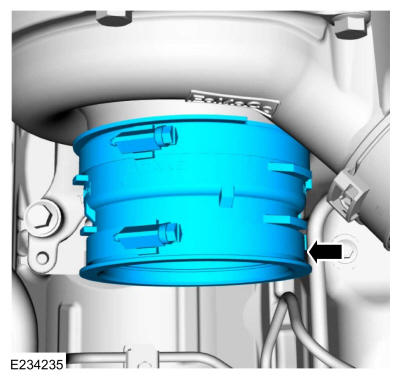

- If necessary, install the turbocharger inlet hose.

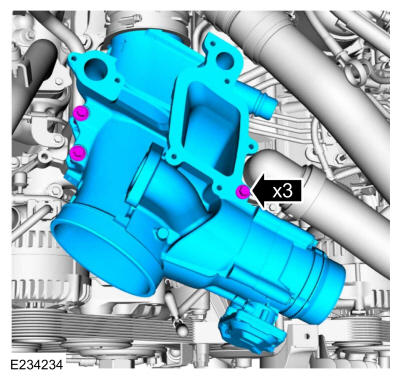

- Install the lower intake manifold and the bolts.
Torque: 18 lb.ft (24 Nm)

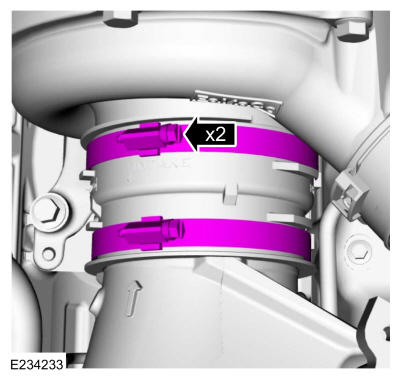

- Tighten the turbocharger inlet hose clamps.
Torque: 35 lb.in (4 Nm)
-
NOTE: The crankcase vent oil separator must be replaced whenever the crankcase vent oil separator outlet hose is disconnected from the lower intake manifold.
Refer to: Crankcase Vent Oil Separator .
- Using new gaskets, install the EGR cooler outlet pipe and the bolts.
Torque: 89 lb.in (10 Nm)
- Connect the EGRT electrical connector and wiring retainers.
- Connect the TB electrical connector.

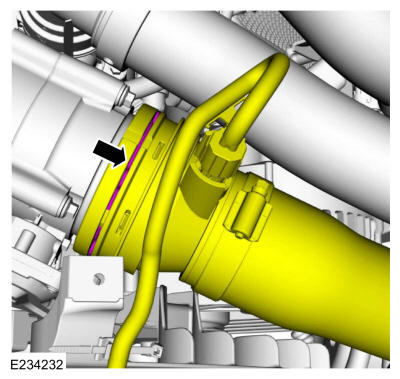

- Connect the CAC outlet tube to the TB and install the clip.
- Install the following items:
- Refer to: Air Cleaner Outlet Pipe .
- Refer to: Upper Intake Manifold .
