Engine Rear Cover: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

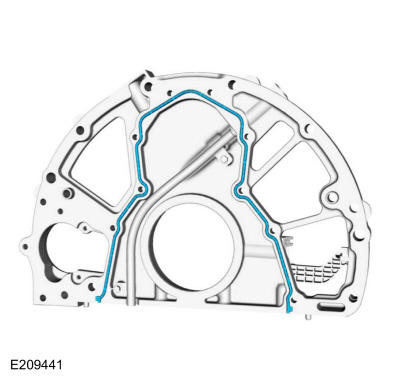

Install a new engine rear cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent engine damage, replace damaged or missing dowel pins before installing the engine rear cover.

Install the engine rear cover and the bolts.

Torque:

Tighten bolts 1 through 9 to : 89 lb.in (10 Nm)

Tighten bolt 10 to : 35 lb.ft (48 Nm)

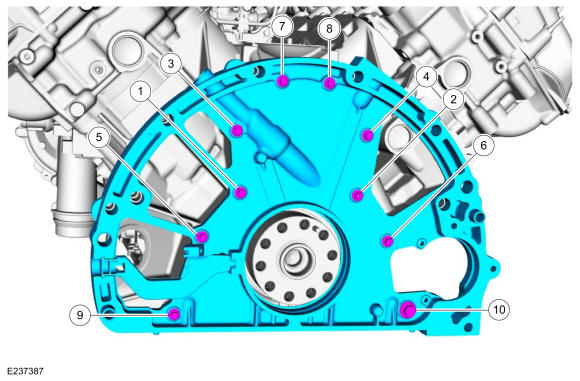

Fig 1: Engine Rear Cover Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Do not use magnetic screwdrivers or other magnetic tools around the CKP sensor and the crankshaft sensor pulse ring or damage to the components may occur.

Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the turbocharger downpipe bracket bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Crankshaft Rear Seal .
Refer to: Upper Oil Pan .
Install the upper oil level indicator and tube. Refer to: Oil Level Indicator and Tube .
