Engine Mount RH: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Change the engine oil any time the turbocharger is removed from the engine. The passages in the block, located underneath the turbocharger, are direct passages to the lubrication system. Debris and/or coolant may enter the lubrication system and engine damage may occur.
NOTE: For EXPORT ONLY vehicles (outside US/Canada), an Export Supplement is provided and should be referenced to identify differences that can impact service procedures. Vehicles can be identified by referring to the underhood Vehicle Emission Control Information (VECI) label which states, "Not certified for US EPA or CARB Regulations."
  1. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Refer to: Turbocharger .
    2. Refer to: Cooling Fan Stator .
    3. Refer to: Air Conditioning (A/C) Compressor - 6.7L Power Stroke Diesel .

  3. Install Special Service Tool: 303-1518 Bracket, Engine Removal.

    Torque: 41 lb.ft (55 Nm)

    GFD202517Courtesy of FORD MOTOR COMPANY

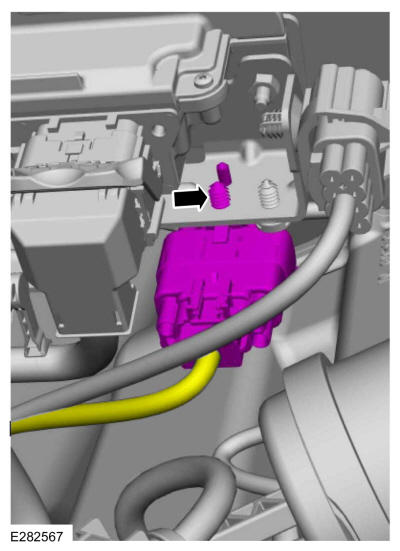

  4. Disconnect and position aside the wire harness.
    GFD202518Courtesy of FORD MOTOR COMPANY
  5. NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage.

    Loosen the transmission support insulator nuts.

    GFD202519Courtesy of FORD MOTOR COMPANY
  6. NOTE: Failure to replace the engine mount cross bolts may result in engine mount damage.

    Remove and discard the RH engine mount cross bolt.

    GFD202520Courtesy of FORD MOTOR COMPANY
  7. NOTE: Failure to replace the engine mount cross bolts may result in engine mount damage.

    Remove and discard the LH engine mount cross bolt.

    GFD202521Courtesy of FORD MOTOR COMPANY

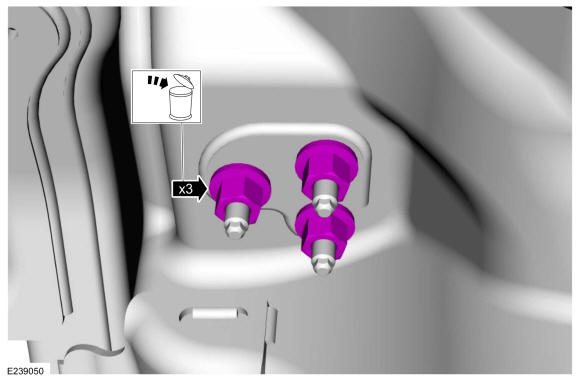

  8. NOTE: Failure to replace the engine mount nuts may result in engine mount damage.

    Remove and discard the nuts for the RH engine mount.

    GFD202534Courtesy of FORD MOTOR COMPANY

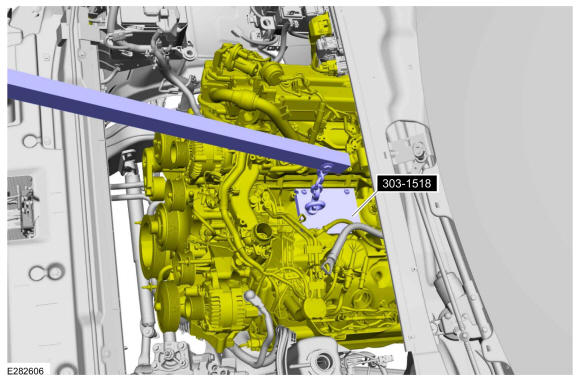

    • NOTE: Use care not to damage the PCM and wire harness on the RH side when raising the engine.

      Using a floor crane and the special tool, raise the engine 2 in (51 mm). Use Special Service Tool: 303-1518 Bracket, Engine Removal. Use the General Equipment: Floor Crane

    GFD202523Courtesy of FORD MOTOR COMPANY

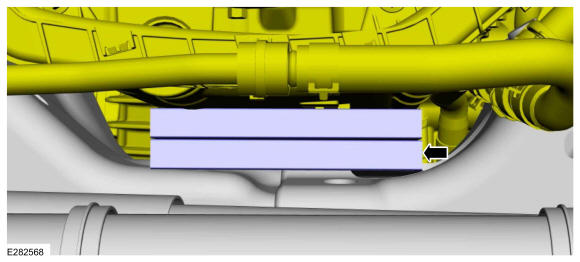

  10. Position wooden blocks between the frame and engine for added safety. Use the General Equipment: Wooden Block
    GFD202524Courtesy of FORD MOTOR COMPANY

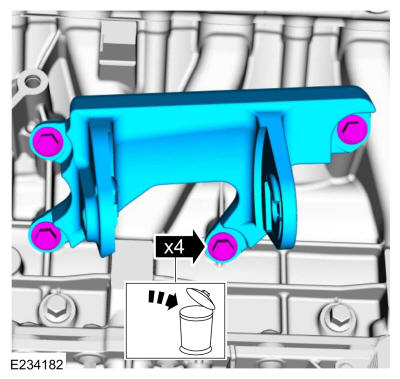

  11. NOTE: The engine mount bracket needs to be removed in order to remove the engine mount.

    • Remove the bolts and the RH engine mount bracket.

    • Discard the bolts.

    GFD202525Courtesy of FORD MOTOR COMPANY

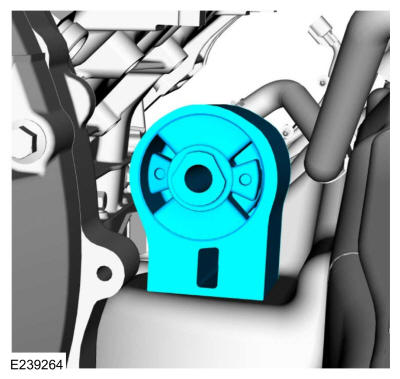

  12. Remove the RH engine mount.
GFD202535Courtesy of FORD MOTOR COMPANY
