Engine Mount LH: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install the LH engine mount.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the engine mount bracket bolts more than 90 degrees after initial torque or damage to the bolts may occur.

NOTE: Clean the engine mount mating surfaces of any dirt or foreign material prior to installation. Failure to follow these instructions may result in engine mount bracket or engine mount damage.

NOTE: Place a visible mark on the engine mount bracket and bracket bolts. Turning the bolt 1 flat of the bolt head is equal to 60 degrees.

NOTE: Verify that the engine mount bracket bushing is position out prior to installing the engine mount bracket.

Install the LH engine mount bracket and the new bolts.

Torque:

Stage 1: 41 lb.ft (55 Nm)

Stage 2: 60 °

Courtesy of FORD MOTOR COMPANY
Remove the wooden blocks. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
- NOTE: The engine mount may have to be adjusted during the lowering of the engine.

  Using the floor crane and the special tool, lower the engine. Use Special Service Tool: 303-1518 Bracket, Engine Removal. Use the General Equipment: Floor Crane
Courtesy of FORD MOTOR COMPANY
NOTE: Failure to replace the engine mount cross bolts may result in engine mount damage.

NOTE: Only use hand tools when installing the engine mount cross bolts or damage to the engine mount cross bolts may occur.

Install the LH engine mount cross bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to replace the engine mount cross bolts may result in engine mount damage.

NOTE: Only use hand tools when installing the engine mount cross bolts or damage to the engine mount cross bolts may occur.

Install the RH engine mount cross bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
- NOTE: The engine mount have to be adjusted during the lowering of the engine.

  Using the floor crane, raise the engine as needed to get the required lift to equalize the engine mounts. Use the General Equipment: Floor Crane
- Lower the engine and remove the floor crane.
NOTE: Failure to replace the engine mount nuts may result in engine mount damage.

NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount may occur.

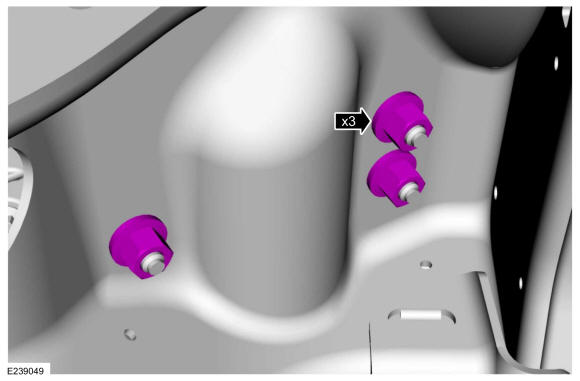

Install the LH engine mount nuts.

Torque: 148 lb.ft (200 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage.

Remove and discard the transmission support insulator nuts.

Courtesy of FORD MOTOR COMPANY
Tighten the transmission support insulator stud(s).
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage.

NOTE: Only use hand tools when installing the transmission support insulator nuts or damage to the transmission support insulator may occur.

Install the new transmission support insulator nuts.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Position back and connect the wire harness.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1518 Bracket, Engine Removal.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Oil Cooler .
2. Refer to: Cooling Fan Stator .
3. Refer to: Turbocharger .
