Engine Front Cover: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material crated while cleaning gasket surfaces that enter the oil passages, coolant passages or the oil pan, may cause engine failure.
  1. Remove the following items:

    1. Refer to: Upper Oil Pan .
    2. Refer to: Cooling Module .

  2. Disconnect the coolant hose retainer.
    GFD202498Courtesy of FORD MOTOR COMPANY
  3. Remove the nuts and the cooling fan stator.
    GFD202499Courtesy of FORD MOTOR COMPANY
  4. Remove the following items:

    1. Refer to: Cooling Fan .
    2. Refer to: Accessory Drive Belt .
    3. Refer to: Accessory Drive Belt Tensioner .
    4. Refer to: Cooling Fan Drive Assembly .
    5. Refer to: Brake Vacuum Pump .

  5. Remove the engine wire harness bolt and the ground wire bolt. Position aside the wire harness.
    GFD202500Courtesy of FORD MOTOR COMPANY
  6. Disconnect the A/C electrical connector and the retainers.
    GFD202501Courtesy of FORD MOTOR COMPANY

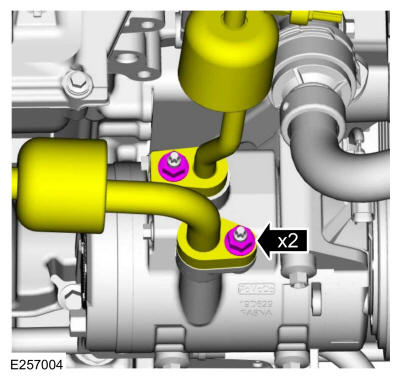

  7. NOTE: Make sure that all openings are sealed.

    Remove the nuts and disconnect the A/C inlet and outlet lines.

    GFD202502Courtesy of FORD MOTOR COMPANY

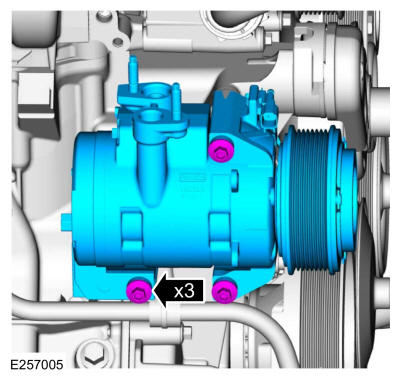

  8. Remove the bolts and the A/C compressor.
    GFD202503Courtesy of FORD MOTOR COMPANY

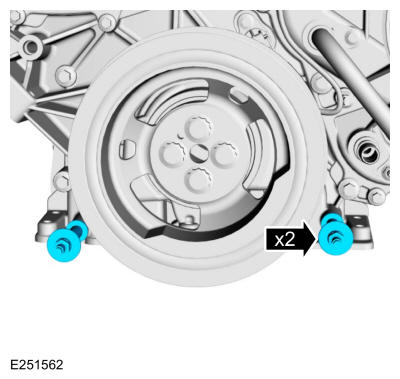

  9. Remove the stator standoffs.
    GFD202504Courtesy of FORD MOTOR COMPANY

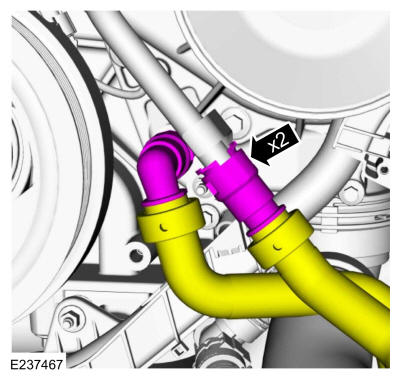

  10. Disconnect the transmission cooler coolant hoses.
    GFD202455Courtesy of FORD MOTOR COMPANY

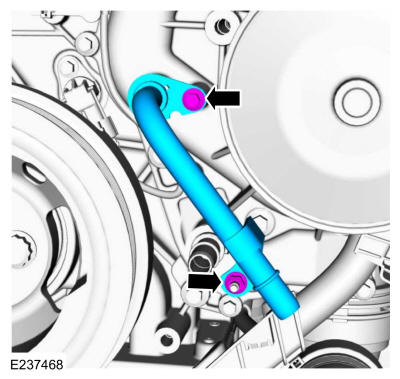

  11. Remove the nut, bolt and the transmission oil cooler coolant tube.
    GFD202456Courtesy of FORD MOTOR COMPANY

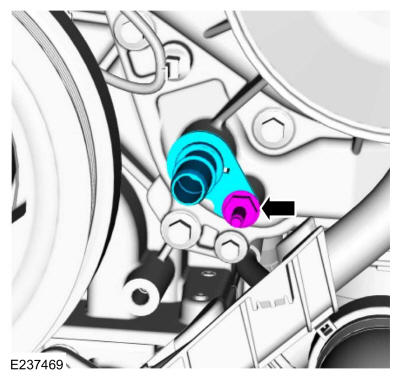

  12. Remove the stud bolt and the transmission oil cooler coolant tube.
    GFD202457Courtesy of FORD MOTOR COMPANY
  13. NOTE: Only one tube shown.

    Remove and discard the transmission oil cooler coolant tube O-rings.

    GFD202458Courtesy of FORD MOTOR COMPANY

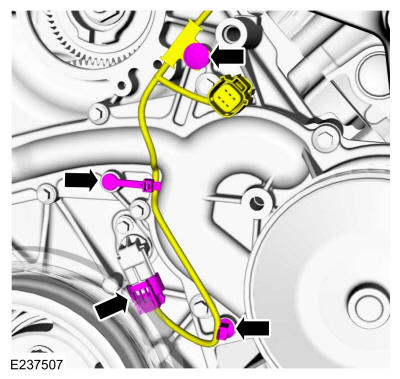

  14. Disconnect the CMP sensor electrical connector and the retainers.
    GFD202505Courtesy of FORD MOTOR COMPANY
  15. Remove the retainer from the power steering line bracket.
    GFD202475Courtesy of FORD MOTOR COMPANY

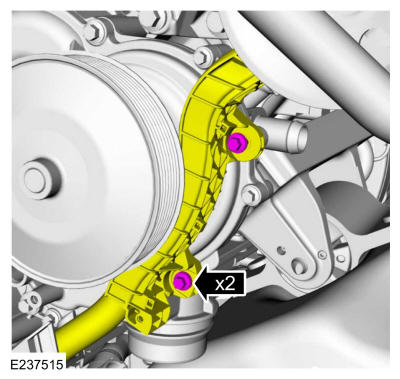

  16. Remove the bolts and position out the battery wire harness.
    GFD202506Courtesy of FORD MOTOR COMPANY

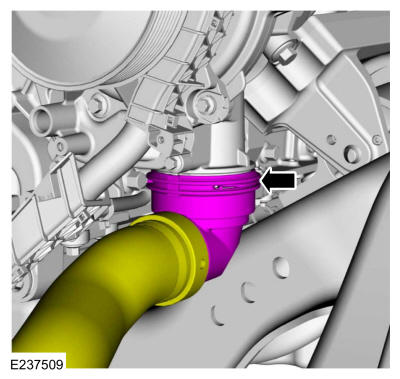

  17. Remove the clip and position aside the lower radiator hose.
    GFD202507Courtesy of FORD MOTOR COMPANY

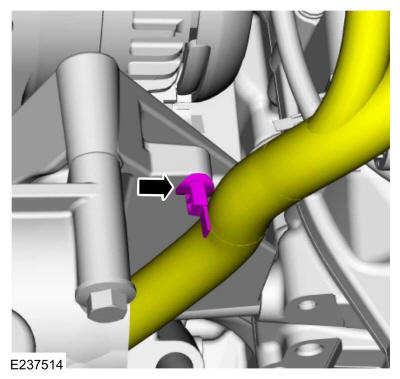

  18. Disconnect the battery wire harness from the bracket.
    GFD202508Courtesy of FORD MOTOR COMPANY

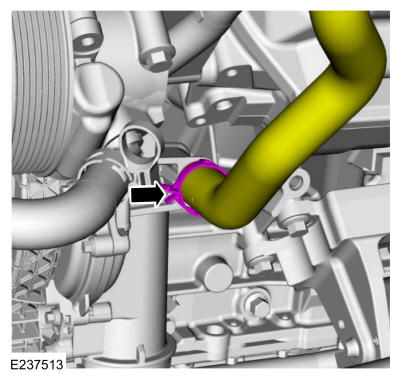

  19. Disconnect the coolant engine fill hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD202509Courtesy of FORD MOTOR COMPANY
  20. Refer to: Crankshaft Front Seal .

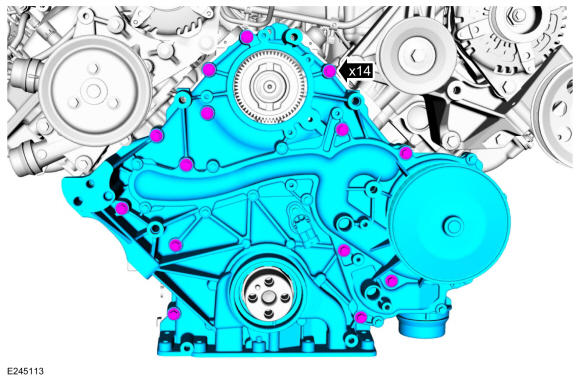

  21. NOTE: Use care when removing the engine front cover not to scratch the crankshaft sealing surface.
    NOTE: Mark the location of the engine front cover bolts prior to removing them.

    • Remove the engine front cover bolts.

    • Remove the engine front cover.

    GFD202510Courtesy of FORD MOTOR COMPANY

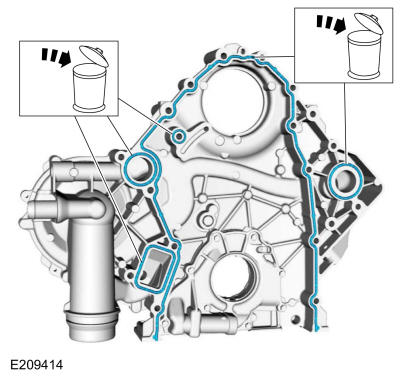

  22. Remove and discard the engine front cover gaskets.
    GFD202511Courtesy of FORD MOTOR COMPANY
  23. Make sure the mating surfaces are clean and free of foreign material.

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
