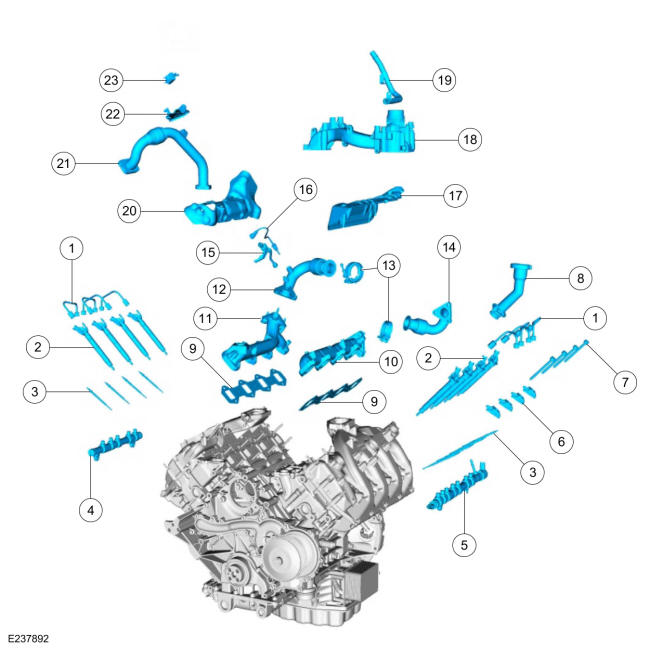

Exploded View Of Upper Engine View
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9A337 | Fuel injector supply tube (8 required) |
| 2 | 9E527 | Fuel injector (8 required) |
| 3 | 12A342 | Glow plug (8 required) |
| 4 | 9D280 | RH (right hand) fuel rail |
| 5 | 9D280 | LH (left hand) fuel rail |
| 6 | 9C334 | Fuel injector retainer clamp (8 required) |
| 7 | 00812 | Fuel injector retainer clamp bolt (8 required) |
| 8 | 6766 | Oil fill pipe |
| 9 | 9448 | Exhaust manifold gasket (2 required) |
| 10 | 9430 | LH exhaust manifold |
| 11 | 9430 | RH exhaust manifold |
| 12 | 9G437 | RH turbocharger inlet pipe |
| 13 | 8287 | Turbocharger inlet pipe clamp (2 required) |
| 14 | 9G437 | LH turbocharger inlet pipe |
| 15 | 9F459 | EGR EP (exhaust pressure) tube assembly |
| 16 | 12B591 | EGRT sensor |
| 17 | 9Y427 | LH exhaust manifold heat shield |
| 18 | 8C368 | Engine coolant crossover assembly |
| 19 | 18696 | Heater water inlet tube |
| 20 | 9A462 | RH exhaust manifold heat shield |
