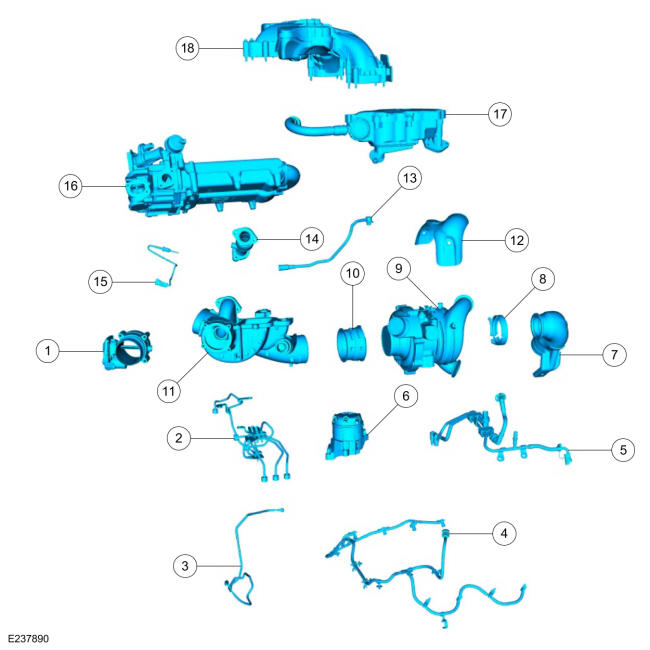

Exploded View Of Intake Manifolds and Turbocharger
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9E926 | TB (throttle body) |
| 2 | 9E964 | Fuel rail supply tube assembly |
| 3 | 9D430 | Vacuum hose connector assembly |
| 4 | 9K022 | Fuel injector return hose assembly |
| 5 | 9J280 | Fuel injection pump supply tube assembly |
| 6 | 9N184 | Secondary fuel filter |
| 7 | 6N646 | Turbocharger downpipe |
| 8 | 8287 | Turbocharger downpipe clamp |
| 9 | 6K682 | Turbocharger |
| 10 | 9B613 | Turbocharger inlet hose |
| 11 | 9424 | Lower intake manifold |
| 12 | 9G478 | Turbocharger heat shield |
| 13 | 9U469 | Turbocharger coolant outlet tube |
| 14 | 9H449 | EGR (exhaust gas recirculation) cooler outlet pipe |
| 15 | 12B591 | EGRT (exhaust gas recirculation temperature) sensor |
| 16 | 9F464 | EGR cooler assembly |
| 17 | 6A785 | Crankcase vent oil separator |
| 18 | 9424 | Upper intake manifold |
