Rear Parking Aid Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview
.

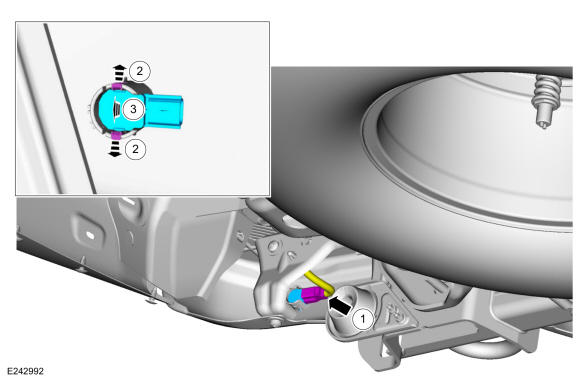

Inner rear parking aid sensors
-
NOTE: On both sides.
Remove the inner rear parking aid sensor.
- Disconnect the inner rear parking aid sensor electrical connector.
- Release the tabs.
- Slide the inner rear parking aid sensor out of the bracket.

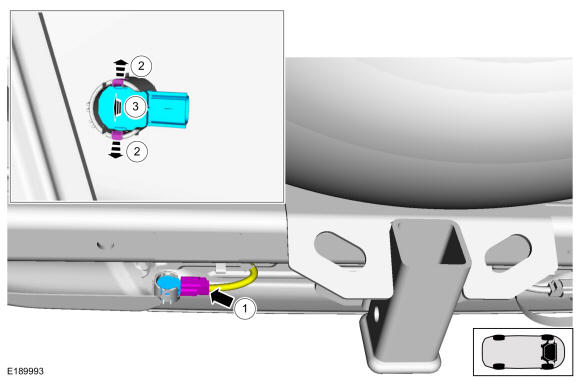

Outer rear parking aid sensors
- Remove the muffler and tailpipe assembly. Refer to: Muffler and Tailpipe .
-
NOTE: On both sides.
Remove the outer rear parking aid sensor.
- Disconnect the outer rear parking aid sensor electrical connector.
- Release the tabs.
- Slide the outer rear parking aid sensor out of the bracket.
