Section 364 (Information And Entertainment System - General Information - Vehicles Without: Sync)
>>
Description And Operation
>>
Information and Entertainment System - System Operation and Component Description
>>

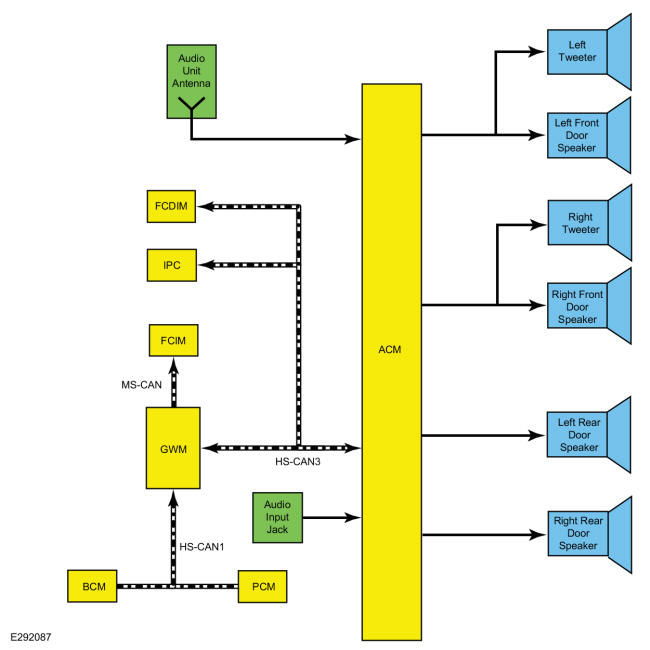

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The system diagrams includes all component options. Some components may not be equipped on the vehicle.
Courtesy of FORD MOTOR COMPANY
